30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump
30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump
30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump
30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump
30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump
30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump
30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump
30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump
30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump
30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump
30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump
30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump
30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump
30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump
30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump
30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump
30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump
30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump
30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump
30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump
Specifications
Brand Name :
XDEM
Model Number :
RM-15 RM-20 RM-25 RM-30 RM-40
Certification :
CE ISO9001
Place of Origin :
Henan,China
MOQ :
1set
Price :
USD325-3479
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
50set per months
Delivery Time :
15-25days
Concrete machinery type :
drag pump
Concrete maximum outlet pressure :
10-15Mpa
Motor Power :
30kw
Rated feed capacity :
0.3m3
Maximum particle size of aggregate :
10-30mm
Max. horizontal conveying distance :
350M
Theoretical delivery volume of concrete :
18m3/h
Total Weight :
1200KG
Unloading method :
hydraulic
Core Components :
Motor, Pump, Gearbox, Engine
Max. vertical conveying distance :
120M
Description

30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump

Specifications
Product Information
RM-15

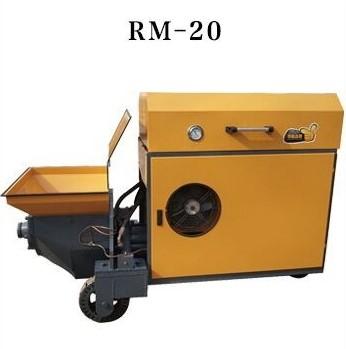

RM-20
RM-25
RM-30
RM-40
RM-50
Maximum theoretical delivery volume
10-12 CBM
15-18CBM
20CBM
25CBM
35CBM
45CBM
Maximum outlet pressure
10-15Mpa
10-15Mpa
10-15Mpa
12-15Mpa
12-25Mpa
12-25Mpa
Maximum particle size of aggregate
≤20mm
≤20mm
≤10-30mm
≤30mm
≤30-40mm
≤40mm
Bore*diameter
Φ120*360mm
Φ120*500mm
Φ140*600mm
Φ140*1000mm
Φ160-1200mm
Φ200-1100mm
Diameter of delivery pipe
Φ63/80/ 100mm
Φ63/80/ 100mm
Φ80/ 100mm
Φ80/ 100mm
Φ100/ 125mm
Φ125mm
Motor power
15KW
18.5KW
30KW
37KW
45KW
55KW
Dimensions(mm)
1 550*750* 1200
1980*750*1350
3000*1100*1300
3680*1450*1550
3980*1600*1580
4200*1600*1680
Host weight
580KG
800KG
1200KG
1850KG
2800KG
3200KG
Horizontal maximum theoretical conveying distance
60M
150M
180M
280M
350M
350M
Vertical maximum theoretical conveying distance
30M
30M
80M
100M
120M
120M
30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag PumpConcrete trailer pump is also called as concrete pump, which is a mechanical machine that is used to convey and pour concrete at construction sites. Generally speaking, concrete trailer pumps are divided into diesel and electric concrete pump trailer by its original motivation. Trailer pumps have the characteristics of long conveying distance, high productivity, and high transporting speed, which made it more and more welcomed among construction projects.30kw XDEM Concrete Delivery Pump 10 - 45 Cubic Meters Drag Pump
