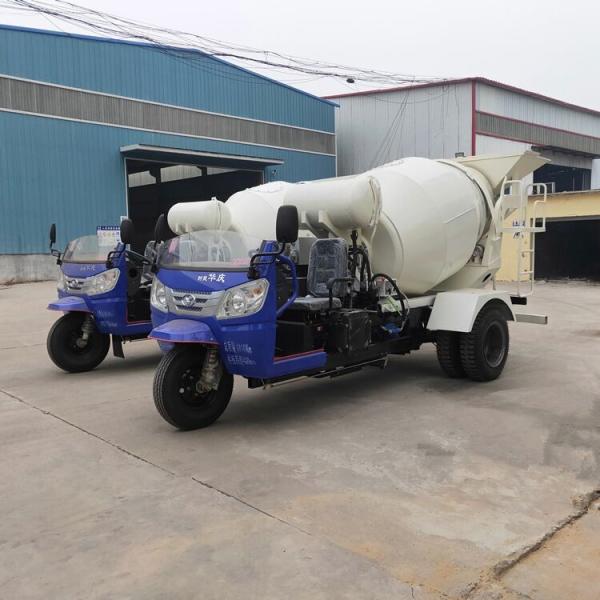

Agricultural Three Wheeled Concrete Mixer Truck 1.5 Cubic Meters 20 Mpa
Agricultural Three Wheeled Concrete Mixer Truck 1.5 Cubic Meters 20 Mpa
Agricultural Three Wheeled Concrete Mixer Truck 1.5 Cubic Meters 20 Mpa
Agricultural Three Wheeled Concrete Mixer Truck 1.5 Cubic Meters 20 Mpa
Agricultural Three Wheeled Concrete Mixer Truck 1.5 Cubic Meters 20 Mpa
Agricultural Three Wheeled Concrete Mixer Truck 1.5 Cubic Meters 20 Mpa
Agricultural Three Wheeled Concrete Mixer Truck 1.5 Cubic Meters 20 Mpa
Agricultural Three Wheeled Concrete Mixer Truck 1.5 Cubic Meters 20 Mpa
Agricultural Three Wheeled Concrete Mixer Truck 1.5 Cubic Meters 20 Mpa
Agricultural Three Wheeled Concrete Mixer Truck 1.5 Cubic Meters 20 Mpa
Agricultural Three Wheeled Concrete Mixer Truck 1.5 Cubic Meters 20 Mpa
Agricultural Three Wheeled Concrete Mixer Truck 1.5 Cubic Meters 20 Mpa
Specifications
Brand Name :
XDEM
Model Number :
SD-Y33
Certification :
CE ISO9001
Place of Origin :
Henan,China
MOQ :
1set
Price :
USD6000-7000
Payment Terms :
L/C, T/T
Supply Ability :
50set per month
Delivery Time :
10-22days
Rated discharge capacity :
2 (m3)
Concrete Machinery Type :
Concrete mixer truck
Concrete maximum outlet pressure :
20 (Mpa)
Unloading method :
Automatic
Maximum particle size of aggregate :
10 (mm)
Theoretical delivery volume of concrete :
10 (m3/h)
Weight :
4000 kg
Power :
75KW
Rated feed capacity :
2 (m3)
Hopper lifting speed :
5 (m/min)
Motor Power :
75 (kw)
stirring power :
75 (kw)
Dimension(L*W*H) :
5500*2000*3000mm
Description

Agricultural Three Wheeled Concrete Mixer Truck 1.5 Cubic Meters 20 Mpa

It is mainly composed of a mixing drum and its auxiliary supporting parts. The mixing drum is a concrete loading container. It is made of wear-resistant thin steel plate. In order to automatically load and unload concrete, its inner wall is welded with a special-shaped spiral blade. When rotating, the concrete moves along the spiral direction of the blade, and is mixed and stirred during the continuous lifting and turning. During the feeding and transportation process, the mixing drum rotates forward, and the concrete moves inward along the blades. When discharging, the mixing drum reverses, and the concrete is discharged outward along the blades. The rotation of the mixing drum is completed by a hydraulic drive.

Chassis parameters of agricultural three-wheeled mixer truck
Vehicle name
Agricultural tricycle mixer
Wheelbase
1800
engine
Changchai 28 horsepower
Displacement (ml)
1596
Dimensions
5000*1950*2350(mm)
Stirring volume
1.5 cubic mixer truck
Total mass
2500 (kg)
Number of springs
4/5/6
curb weight
1020(kg)
Rated quality
1500(kg)
number of axes
2 (two axes) (4*2)
Speed
50(km/h)
Gearbox
4th gear
Front and rear axles
rear axle
Number of tires
5
Tire specifications
750-16 tires
Front track
1030, 1029
Rear Track
1030/108
Three-wheel mixer truck configuration
Tank Material:
Made of wear-resistant Q345B steel with a thickness of 5mm, the wear resistance is 2.5-3 times that of 16Mn, shot blasting and rust prevention.
Blade material
5# thick alloy steel (add wear strips to improve service life)
Head material
6# thick double head alloy steel
Reducer
Chongqing Lefa | Strong bearing capacity and low failure rate
Hydraulic syste
Domestic hydraulic system
Tug:
Use large-sized tugs to improve the stability of tank operation
cooling system
Xinxiang radiator 18 liters
Feeding speed
Feeding speed m3/min≥3
Outlet speed
Material speed m3/min ≥ 2
Water supply system
180L increase water tank air pressure water supply
Operation method
Three-way operation on the left and right sides and the cab
Unloading range
180°up, down, left and right height adjustment
safety equipment
Install leakage receiving device
Features
The mixing drum is designed with a double logarithmic spiral curve, and the configuration ratio of the diversion hole and the mixing plate makes the mixing drum rotate smoothly, the concrete homogeneity is good, the feeding and discharging speed is fast, the residual rate is low, and the service life is long

Agricultural Three Wheeled Concrete Mixer Truck 1.5 Cubic Meters 20 MpaAgricultural Three Wheeled Concrete Mixer Truck 1.5 Cubic Meters 20 MpaAgricultural Three Wheeled Concrete Mixer Truck 1.5 Cubic Meters 20 MpaAgricultural Three Wheeled Concrete Mixer Truck 1.5 Cubic Meters 20 Mpa
