Specifications
Brand Name :
XDEM
Model Number :
JZM500 JZM1000 JZM1500 JZM2000
Certification :
CE ISO9001
Place of Origin :
Henan,China
MOQ :
1set
Price :
USD14000-15000
Payment Terms :
L/C, T/T
Supply Ability :
50set per month
Delivery Time :
15-22days
Dimension(L*W*H) :
13.2m X 3.2m X 6.3m
Cement weighing hopper :
500kg
Weigh hopper :
1200L
Types of concrete machinery :
Drum Type Mobile Mixing Plant
Power :
46kw
Weight :
13000 kg
Machine Type :
Batching machine
Productivity :
35m3/h - 120m3/h
Discharging height :
1600mm
Warranty :
1 Year
Machinery Test Report :
Provided
Description

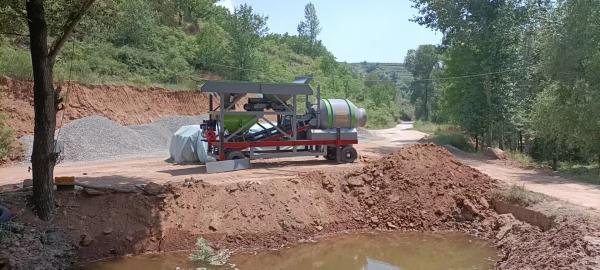

XDEM Mobile Concrete Batching Plant Drum Type Mixing 46kw

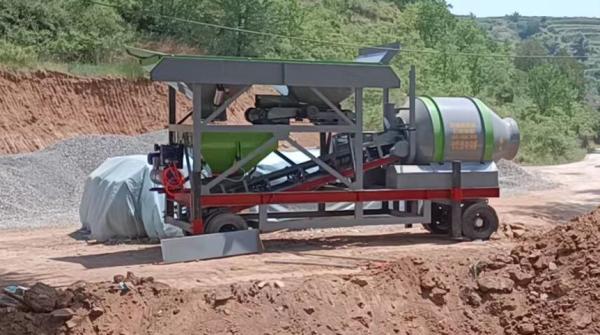

The drum type mixing plant is introduced in detail:
a. Tires: Double tires, strong pressure bearing capacity, strong stability, non-slip.
b. Support leg: Quick disassemble and assembly, stabilize machine during work, protect tires, and extend service life.
c. Universal Steering wheel: can be dragged by a medium-sized forklift directly, ensure the direction changing stably.
d. Storage hopper base: moved from the middle to the front generating two advantages:
a).remaining space can be used for the generator, control cabinet, water tank, tool box, etc.;
b). shorten the length of the feeding belt and the feeding time, thereby shortening the single mixing cycle by 10s, and improving the working efficiency.
e. Support steel: Increase the bearing capacity of the chassis and extend the service life. Compact structure: Movable completely,work on the supporting legs, No foundation needed.
XDEM Mobile Concrete Batching Plant Drum Type Mixing 46kw

Features

1.Rapid and easily to assemble and disassemble, conveniently to transport.All of the cable connection don’t need to be unloaded,
except the external equipment such as screw conveyor and cement silo, etc.
2.The performance of mixing is perfect. It adopts electric drum/twin-shaft concrete mixer to make the concrete mixing equally in shortest time.
3.For different mixture radios of dry concrete, semi-dry concrete, or plastic concrete, it can make the mixing well.
4.Top-quality configuration, high reliability, accurate measurement, easy operation.
XDEM Mobile Concrete Batching Plant Drum Type Mixing 46kw
Configuration
JZM750
JZM1000
JZM1500
JZM2000
Productivity
35 m³/h
50 m³/h
75 m³/h
120 m³/h
Weigh hopper
1200L
1600L
2400L
3200L
Total weight
13t
14t
14.5t
26t
Total Power
46kw
60kw
67kw
77.5kw
Horizontal cement silo (optional)
50T*1
50T*1
50T*1
70T*2
Screw conveyor
LSY219*6M
LSY273*8M
LSY273*8M
LSY273*8M
Weighing system
Cement weighing. water weighing.additive weighing
Pneumatic system Fully automatical control system

XDEM Mobile Concrete Batching Plant Drum Type Mixing 46kw

1. Mainframe chassis A cantilever-shaped mixer chassis, the chassis contains trailer truck traction pins and parking legs; the chassis is placed on the mixer, the measuring scale of cement and water admixtures; the surrounding inspection platforms, railings, etc. are attached.

2.control box Mobile concrete: soil mixing plant, the control room is used as the front support point of the whole station when it is working, and the control room is stowed away and stored in the space of the bracket during transportation; all its control lines do not need to be disassembled.XDEM Mobile Concrete Batching Plant Drum Type Mixing 46kwXDEM Mobile Concrete Batching Plant Drum Type Mixing 46kwXDEM Mobile Concrete Batching Plant Drum Type Mixing 46kwXDEM Mobile Concrete Batching Plant Drum Type Mixing 46kwXDEM Mobile Concrete Batching Plant Drum Type Mixing 46kw
