Specifications
Brand Name :
XDEM
Model Number :
LTLX0520
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD15000
Payment Terms :
T/T, L/C
Supply Ability :
100 sets per month
Delivery Time :
15 working days
Packaging Details :
Wooden packing
Name :
Portable Single Arm Milling Machine
Model :
LTDBX0520
Motor Power :
15KW
Voltage :
380V
Feed :
X/Y automatic
Description

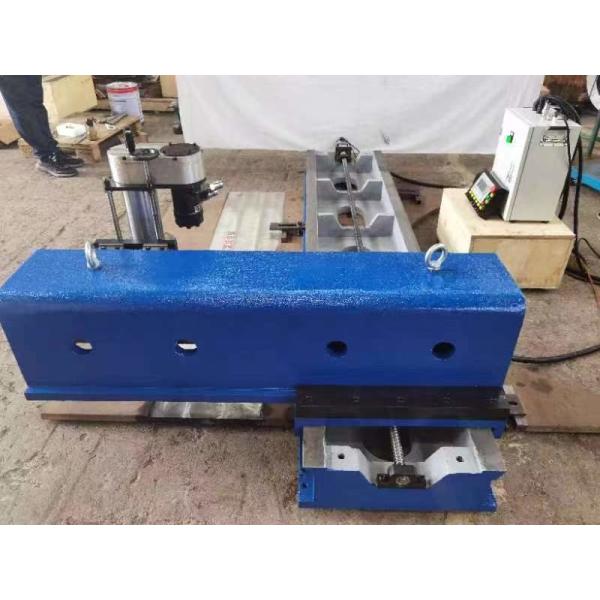

Portable Milling Machine
Portable milling machines use milling methods to process the surface of workpieces, including planar machining, drilling, etc. The milling machines produced by our company mainly consist of single rail milling machine, double rail milling machine, and gantry milling machine.
Application of portable milling machines:
1. Milling of flat, stepped, and square flange surfaces, as well as keyway and drilling processing.
2. The processing and repair of gaskets and bases for heat exchangers, pumps, motors, and lifting equipment are also used for various sliding track systems.
Equipment performance:
1. The entire equipment components adopt modular design, which can be quickly installed and disassembled on site, greatly improving installation efficiency.
2. Heavy duty guide rail with high precision ensures tool accuracy and flatness of the machining surface.
3. Wide processing range, with a maximum processing time of 3 meters for one positioning.
4. High machining accuracy, with a surface roughness of up to RA3.2.
5. Both X and Y directions are equipped with automatic tool feeders, which can feed in multiple gears and have automatic fast feed and retreat functions, The X and Y axes can achieve manual feed for easy positioning and tool alignment, while the Z axis can be manually fed.
6. The power system can choose hydraulic system and servo motor as power sources, with strong cutting power and high overall stability.
※ Equipped with a remote circuit control system, it is easy to operate and has a high safety factor.

Name
LTDBX0520 Portable Single Arm Milling Machine
Model
LTDBX0520
Motor Power
15KW
Voltage
380V
Feed method
X/Y main track automatic feed; Z vertical direction manual feed
Processing flatness
0.10mm
Roughness
3.2um
Fixed method
Bolt/Magnet
Cutter head
125mm
2-10m device
Can be customized
Other functions
Configurable intelligent digital display/NC system
Operation Method
automatic / manual
Package
Fumigation disinfection plywood packing box
