Specifications
Brand Name :
RACEBOW
Model Number :
MT-QL-704
Certification :
CE SGS TUV
Place of Origin :
CHINA
MOQ :
1
Price :
USD 4500-USD28000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Unit per Month
Delivery Time :
5-15 working days
Packaging Details :
Wooden Case/Wooden Frame
Product name: :
Farm Wheel Tractor
By wheel: :
4WD
Rated Power (HP): :
70HP
Drive Type: :
Gear Drive 8+2
Core Components: :
Motor, Pressure vessel, Gearbox, Engine, PLC, Bearing
Applicable :
Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Home Use, Retail, Construction works , Food & Beverage Shops
Color :
Blue, Red, Customized
Packing :
Wooden Case/Wooden Frame
Description

Agricultural Farm Tractor 70HP 4wd 4x4 Four Wheel Front Loader Trailer With Agricultural Machinery Parts

70HP tractor

TE series farm tractor

1. TE series tractor is designed for multiple light works, such as farming, transportation etc.
2. Equipped with Chinese famous diesel engine, It has the advantage of high cost efficiency
and fuel efficiency, low maintenance cost and good working performance.
3. Using central console and mature structure, the tractor is easy to control and maintain.
4. 8F+2R gearbox with easy operation and convenient maintenance;
5. Optional single/double action clutches for different needs and operation; Optional
Herringbone tires, paddy tires or other type of tires to meet your needs of working conditions.
6. Hydraulic power steering( 4WD) makes it easy to control and reduce the labor strength of operator.

Product Parameter
Model
704E
704B
Machine parameters
Type
4×4
4×4
Rated Traction( KN)
12
17
PTO Max Power (KW)
43.8
50
Dimensions(mm)
3560×1650×2450
3750×1820×2670
Wheelbase(mm)
1965
2050
Track(mm)
Front wheel(mm)
1150
1280
Rear wheel(mm)
1200-1360
1100-1390
Ground clearance(mm)
Minimum ground clearance(mm)
330
330
Minimum turning cricle radius
Use unilateral braking
2.85±0.20
3.8±0.30
Not unilateral braking
3.15±0.30
4.3±0.30
Minimum use quality
1880
2950
Gearbox
8F+8R Shuttle Shift
12F+12R Shuttle Shift
Steering System
Hydraulic steering gear
Drive Train
Clutch
Dual stage clutch
Double acting clutch
Working equipment
Maximum lifting force at 610mm(KN)
10.85
≥14.2
Suspension mechanism
Three-piont suspension type 1 or 2
Three-piont suspension type 1
PTO shaft
PTO Spedd(r/min)
540/760(option: 540/1000)
540/760(option: 540/1000)
Tire
Front wheel specifications
6.5-16/7.5-16/7.5-20
8.3-20/8.3-24/9.5-24
Rear wheel specifications
11.2-24/12.4-24/12.4-28
12.4-28/11-32/14.9-30
Engine
Type
Inline, 4 stroke, Water cooled
Inline, 4 stroke, Water cooled
Cylinder
4
4
Optional
Cabin
AC/Heater
Roll bar

Canopy

Perfusion volume
Radiater(L)
15
12
Fuel tank(L)
50
64
Engine oil pan(L)
5
7
Driveline oil (L)
20
28
Lifter(L)
9.5
11
Hydraulic steering oil (L)
0.7
0.8
Steering system oil (L)
15
20
This parameter table is for reference only, everything is based on actual products

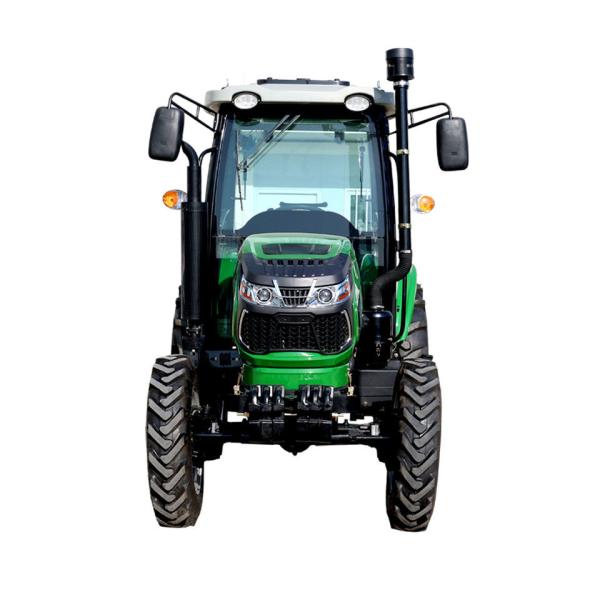

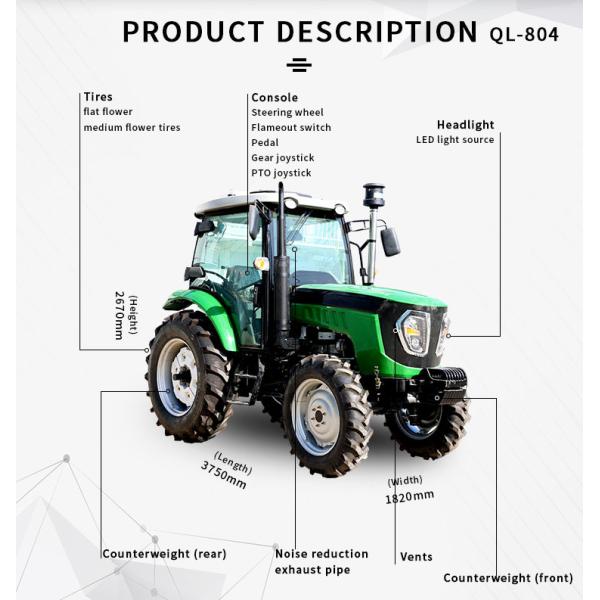

70HP Front Loader Trailer Four Wheel Tractor With Agricultural Machinery Parts

70HP Front Loader Trailer Four Wheel Tractor With Agricultural Machinery Parts

70HP Front Loader Trailer Four Wheel Tractor With Agricultural Machinery Parts

70HP Front Loader Trailer Four Wheel Tractor With Agricultural Machinery Parts

70HP Front Loader Trailer Four Wheel Tractor With Agricultural Machinery Parts

1. who are we?
We are based in Hubei, China, start from 2016,sell to Domestic Market(30.00%),

Africa(25.00%),Southeast Asia(18.00%),South America(15.00%),South Asia(7.00%),

Mid East(5.00%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Tractors,Tricycle,Truck,Farming Implements

4. why should you buy from us not from other suppliers?
We are professional manufacture.Our company now has over 600 employees, over 600 modern production equipment and multiple production lines, involving final assembly, electrophoretic painting, rear axle, carriage molding, welding, casting, machining, etc.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C;
