Specifications
Size :
Large
Type :
Multi-Span Agricultural Greenhouses
Cover Material :
Pc Sheet
Model Number :
Standard
Place of Origin :
Shandong, China, SHG
Brand Name :
Litai
Name :
PC polycarbonate sheet green houses
Application :
Vegetable Fruits Flowers
Color :
Customized Color
Ventilation :
Vents
Usage :
Flower Vegetable Growing
Length :
Customizable Size
Covering :
6mm,8mm PC sheet
Product name :
Galvanized Structure Greenhouse
Features :
Stable Structure
Packaging Details :
1. All the steel material is nude packing.
2. motor and electric machines are put in carton.
3. small steel parts are put in bag.
4. Glass is put in iron frame.
5. All the material is put in containers.
Port :
Qingdao
Supply Ability :
100000 Square Meter/Square Meters per Month
MOQ :
200 square meters
Price :
$18.00 - $38.00/square meters
Description
Product Description
Improve Ventilation in Multi-Span Agricultural Greenhouses with Rack and Pinion System

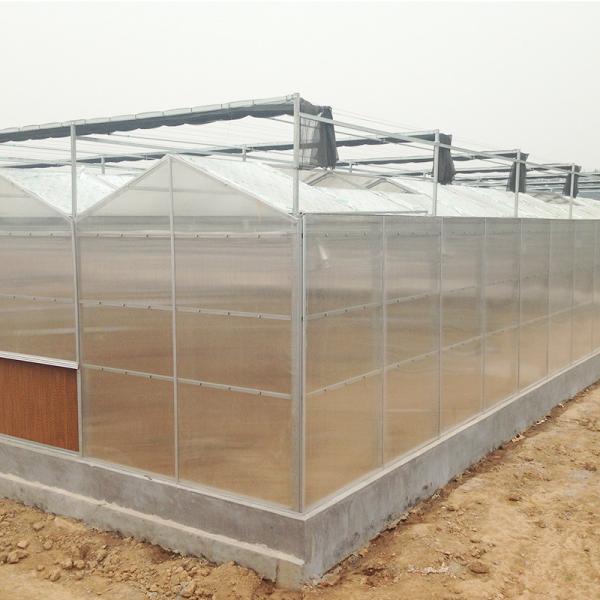

The polycarbonate (PC) greenhouse is preferred Venlo type (also can use circular arch type), using a multi span roof, with shape of modern, stable structure, beautiful form, smooth version, remarkable thermal insulation performance, moderate light transmission rate, many rainy grooves, large span, drainage volume, strong wind resistance ability, suitable for area of big wind and rainfall. PC greenhouse has good light transmittance, low heat conduction coefficient. The polycarbonate sheet, light, long service life, tensile strength, through simple steel structure it will be able to meet the requirements of anti-wind and snow, and it has long service life, beautiful appearance and can reduce the repeated construction and investment, so it is first choice currently instead of the plastic film greenhouse and glass greenhouse.


Advantage:


♥Its skeleton is made of hot-galvanizing steel,strong and durable and beautiful in overall.

♥The covering material is PC or glass. It has a good performance in the transmittance, sealing, insulation and ornamental.

♥One span and many pinnacles, small ridges,many rain cutters,large span.

♥Large light area, uniform illumination

♥Big inner space for operation, high utilization,good bandwagon effect.

Specification
Item
Specification
Span Width
9.6m / 10.8m /12m , can be customized
Section width
4.0m, 8.0m, can be customized
Gutter Height
4.0-6.0m, can be customized
Top Height
4.8m-6.8m, can be customized
Resistance to the wind load
0.6KN/㎡
Resistance to the snow load
0.5KN/㎡
Greenhouse constant load
15kg/㎡
Max row of rainfall
140mm/h
Optional system
Framework+covering+ventilation system+sunshade system+ cooling system+heating system+electric control system
Detailed Images
Improve Ventilation in Multi-Span Agricultural Greenhouses with Rack and Pinion System

Framework

Steel structure material is high quality carbon steel which is accordance with national standard. Steel parts and fasteners are processed according to "GB/T1912-2002 Technical Requirements and Test Methods of Hot-galvanized Layer for Metal Coating Steel Production". Inside and outside hot galvanized steel should meet the national standard (GB/T3091-93) requirements of quality products. Galvanized layer should have thickness uniformity, no burr, and the galvanized layer thickness is not less than 60um.

Covering System

Polycarbonate sheet


Thickness: 6mm,8mm or 10mm

Improve Ventilation in Multi-Span Agricultural Greenhouses with Rack and Pinion System
Improve Ventilation in Multi-Span Agricultural Greenhouses with Rack and Pinion System

Ventilation system

• Top windows


• Side windows

Sunshade system

• Shade cloth is manufactured from knitted polyethylene fabric that does not rot, mildew, or become brittle.
• Comes in 30% to 80% multiple shade densities to meet your specific application.
• Helps protects plants from direct sunlight.
• Offered in variety of sizes, our shade material is durable, offers superior ventilation, improves light diffusion, reflects heat and keeps greenhouses cooler.

Improve Ventilation in Multi-Span Agricultural Greenhouses with Rack and Pinion System
Improve Ventilation in Multi-Span Agricultural Greenhouses with Rack and Pinion System

Cooling system

• Keep your greenhouse cool with the proper circulation.

• To maintain plant health and livestock safety from overheating during the warm summer months.

• Put air cooling and circulation everywhere in greenhouse.

Heating system

Dual-use oil and gas burner (Italy imported)


The main body includes: control, chimney (6 meters),

Replenishment tank (stainless steel)


Improve Ventilation in Multi-Span Agricultural Greenhouses with Rack and Pinion System
Packing & Delivery
Improve Ventilation in Multi-Span Agricultural Greenhouses with Rack and Pinion System
Our Company
Improve Ventilation in Multi-Span Agricultural Greenhouses with Rack and Pinion System
Related Products

Please click these pics ↓

Improve Ventilation in Multi-Span Agricultural Greenhouses with Rack and Pinion System
Improve Ventilation in Multi-Span Agricultural Greenhouses with Rack and Pinion System
Improve Ventilation in Multi-Span Agricultural Greenhouses with Rack and Pinion System
FAQ

1. How long is the delivery time?
According to your greenhouse size and system, the delivery time is usually 10-60days.

2. How long is the warranty period?
Different parts have different warranty, usually the electric machine guarantee 1 year, the steel structure 5years, glass 1 year, sunshade net 2-3 years, etc.

3. Is your company foreign trade company or manufacturer?
We are manufacturer.

4. Can you supply sample?
Small parts can be supplied, but you should pay the express.

5. Can your company supply greenhouse design?
Our company can give greenhouse design according to your land and plan after deposit. And we can give simple drawing before signing contract.

6. How to install greenhouse ?
First we prepare the material and export.
After your customs clearing, we send 2-4 engineers or all workers to guide to install.
If you want to save money, we only send engineers, and you match local workers. If you think it is hard to do, we also can send engineers and workers to install for you.

7. When installing, what cost should we pay?
Our engineers and workers visas and round-trip tickets, their foods and accommodation, their communication.
