Specifications
Brand Name :
ZHLUN
Model Number :
ZL-RH323
Place of Origin :
Guangzhou, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 Pieces per Month
Delivery Time :
25 days
Packaging Details :
Packing: Wooden Box
Protection grade :
IP65
Standard interface :
RS232, CANopen
Application :
Industrial Product Line
Reading Distance :
30~130 mm
Power :
12V-36V
Cable length :
1.5 meter
Label moving speed :
≤3m/s
Function :
Information, Identification
Data Transmission Mode :
Serial
Size :
L148*W87*H40(mm)
L148*W87*H40(mm) :
410g
410g :
Carton/Wooden Box
Description

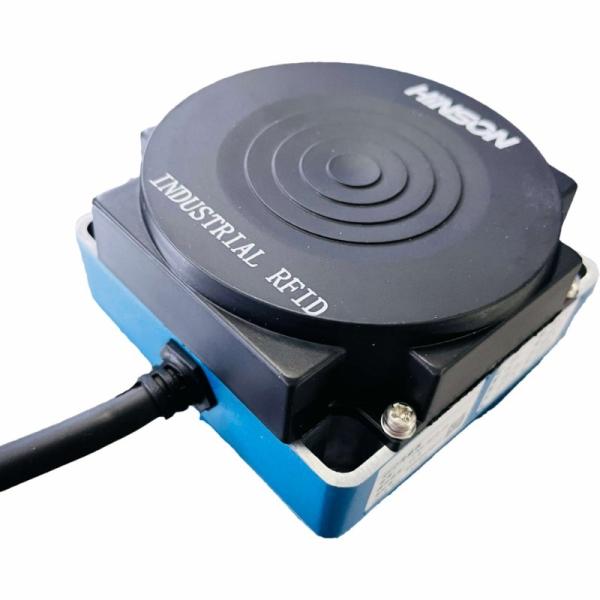

Agv RFID Land Marker Sensor RFID Reader for Automated Guided Vehicle

Radio Frequency Identification (RFID) is a type of automatic identification technology that uses wireless radio frequency to carry out non-contact two-way data communication, and uses radio frequency to read and write recording media (electronic tags or radio frequency cards). So as to achieve the purpose of identification and data exchange

Specification

Carrier frequency 13.56 MHz
Radio frequency standard ISO15693
Reading distance 0-130mm (related to label size and environment)
Read and write time

Read 4Byte data: 7ms Write 4Byte data: 14ms

Read 8Byte data: 9ms Write 8Byte data: 21ms

Allowable label moving speed ≤3m/s
Communication interface and protocol CANopen, Modbus-RTU (RS232)
Working voltage 12V-36V
Signal strength detection 0-15 level RSSI reader signal strength detection
Antenna Integrated antenna
Display prompt 5 LEDs
IP protection level IP65
Cable length 1.5 meters
Operating temperature ﹣10°-﹢50°
Environment humidity below 80% (non-condensing)
medium environment no corrosion, no combustible gas or dust, no radioactive material, no strong magnetic field, and no use in a vacuum environment

RFID Reader Land Marker Agv Safety Sensor IP65 For Automated Guided Vehicle

RFID Reader Land Marker Agv Safety Sensor IP65 For Automated Guided Vehicle

RFID Reader Land Marker Agv Safety Sensor IP65 For Automated Guided Vehicle

RFID Reader Land Marker Agv Safety Sensor IP65 For Automated Guided VehicleRFID Reader Land Marker Agv Safety Sensor IP65 For Automated Guided Vehicle

RFID Reader Land Marker Agv Safety Sensor IP65 For Automated Guided Vehicle

Guangzhou Wisdom Wheel Science Technology Ltd. founded 2018, we designs, manufactures and sells agv, driving wheel assembly, DC/AC motors, encoder, gear reducer, controller, caster wheel, PU wheel, motor in wheel units and all over the world.

ZHLUN continues to bring excellent products, technological innovation and ease of customizing to the automated equipment.

The company has its own factory, is 1000 sq. feet, and employs 40 people. The company is certified to ISO9001:2015.

The core to ZHLUN's growth is the constant dedication to the pursuit of full customer satisfaction. They have a strong presence in domestic and international markets, as well as, great production flexibility. ZHLUN has come to be recognized as one of the biggest suppliers of electric drive.

Continued investment in the most modern machinery has further increased and developed the quality and flexibility of each product.

Today, ZHLUN can quickly design and produce engines and special parts request from customers.

ZHLUN's product are used in a myriad of application, including but not limited to: Forklifts, AGV, Aerial Platforms, Airport Machines, Agricultural Machines, Hydraulic Applications, Floor Scrubbers, Sweepers, Wind Energy, Marine, and in the field of Medical Devices.

All prototypes are tested for extended periods of time to verify the quality and the duration will work perfectly before sending production parts to customers. Due diligence is paramount to the satisfaction of our customers.
