1000kg Agv Direct Drive Steering Wheel With Dc Brushless Motor Driver
1000kg Agv Direct Drive Steering Wheel With Dc Brushless Motor Driver
1000kg Agv Direct Drive Steering Wheel With Dc Brushless Motor Driver
1000kg Agv Direct Drive Steering Wheel With Dc Brushless Motor Driver
1000kg Agv Direct Drive Steering Wheel With Dc Brushless Motor Driver
1000kg Agv Direct Drive Steering Wheel With Dc Brushless Motor Driver
Specifications
Brand Name :
ZHLUN
Model Number :
ZL-160
Certification :
ISO
Place of Origin :
China
MOQ :
1 pcs
Price :
$1900-2999
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 per month
Delivery Time :
30 days
Packaging Details :
Wooden box
Warranty :
1 Year
Machinery Test Report :
Provided
The Wheels Material :
Polyurethane or Rubber
Services :
support for custom
Load :
1000kg
speed :
20-200m/min
power :
customized
installation height :
160mm
Description

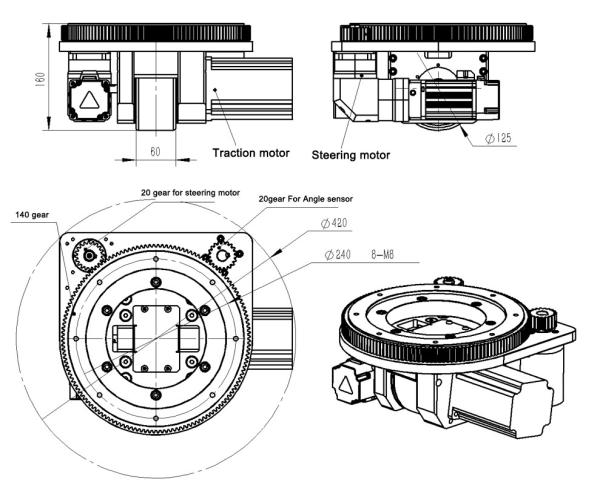

Agv Direct Drive Steering Wheel With Dc Brushless Motor Driver And Steering Wheel Pc For Agv Robot

Product Paramenters
Low steering wheel count parameter
Traction Motor
Speed Ratio
7-120I
Motor Type
Servo/Brushless
Wheel Diameter
125mm
Rated Power
100-1000w
Fastest Speed
20-200m/min
Rated Voltage
DC24/48,AC220
Maximum Load
800KG
Rated Speed
3000/Customizable RPM
Temperature
-10to+55℃
Rated torque
0.32-3.18N.m
Steering motor
Motor Type
Stepping Motor
Rated Power
50-200w
Rated Voltage
DC24/48,AC220
Rated Speed
3000RPM/Customizable
Rated Torque
0.16-0.64N.m
Reducer Speed Ratio
35-120I
Weight
About 30KG
Product Application
Product packaging and Transportation
Company Profile
Guangzhou Wisdom Wheel Science Technology LTD.
Guangzhou Wisdom Wheel Science Technology Ltd. is a high-tech enterprise integrating service research ,design, production,sales,service and system integration.with a number of independent intellectual property rights. According to application requirements, various types of AGV steering wheel drive assemblies with independent intellectual property rights have been developed, including heavy-duty, shock-absorbing. low and Mini ,differential steering drive wheels,etc.,which are suitable for various application fields; Based on the application, the company independently designed and developed heavy-duty AGV,heavy-duty unmanned flatbed truck, omnidirectional forklift, special assembly AGV, service robot, AGV intelligent parking and other products
China International Logistiscs Robot Exhibitions.
Asia International AGV Exhibition
Asia International Logistics Exhibition
Certifications
FAQ
Q: Can your company adjust the product according to the customer's situation?
A: Yes. We will send you the steering wheel order configuration table. Customers can fill in the relevant parameters according to their own situation. We can adjust the steering wheel parts according to customer needs
There are speed ratio, speed, walking motor, motor voltage, brake, etc., there are more detailed instructions in the product
parameter table, we welcome customization.

Q: Are you trading company or manufacturer?
A: We are manufacturer.

Q: What about your lead time?
A: It is up to the quantity and stocking.

Q: How about your after-sale service?
A: We can provide technical support via online communication. Within 24 hours technical support by email, calling or door-to-door service.
