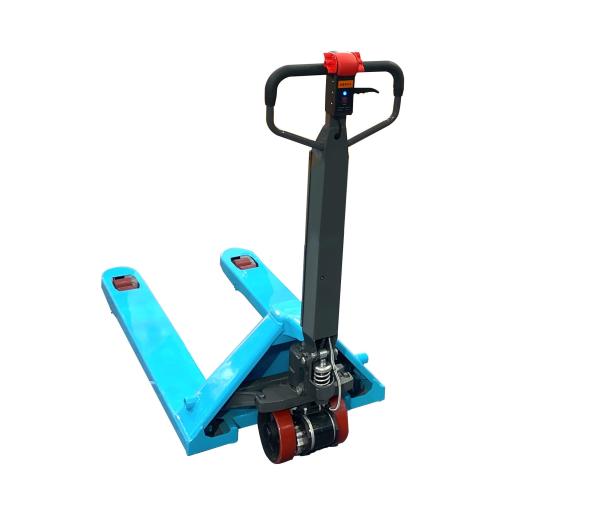

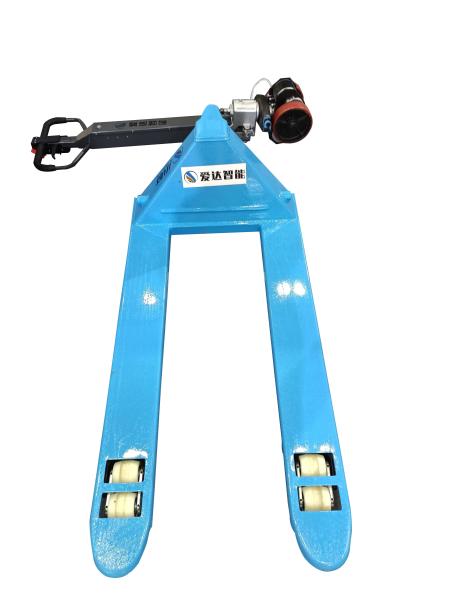

Semi Electric Hand Pallet Truck Parts Spares 2 T Li ion Hydraulic
Semi Electric Hand Pallet Truck Parts Spares 2 T Li ion Hydraulic
Semi Electric Hand Pallet Truck Parts Spares 2 T Li ion Hydraulic
Semi Electric Hand Pallet Truck Parts Spares 2 T Li ion Hydraulic
Semi Electric Hand Pallet Truck Parts Spares 2 T Li ion Hydraulic
Semi Electric Hand Pallet Truck Parts Spares 2 T Li ion Hydraulic
Semi Electric Hand Pallet Truck Parts Spares 2 T Li ion Hydraulic
Semi Electric Hand Pallet Truck Parts Spares 2 T Li ion Hydraulic
Specifications
Brand Name :
AIDA
Model Number :
XD-6106
Certification :
ISO,CE,EGS
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T,L/C
Supply Ability :
200 set/month
Delivery Time :
5-20 work days as per order volume
Packaging Details :
pallet packing for export
Model NO. :
XD-6106
Power :
Electric lithium battery
Overall dimension :
400*300*1250 mm
Lift Motor :
Hydraulic
Drive Motor :
800W
HS Code :
8431209000
Warranty :
one year
Type :
electric Pallet Truck
Material :
Steel
Load Capacity :
2T
Entry Type :
2-Way
Customization :
Available | Customized Request
Price :
Negotiable
Description

Tons Semi-electric Pallet Truck li-on pallet jack

Product Description


The compact semi-electric pallet truck, the pallet truck with lithium battery power driving and hydrauic lifting and lowering

Advantages

  • Compact design, small size and light weight.
  • It occupies a small area and can be carried by logistics drivers in their vehicles.
  • Lithium battery, large capacity, fast charging
  • Multifunctional handle with turtle speed function
  • Strong frame, fork thickness 4mm
  • Installed with integrated power handle kit, can be disassemble for replacement and maintenance easily

Technical Parameters

Feature
Brand AIDA Unit
Model XD-6105
Power Electric
Operation way Walkie
Load capacity 2000 kg
load centre distance 600 mm
Size and Weight
Self weight 90 kg
Overall size 1550*550*1270 mm
Wheel
Wheel type(frnt/rear) PU
Driving wheel φ190×70 mm
Bearing wheel φ80×70 mm
Dimension
Min.ground clearance 85 mm
Max.ground clearance 200 mm
Fork length 685 mm
Fork width 1150 mm
Overall height 1200 mm
Min.turning radius 1250 mm
Performance
Driving speed laden/unladen 4.8/5.2 km/h
Gradeability loaded/unladen 3/7 %
Electrical configuration
Driving motor 0.8 KW
Battery Li 48V/15Ah V/Ah


Product Structure Details

Semi Electric Hand Pallet Truck Parts Spares 2 T Li ion Hydraulic

Semi Electric Hand Pallet Truck Parts Spares 2 T Li ion Hydraulic
