Specifications

Brand Name :

CSXT

Model Number :

CSXT-FR1

Certification :

CE ROHS

Place of Origin :

Guangdong, China

MOQ :

1-49 Pieces

Price :

$450.00

Supply Ability :

100+PCS+5days

Packaging Details :

L400*W320*H280 mm

Resolution :

1280 x 960, 1280*800

Special Features :

Motion Detection, Night Vision, Time & Attendance

Data Storage Options :

Cloud

Function :

Face Detection with thousand local face database

Product Name :

Face Recognition Body Temperature Detection Terminal

Type :

For semi-outdoor or pure outdoor use

Camera :

4.0mm RGB + IR

Application :

Security Access Control Management

Communication :

USB

Color :

Silver+Black

Certificate :

CE FCC ROHS

Warranty :

2 Years

Selling Units :

Single item

Single package size :

38X13.5X8.5 cm

Single gross weight :

1.700 kg

Package Type :

We will pack: 1. Wrap each item separately 2. Use a strong box 3. Create a double wall at the bottom of the box 4. Cushion your items well 5. Create another cardboard double wall on top 6. Close the parcel carefully 7. Seal the parcel with st

Description

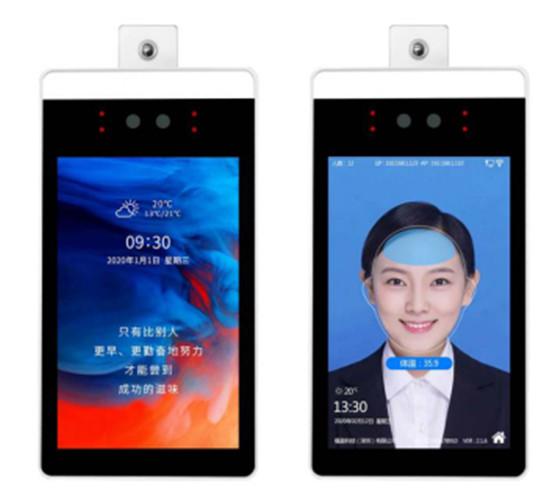

Face Recognition Body Temperature Detection Terminal

(8-inch ultra-thin) (Model No:CSXT-FR1)

Product Introduce

Product presentation

The integrative terminal of face recognition uses the world's leading face detection and recognition algorithm, runs it in high performance embedded platform, coordinates 200W pixel camera, realizes face detection, face tracking, and face recognition. And it can present the corresponding feedback on the screen. the farthest can recognize the human face as far as 1.5 meters, and face tracking and detection takes about 20ms. Face feature extraction takes about 300ms; face comparison takes about 0.1ms.

And it has good robustness to light and wear glasses and so on. This product can be equipped with RFID card module, so the system can be realize to use card and face recognition. This product supports a variety of hardware functional interfaces (including: HDMI high-definition output, serial port input/output, network interface/ Wi-Fi access); It has a complete software interface (including: device management, personnel/photo management, record view, etc.).

At the same time, this product can connect with the company developed a variety of applications, such as: attendance system, access control system, visiting system, real name certification.

Application scene

Suitable for office area, gate passage, hotel, office building, school and other places where face recognition gate is needed.

Product Features

1. Humanization sleek & smart design

2. Face recognition access control equipment can quickly detect body temperature,which is more efficient and safe. The detection distance of 0.5-1.5 meters avoids the risk of personal contact and transmission

1. Fast identification (attended)

2. Reject electronic screen (recommended by gate, attendance, etc.)

3. Refuse electronic screen and most paper photos (used in finance and other industries)

4. Refuse electronic screen and paper photos (used in military bases). The device compares 108 positioning points of human face. The higher the level, the more positioning points are compared, the longer the comparison time will be, and the accuracy will be improved

Features&Advantages

Support Real Time Human Body Detection .

Using Linux operating system, better system stability.

Face recognition algorithm to accurately recognize faces, face recognition time is less than 0.5s.

Support free switching 1:N/1:1 (IC card, QR code, ID card) recognition mode 1: N with 0.8s comparison efficiency.

Support for AD file playback.

Support PIR human body sensing wake-up function.

Support TF card storage, pictures are stored continuously for 1 year, video is stored continuously for 7 days.

Support 30000+ face matching library and 500,000 face recognition records.

Rich interface protocol, support SDK and HTTP protocol under various platforms such as Windows/Linux.

Support tracking of personnel movements under strong backlight conditions.

The host supports an external ID card reader (For Chinese ID card).

The host supports the Wiegand interface to connect with the personnel gate and the access control host, and acts as a face recognition reader.

Product Specification

CPU:	Hi3516DV300
Operation system:	Windows / LINUX, RAM 8G
Panel:	8"HD, Resolution 1920*1080
Measuring range:	30-50℃
Face database capacity:	Max support 30,000 faces
Local Storage:	5 million records storage capacity
Recognition Rate:	99.99%
Measurement accuracy:	≤±0.3℃
Measurement time:	2S
Measurement distance:	0.5-1.5meters (Optimum distance 0.5-1meter)
Protection level:	IP65
Operating temperature:	-20℃～70℃
Packing list:	Complete machine 1, power adapter 1
Size:	24213525mm
