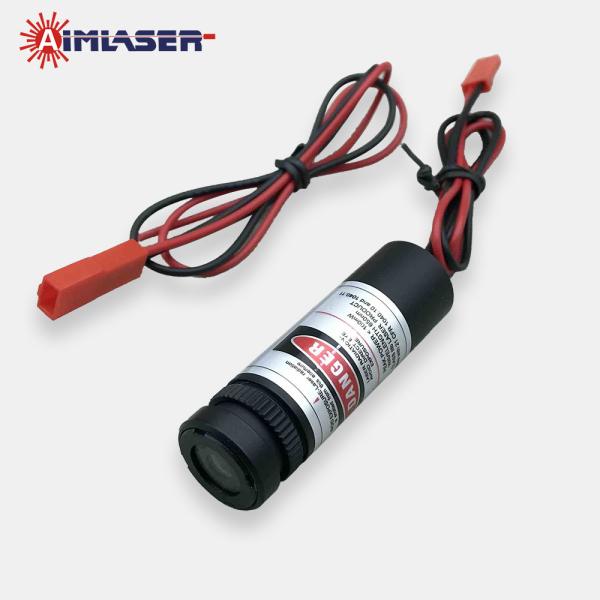

Uniform Distribution Line Laser Module 635nm 50mW 50um For Industrail Robotics Guidance
Uniform Distribution Line Laser Module 635nm 50mW 50um For Industrail Robotics Guidance
Uniform Distribution Line Laser Module 635nm 50mW 50um For Industrail Robotics Guidance
Uniform Distribution Line Laser Module 635nm 50mW 50um For Industrail Robotics Guidance
Specifications
Brand Name :
AIMLASER
Model Number :
AM635U50G2
Certification :
FDA, IEC
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
1000pcs/month
Delivery Time :
10-20 days
Packaging Details :
Anti-static bag, Carton
Product name :
Powell Lens Well-Distributed Line Laser Module
Wavelength :
635nm
Line Width :
≤50um@100mm
Fan Angle :
30°
Operating Voltage :
3-12V DC
Output Power :
≤50.0mW
Case Material :
Insulation Aluminum Black Anodized
Dimensions :
12x45mm
Driver Mode :
CW, Analog Modulation, Digital Modulation, Computer Control
Optics :
Powell Lens
Description

635nm 50mW 50um Uniform Distribution Line Laser Mode for Industrail Robotics and Surface Defect Detection

Product Description

AIMLASER provides customized Uniform Line Laser Diode Modules with customization options, which use powell lenses and the laser intensity and light are well-distributed.

The uniform line laser modules' thinnest line can be 10um, fan angle is optional from 10°to 90° and wavelength ranges from 405nm to 850nm. The input voltage is also different from 3V to 12V DC. Our uniform distribution line laser model features a compact size, narrow line width, high stability and reliability. The generators project very thin line collimated beam lasers, and are widely used in machine vision guidance systems, industrial robotics, 3D scanning, medical instruments, surface defect detection etc.

The 635nm 50mW energy uniformly distributed red line laser module subassembly focus is adjustable.

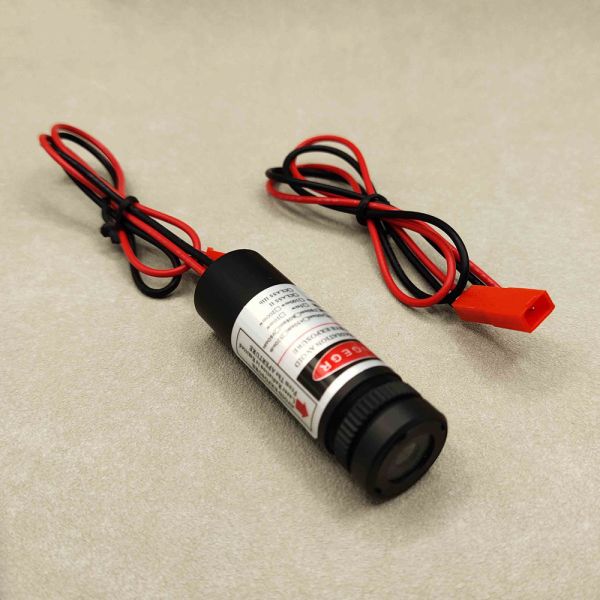

Uniform Distribution Line Laser Module 635nm 50mW 50um For Industrail Robotics GuidanceUniform Distribution Line Laser Module 635nm 50mW 50um For Industrail Robotics Guidance

Specifications

ITEMS

PARAMENTERS

Model Number

Powell Lens Uniform Distribution Line Laser Diode Module

Wavelength

635nm

Output Power

≤50.0mW
Output Aperture Φ4.0mm

Line Width

≤50um@100mm

Fan Angle

30°
Input Voltage 3~12.0VDC
Working Current <70mA
Driver Mode CW, TTL, Analog Modulation, Digital Modulation
Dimensions Φ12x45mm
Divergence 0.3mrad

CDRH Class

Class IIIb

Circuit control

Auto Constanct Current (ACC)

Circuit Protection

Static, Surge, and Reverse Polarity Protected

Working Temperature

-10℃ to 50℃

Storage Temperature

-40℃ to 80℃

Optics

Powell Lens

Material

Aluminum Black Anodized (Insulation)

Life Time

10,000Hrs

Features

1. Compact size, narrow line width, high stability and reliability.

2. Long Lifetime and Ultra-lower Noise.

3. Using high quality powell lens.

4. Using original Laser Diodes from Arima, Osram, Nicha and branded chips.

5. Conform to ROHS, FDA, IEC, SGS standards.

6. Provide one-year warranty and customized solutions.

Applications

The 635nm 50mW powell lens uniform line laser diode modules applications:

● Machine Vision System

● 3D Scanning System

● Laser Profilometer

● Laser Measuring Profilometer

● Laser Contour Scanner

● Laser Scribe Positioning Machines

● Machine Visual Products

● Industrial Visual Measurement System

● Machine Vision Cameras

● Industrial Robot Visual Guidance System
● Industrial Smart Cameras ● Automatic Equipment Visual Positioning System

Trade Terms

1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment: FedEx, DHL, UPS etc.

3) Delivery Time: 5 - 20 days.

4) Shipment Terms: FOB Xi'an China

Why Choose Us

A. Over 20 years laser experience.

B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Strictly following ISO9001:2008 quality system.

E. Product conforms to FDA, IEC and GB standard.

F. Strong design and production capabilities, partners of famous brands.

Hot Tags: powell lens uniform line laser diode module, light uniformly distribution, laser intensity energy power beam line well distributed, China, factory, suppliers, providers, manufacturers, wholesale, customized, quotation, buy, bulk, free sample.
