Long Distance Large Beam Fiber Collimator 405nm-1550nm for Single-Mode and MultiMode Fiber

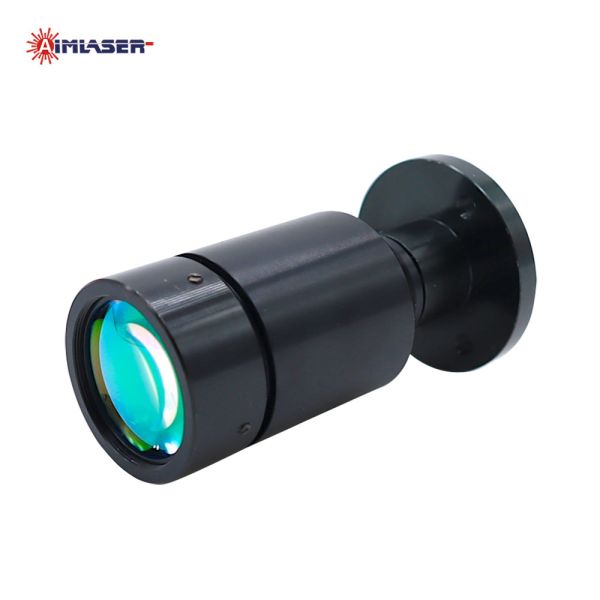

Long Distance Large Beam Fiber Collimator

AIMLASER provides Long Distance and Large Beam Collimators for Single-Mode Fiber and MultiMode Fiber, wavelengths including 405nm, 450nm, 485nm, 520nm, 525nm, 635nm, 780nm, 850nm, 905nm, 980nm, 1064nm, 1310nm, 1550nm, and 1650nm. Customization options are available to meet specific requirements, such as waist beam size, divergence angle, and connector types (e.g., FC/PC, FC/APC, SMA905).

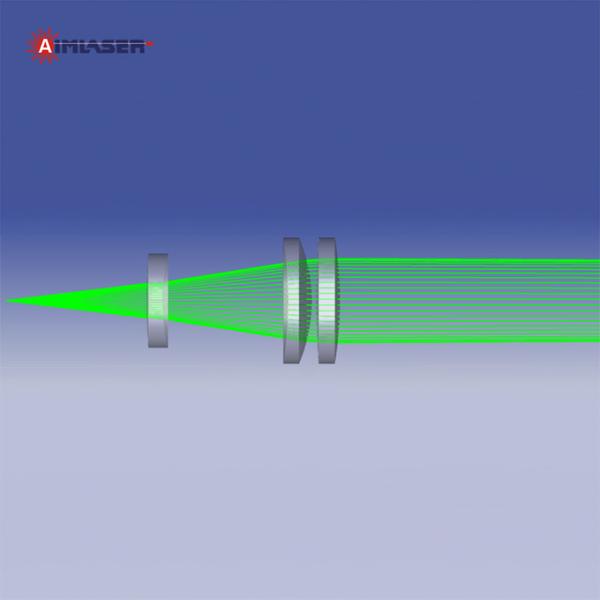

The Long-Distance Fiber Collimation Lens is designed to collimate and shape the output from optical fibers, suitable for laser emission through different fiber connectors. It provides diffraction-limited performance at the design wavelength, with a collimation range of up to 200 meters. This series of collimation lenses features a compact structure and is unaffected by misalignment. Aberration correction is applied during design, utilizing an air-spaced double-lens system for excellent collimation and free-space coupling capabilities. The effective focal length of the double lens varies with the wavelength, so this series must be used at the design wavelength for optimal performance.

​

Specifications

Single-Mode Fiber

MultiMode Fiber

Applications

The 405nm, 450nm, 485nm, 520nm, 525nm, 635nm, 780nm, 850nm, 905nm, 980nm, 1064nm, 1310nm, 1550nm, and 1650nm Long Distance Fiber Collimators are used in:

● Optical Communication: For long-range fiber optic transmission, ensuring minimal signal loss and high-quality beam collimation.

● Laser Systems: Precision applications like laser marking, engraving, and cutting, where long-distance beam collimation is required.

● LiDAR and Sensing: For distance measurement and 3D scanning in LiDAR systems and optical sensing technologies.

● Scientific Research: Beam collimation in laboratory setups and experiments that require precise light delivery over long distances.

● Biomedical Applications: In imaging and diagnostic tools, where long-range collimation is essential for accurate light delivery.

Trade Terms

1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment: FedEx, DHL, UPS etc.

3) Delivery Time: 5 - 20 days.

4) Shipment Terms: FOB Xi'an China.

5) Warranty: One year.

Why Choose Us

A. Over 20 years of laser experience.

B. Large-scaled facility 4,500sq.m2 and over 180 professional staff.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Strictly following ISO9001:2008 quality system.

E. Product conforms to FDA, IEC and GB standards.

F. Strong design and production capabilities, partners of famous brands.

Fiber Collimator Factory Show
