5mW 520nm Small Green Dot Laser Module 6x15mm With PD For Gun Tactical Laser Sight
5mW 520nm Small Green Dot Laser Module 6x15mm With PD For Gun Tactical Laser Sight
5mW 520nm Small Green Dot Laser Module 6x15mm With PD For Gun Tactical Laser Sight
5mW 520nm Small Green Dot Laser Module 6x15mm With PD For Gun Tactical Laser Sight
5mW 520nm Small Green Dot Laser Module 6x15mm With PD For Gun Tactical Laser Sight
5mW 520nm Small Green Dot Laser Module 6x15mm With PD For Gun Tactical Laser Sight
5mW 520nm Small Green Dot Laser Module 6x15mm With PD For Gun Tactical Laser Sight
5mW 520nm Small Green Dot Laser Module 6x15mm With PD For Gun Tactical Laser Sight
5mW 520nm Small Green Dot Laser Module 6x15mm With PD For Gun Tactical Laser Sight
5mW 520nm Small Green Dot Laser Module 6x15mm With PD For Gun Tactical Laser Sight
Specifications
Brand Name :
AIMLASER
Model Number :
AM520ML05G2
Certification :
FDA, IEC
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
10000pcs/month
Delivery Time :
5-15 days
Packaging Details :
Anti-static bag, Carton
Product name :
Small Green Dot Laser Module
Wavelength :
520nm
Output Power :
≤50.0mW
Laser Type :
CW
Beam Size :
10x22mm@25m
Divergence :
0.8mrad
Life Span :
8,000 hours
Material :
Brass Housing, Optical Glass Lens
Dimensions :
6x15mm
Warranty :
1 Year
Description

520nm 50mW 6x15mm Green Beam Dot Laser Module with PD for Gun Tactical Laser Sight Support Customized

Product Description

AIMLASER specializes in the production of Mini Laser Diode Modules and offers tailored solutions with various output powers, beam sizes, dimensions, and input voltages.

The miniature laser modules feature a small size, low power consumption, compact structure, and high-quality beam. They conform to ROHS, FDA, IEC, and SGS standards, utilizing optical glass lenses and high-quality original laser diodes, ensuring a lifespan of over 8,000 hours. A 1-year warranty and OEM customization options are also provided.

The 520nm 5mW green dot laser diode module with a collimated beam is a subassembly widely used in gun laser sights, laser grips, night vision devices, laser rangefinders, laser measurement tool, industrial equipment, laser aiming devices, barcode scanners, miniature laser tools, and precision instruments for laser positioning, alignment, and scanning applications.

5mW 520nm Small Green Dot Laser Module 6x15mm With PD For Gun Tactical Laser Sight5mW 520nm Small Green Dot Laser Module 6x15mm With PD For Gun Tactical Laser Sight

Specifications

ITEMS SPECIFICATIONS
Model Number ML520-10G3 Dot Green Mini Laser Diode Module
Wavelength 520nm
Output Power ≤5.0mW (Customer ACC)
Laser Mode CW
Beam Size <5x10mm@10m and <8x20mm@20m
Divergence 0.8mrad
Optics Optical Glass Lens
Operating Current <140mA (Customer ACC)
Operating Voltage 3V DC (Customer ACC)
CDRH Class Class IIIa
Circuit control Auto Constant Current (Customer ACC)
Circuit Protection Static, Surge, and Reverse Polarity Protected
Working Temperature -10℃ to 50℃
Storage Temperature -40℃ to 80℃

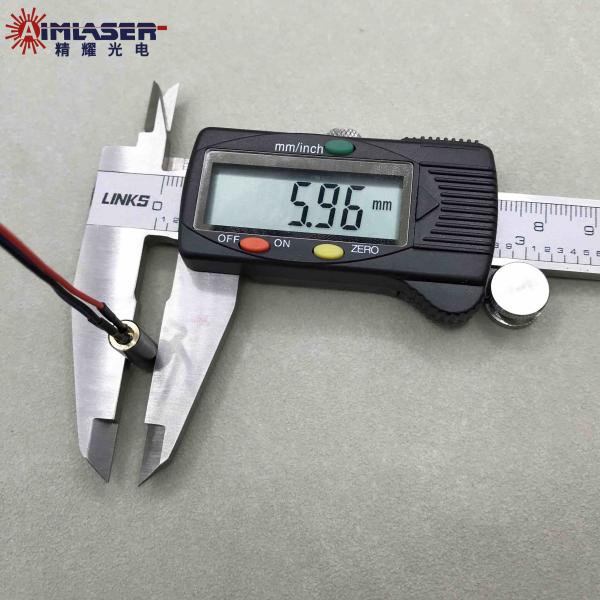

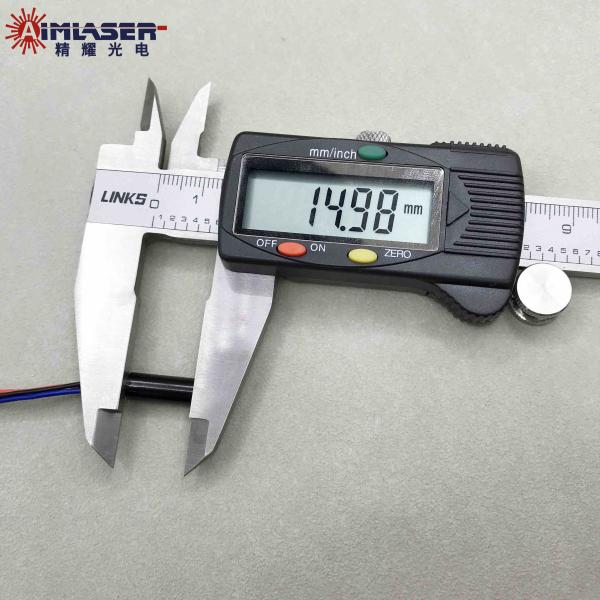

Dimensions Φ6x15mm (Customer ACC)
Life Span 8,000Hrs

Features

1. Small size, Low cost, Lightweight, Low consumption.

2. Good quality beam, high precision and stability.

3. Long Lifetime and Complex Condition Design.

4. Conform to ROHS, FDA, IEC, SGS standards.

5. Provide One year warranty and customized solutions.

Applications

● Gun laser aiming devices

● Laser positioning devices

● Gun laser sights and laser grips

● Laser surveying instrument

● Laser distance mearsuring

● Laser detection equipment

● Laser alignment instrument

● Medical laser equipment

● Laser pointing instrument

● Military laser accessories etc.

Package

The modules are packaged in anti-static bags and cartons to ensure excellent protection during storage and transportation.

Trade Terms

1) Payment: T/T, PayPal, Western Union, etc.

2) Shipment:FedEx, DHL, UPS etc.

3) Delivery Time: 5 - 20 days.

4) Shipment Terms: FOB Xi'an China

Our Services

A. Over 20 years laser experience.

B. Large-scaled facility 4,500sq.m2 and over 180 professional staffs.

C. Use original LDs from Arima, Osram, Nicha and so on to guarantee reliability.

D. Producted in our ISO9001:2008 quality system factory.

E. Product conforms to FDA, IEC and GB standard.

F. Strong design and production capabilities, partners of famous brands.

G. All products undergo internal testing before shipping

Tags: Gun tactical laser sight laser grips laser source, 405nm, 450nm, 520nm, 650nm, 850nm mini laser diode module, small laser head, China, factory, supplier, provider, manufacturer, wholesale, customized, quotation, buy, purchase, bulk, free sample
