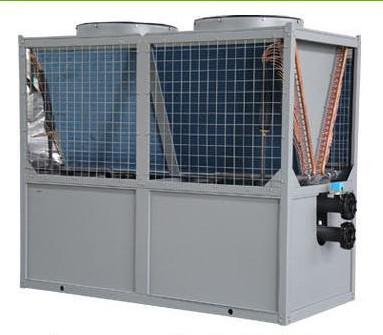

Auto Defrost EVI Low Temperature Heat Pump 16A For Hotel
Auto Defrost EVI Low Temperature Heat Pump 16A For Hotel
Specifications
Brand Name :
LN
Model Number :
KRY-24II
Certification :
CB, CE, EMC, RoHS
Place of Origin :
China
MOQ :
negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50,000pcs/year
Delivery Time :
1-30 days
Packaging Details :
export package Woonden case or plastic film
Working temperature :
-30-40℃
Use :
Villa Family, Sauna and Swimming Pool, Hotels, Factory Hospital, Student Apartments, Beauty Salons
After-sales Service :
Free spare parts, Field maintenance and repair service
Control :
Wifi remote control
Warranty time :
24 months
Installation :
Freestanding, flexible installing
Description

control method for a low-temperature heat pump system is adopted, which includes the following steps: A. Turn on the compressor, and after the main circuit runs for t1 until the refrigerant operation within it is almost steady, run the jet enthalpy increase circuit; B. Judging the heating process Whether the exhaust temperature T row is greater than the preset maximum exhaust temperature T row max, if yes, go to step C, otherwise, go to step E; C. Inject the supercooled refrigerant liquid directly into the middle pressure cavity of the compressor to reduce the discharge Air temperature T row; D. Determine whether the exhaust temperature T row is greater than the preset maximum exhaust temperature T row max-the return difference value △T row of exhaust temperature drop, if yes, go to step C, otherwise, go to step E; , The system is heated to the set temperature and exits. The invention solves the problem that the existing low-temperature heat pump system cannot reach a stable state as soon as possible in the early stage of operation, and the refrigerant distribution of the main circuit and the injection circuit may be uneven, and the reliability of the compressor is improved.

Spec. DKFXRS-9I/CY DKFXRS-11I/CY DKFXRS-11II/CY DKFXRS-16I/CY
Nominal heating at room temperature・(kW) 9.6 10.9 10.8 16
Nominal power consumption at room temperature(kW〕 2.17 2.63 2.7 3.9
Low temperature heating(kW) 4.1 4.65 4.8 7.8
Low temperature power consumption(kW) 1.85 2.1 2.16 3.37
Maximum input power(kW) 3 4.2 4.2 6.6
Maximum current(A) 16 23 8A 32
Power Spec.(Hz) 220V-50 220V-50 380V3N-50 220V-50
Refrigerant/charge amount R22/2500g R22/5600g R22/5600g R22/6000g
noisedb(A) <55 <62 <62 <65
Water resistancekPa <55 <55 <55 <100
Anti-shock level I I I I
waterproof level IPX4 IPX4 IPX4 IPX4
Circulation port diameter DN20 DN32 DN32 DN32
Unit size (mm) 1010x350x835 1030x410x1390 1030x410x1390 1030x410x1390
Unit Weight(kg) 87 142 142 148

Spec. DKFXRS-16II/CY DKFXRS-19II/CY DKFXRS-38II/CY
Nominal heating at room temperature・(kW) 16.4 17.4 38.9
Nominal power consumption at room temperature(kW〕 4.1 4.6 8.82
Low temperature heating(kW) 7.5 8.5 17.6
Low temperature power consumption(kW) 3.4 3.68 7.3
Maximum input power(kW) 6.8 8.5 17
Maximum current(A) 12 15 30
Power Spec.(Hz) 380V 3N-50 380V3N-50 380V 3N-50
Refrigerant/charge amount R22/6000g R22/6500g R22/6500gx2
noisedb(A) <65 <66 <68
Water resistancekPa £100 <65 <65
Anti-shock level I I I
waterproof level IPX4 IPX4 IPX4
Circulation port diameter DN32 DN32 DN40
Unit size (mm) 1030x410x1390 780x820x1700 1550x780x1700
Unit Weight(kg) 149 265 435

Auto Defrost EVI Low Temperature Heat Pump 16A For Hotel


FAQ:

Q1 How about your delivery time ?
A1 Generally, it will take 1 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2 What is your term of delivery ?
A2 EXW, FOB, CIF, etc
Q3 What is your terms of packing?
A3 Generally, we pack the heat pump in brown cartons or plywood. If you have legally registered patent, we can pack the heat pump in your branded boxes after getting your authorization letters.
Q4 What is your sample policy?
A4 We accept the sample order, but the customers have to pay the sample cost and the courier cost.
Q5 Do you test all your goods before delivery?
A5 Yes, we have 100% test before we pack the goods for delivery
Q6 How long is the guarantee time?
A6 2 years warranty on the whole unit. The spare parts must be non-humanly damaged, usually we give to customer 1% spare parts free of charge for maintenance according to order cost during the warranty period.
