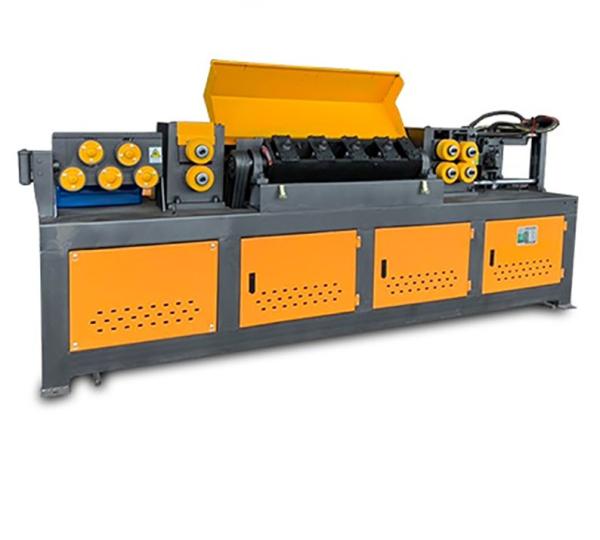

Bundy Tube Straightening Cutting Machine , Copper Aluminum Bundy Tube Straightener Cutter
Bundy Tube Straightening Cutting Machine , Copper Aluminum Bundy Tube Straightener Cutter
Bundy Tube Straightening Cutting Machine , Copper Aluminum Bundy Tube Straightener Cutter
Bundy Tube Straightening Cutting Machine , Copper Aluminum Bundy Tube Straightener Cutter
Bundy Tube Straightening Cutting Machine , Copper Aluminum Bundy Tube Straightener Cutter
Bundy Tube Straightening Cutting Machine , Copper Aluminum Bundy Tube Straightener Cutter
Bundy Tube Straightening Cutting Machine , Copper Aluminum Bundy Tube Straightener Cutter
Bundy Tube Straightening Cutting Machine , Copper Aluminum Bundy Tube Straightener Cutter
Specifications
Brand Name :
OEM/ODM
Model Number :
Customized
Certification :
CE,ROHS ,ISO9001,ISO14001,
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1-3 sets per month
Delivery Time :
20-25days
Packaging Details :
wooden packing
Name :
Bundy Tube Straightening Cutting Machine , Copper Aluminum Bundy Tube Straightener Cutter
Type :
Straightening machine
Dimension(L*W*H) :
2000 x 600 x 1200 mm
Power(W) :
1000
Material :
Bundy tube
Cutting Tolerance :
0.5mm/1m
Control System: :
PLC control / HMI
Voltage :
220V/380V/440V (Customized)
Motor Power: :
1.12KW
Description

Bundy Tube Straightening Cutting Machine , Copper Aluminum Bundy Tube Straightener Cutter

Specification

Input Voltage 440V, 2-phase 50Hz
Applicable Tube Bundy tube
Working Air Pressure 0.6-0.8Mpa
Tube Coil Specification 4.76mm
Tube Wall Thickness 0.4~1.5mm
Making Length 50mm~3860mm
Output Power 1.12KW
Control System Full Automatic
Max Material Feeding Speed 60m/min
Precision ≤1000mm±0.5mm；≤3000mm±1mm；
≤5000mm±1.5mm
Machine Dimension 2000x500x1500(mm)
Weight 627kg

Overview

Place of Origin:Jiangsu, China

Brand Name:Customized

Warranty:1 year

After-sales Service Provided: Free spare parts, Online support, Video technical support

Tube Material:Copper / Aluminum / Bundy tube

Tube Diameter:4-20mm

Cutting Length:>50mm

Work Speed:0~60m/min, adjustable by Inverter

Cutting Tolerance:0.5mm/1m

Control System:PLC control / HMI

Motor Power:1.12KW

voltage:220V/380V/440V (Customized)

Dimension:2300 x 650 x 1300 mm

Name:copper aluminum bundy tube straightener and cutting machine

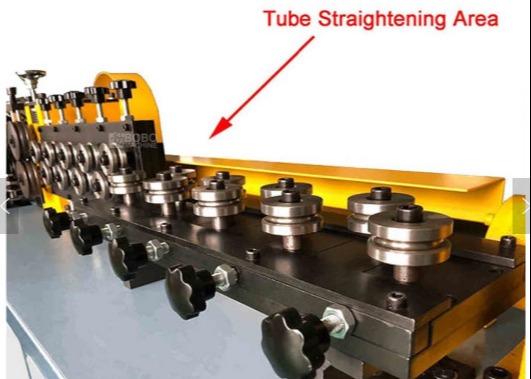

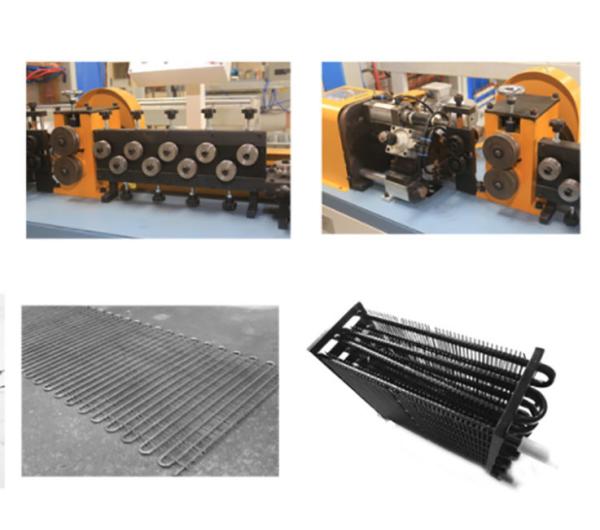

Detailed image

Bundy Tube Straightening Cutting Machine , Copper Aluminum Bundy Tube Straightener Cutter

Bundy Tube Straightening Cutting Machine , Copper Aluminum Bundy Tube Straightener Cutter

Bundy Tube Straightening Cutting Machine , Copper Aluminum Bundy Tube Straightener Cutter

After-Sales Service

We offer free training here in China. Also we can send technicians oversea for whole line installation and training.

The relevant cost including Visa, insurance, round flight ticket, labor cost and accommodation should be borne by buyer.

FAQ

1. Q: What is the power supply of the copper aluminum bundy tube cutting machine?
A: The standard power supply in china is 380V, 3P, 50Hz. We also can customized accordingly.

2. Q: What information should the customer provide to get an accurate quotation from us?
A: The customer should provide the photo and drawing.

3. Q: When we received the copper aluminum bundy tube cutting machine, how to install it?
A: The machine has been installed already before shipment, when you recieved, just need to connect the electric.

4. Q: How to maintenance baling machine?
A: Every shift has to fill in lubrication oil and machine oil.

5. Q: Why we choose your machine?
A: Our factory is over 20 years old, has rich experience on production. All the machines are invented by ourself, we have patent for invention.

6. Q: What is the delivery time?
A: Normally the delivery time of the machine is 30 days after receive down payment.

7. Q: What is the warrantee period of the copper aluminum bundy tube cutting machine?
A: The warrantee period is one year since the date of B/L.

Supply Ability

Supply Ability:20 Set/Sets per Month Automatic coil steel bundy aluminum copper tube pipe

Packaging & Delivery

Bundy Tube Straightening Cutting Machine , Copper Aluminum Bundy Tube Straightener Cutter

Packaging Details: packaged within wooden case.
Port: Shanghai
Lead Time : 30 days
