Touch Screen Tube Shrinking Machine , Pipe Reducer Machine Easy Installation
Touch Screen Tube Shrinking Machine , Pipe Reducer Machine Easy Installation
Touch Screen Tube Shrinking Machine , Pipe Reducer Machine Easy Installation
Touch Screen Tube Shrinking Machine , Pipe Reducer Machine Easy Installation
Specifications
Brand Name :
OEM/ODM
Model Number :
Customized
Certification :
CE,ROHS ,ISO9001,ISO14001,
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1 sets per month
Delivery Time :
20-25days
Packaging Details :
standard export wooden packing
Control: :
PLC control with touch screen
After-sales Service Provided: :
Engineers available to service machinery overseas
Supply Ability: :
50 Set/Sets per Month
Place of Origin: :
Jiangsu, China
condition :
New
Tube Diameter :
4-20mm
Tube Material :
Copper / Aluminum / Bundy tube
Description

Tube shrinking machine Shrinking length Normal type 5-50mm and Extended type 10-95mm

Product Description

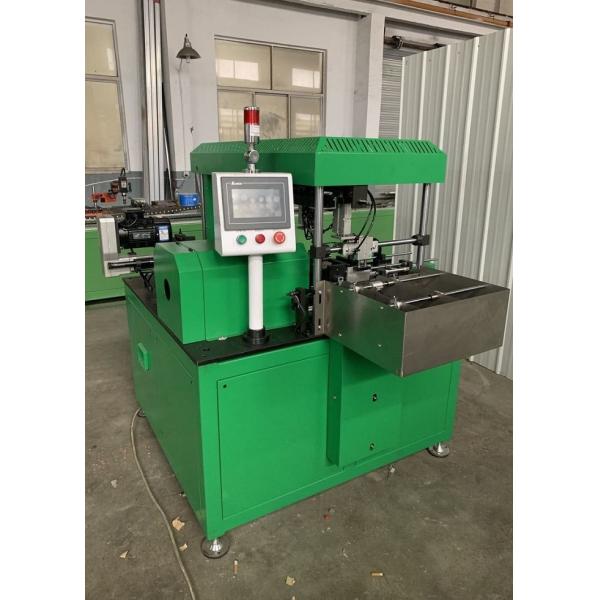

Automatic Refrigeration copper tube shrinking machine aluminum tube reducing machine
Automatic Shrinking machine is specially used to narrow the diameter of copper, aluminum or steel pipe in order to make good connection during condenser and evaporator manufacturing. It is with PLC control, auto feeding, auto shrinking and auto discharging, easy operation, high efficiency.


Specification

NO.ItemData
1Input voltage3 phase 4 lines, 50HZ
2Pipe diameter range4-20mm
3Working pressure0.5-0.6Mpa
4Shrinking lengthNormal type 5-50mm
5Shrinking lengthExtended type 10-95mm
6Speed10-30 pieces / min
7Pipe length range60-305mm
8Bore control rangeΦ1.9~Φ10±0.05
9OperationManual feeding, automatic shrinking
10Power1.5kw
11Dimension1840*600*1180mm

Touch Screen Tube Shrinking Machine , Pipe Reducer Machine Easy Installation

Touch Screen Tube Shrinking Machine , Pipe Reducer Machine Easy Installation

Touch Screen Tube Shrinking Machine , Pipe Reducer Machine Easy InstallationTouch Screen Tube Shrinking Machine , Pipe Reducer Machine Easy Installation

Main Feature

1, Forming by rotary swaging process for welding process in next step.
2, Four-die design for less noise and better quality product
3, Special designed forming die ensure welding quality with less waste in next step..
4, Casted forming head housing ensure stable performance and long-life use.
5, Core-bar design to ensure the inner diameter during process.

Packaging & Delivery

Packing :Standard exporting polywood box

Port:Shanghai, China

Lead Time :10 days
Touch Screen Tube Shrinking Machine , Pipe Reducer Machine Easy Installation
