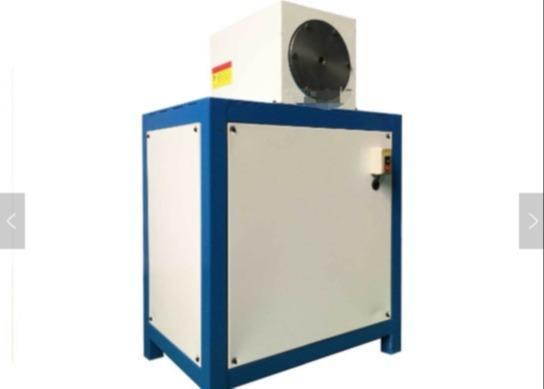

Stable Performance Tube Shrinking Machine Casted Forming Head Housing Long Life
Stable Performance Tube Shrinking Machine Casted Forming Head Housing Long Life
Specifications
Brand Name :
OEM/ODM
Model Number :
Customized
Certification :
CE,ROHS ,ISO9001,ISO14001,
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1 sets per month
Delivery Time :
20-25days
Packaging Details :
standard export wooden packing
Control: :
PLC control with touch screen
After-sales Service Provided: :
Engineers available to service machinery overseas
Supply Ability: :
50 Set/Sets per Month
Place of Origin: :
Jiangsu, China
condition :
New
Head: :
Single head
Description

Tube shrinking machine Casted forming head housing ensure stable performance and long-life use.

Description

Automatic Shrinking machine is specially used to narrow the diameter of copper, aluminum or steel pipe in order to make good connection during condenser and evaporator manufacturing. It is with PLC control, auto feeding, auto shrinking and auto discharging, easy operation, high efficiency.

Main Feature

1, Forming by rotary swaging process for welding process in next step.
2, Four-die design for less noise and better quality product
3, Special designed forming die ensure welding quality with less waste in next step..
4, Casted forming head housing ensure stable performance and long-life use.
5, Core-bar design to ensure the inner diameter during process.

Stable Performance Tube Shrinking Machine Casted Forming Head Housing Long Life

Technical parameter

Type idea-40 idea-60 idea-80 idea-100
Max tube(mm) φ40*2.0 φ60*2.0 φ80*3.0 φ100*3.5
Max processing length(mm) 110 130 150 180
Oil pressure(Mpa) 14 14 14 14
Working speed 100mm in3-4/s 100mm in3-4/s 100mm in3-4/s 100mm in3-4/s
Size(cm) 180*45*120 200*50*130 290*70*140 300*75*150
Weight(kg) 600 950 1600 1800
Remark 1.The max processing length can according to customers requirement.

Stable Performance Tube Shrinking Machine Casted Forming Head Housing Long Life

Packaging & Delivery

Packing :Standard exporting polywood box

Port:Shanghai, China

Lead Time :10 days
Stable Performance Tube Shrinking Machine Casted Forming Head Housing Long Life
