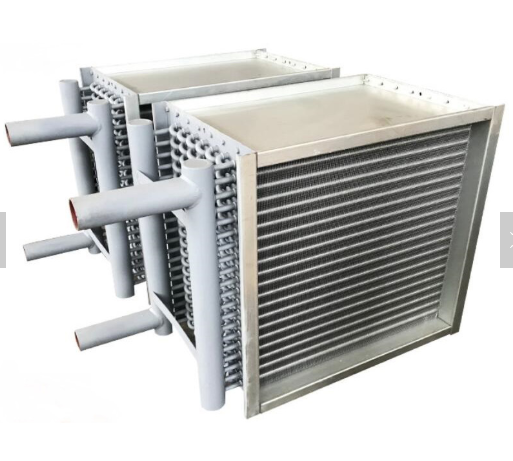

Flat Tube Fin Type Heat Exchanger For Commercial A/C Industrial Refrigeration
Flat Tube Fin Type Heat Exchanger For Commercial A/C Industrial Refrigeration
Flat Tube Fin Type Heat Exchanger For Commercial A/C Industrial Refrigeration
Flat Tube Fin Type Heat Exchanger For Commercial A/C Industrial Refrigeration
Flat Tube Fin Type Heat Exchanger For Commercial A/C Industrial Refrigeration
Flat Tube Fin Type Heat Exchanger For Commercial A/C Industrial Refrigeration
Flat Tube Fin Type Heat Exchanger For Commercial A/C Industrial Refrigeration
Flat Tube Fin Type Heat Exchanger For Commercial A/C Industrial Refrigeration
Specifications
Brand Name :
OEM/ODM
Model Number :
Customized
Certification :
CE,ROHS ,ISO9001,ISO14001,
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 pcs one day
Delivery Time :
3-15 days for 1-5 sets
Packaging Details :
wooden packing
Name :
Flat Tube Fin Type Heat Exchanger
Fin pitch :
4-90mm
Voltage :
AC110V/AC220~24V/AC380V/DC12V/DC24V,220/380v,220V/50Hz
Structure :
fin-tube type
Maximum Working Pressure :
1.6Mpa
Working temperature :
150~350℃
Weight :
100-5000kg,50-1000kgs
Application :
Air Conditioning
Description

Flat Tube Fin Type Heat Exchanger For Commercial A/C Industrial Refrigeration

Specification

Tems Code Dimensions Tolerances
Tube outside diameter D1 Φ25~Φ219 mm ±0.2 mm
Fin outside diameter D2 Φ37~Φ279 mm ±0.75 mm
Fin pitch M 4~90 mm ±0.2 mm
Fin height H 6~30 mm ±0.75 mm
Tube thickness δ1 2~16 mm ±0.15 mm
Fin thickness δ2 0.8~2.5 mm ±0.1 mm
Unfinned tube ends length L1 customized ±1‰*L1 mm
Unfinned tube ends length L2 customized ±1‰*L2 mm
Maximum tube length L 0.5~25 m ±1‰*L mm

1. Product description

There are 2 kinds of the SS tube & fin heat exchangers, which are SS tube & Al fin type and SS tube & SS fin full SS type.

The products are applied for commercial A/C, industrial refrigeration, Gas cooler, Energy Recovery system, pollution gas recovery system, industrial dryer, many other kinds of the refrigeration systems.

The hairpin tube can be “U” bended and straight, end to be connected by return bender.

The tube expanding and tube welding technology of SS heat exchanger are specialized, SS tube welding by orbital machinery. all the connect point welded smooth, full and nice appearance.

2, Quick Details

Liquid Flow Rate:0.1~10 M/s
Maximum Working Pressure:1.6Mpa
Weight:100-5000kg
Applicable Industries:Industry
Condition:New
Place of Origin:Jiangsu, China
Structure:Fin Tube Heat Exchanger
Voltage:No request
Dimension(L*W*H):Customized made
Certification:CE
Working temperature:150~350℃
Warranty: 1 Year

3, Materials of the heat exchanger

  • Tube Φ12.7(1/2”), Φ15.88(5/8”), SS304/SS316/SS316L
  • Wall thickness: SS304 t0.6, SS316L t0.9
  • Fins: Aluminum, bare or hydrophilic coated, t0.15～0.30; SS304 t0.2～0.30
  • Fin pitch:Φ12.7 (1/2”)tube, F.P1.8～6.35mm; Φ15.88 (5/8”) F.P2.5～12.0mm
  • Fin shape: surface sine wave /Plat, edge shape: straight or Corrugated Wave
  • Metal sheet: Stainless steel plate.
  • More details according to the drawing or specifics of customer.

Flat Tube Fin Type Heat Exchanger For Commercial A/C Industrial Refrigeration

Flat Tube Fin Type Heat Exchanger For Commercial A/C Industrial Refrigeration

  • Flat Tube Fin Type Heat Exchanger For Commercial A/C Industrial Refrigeration
