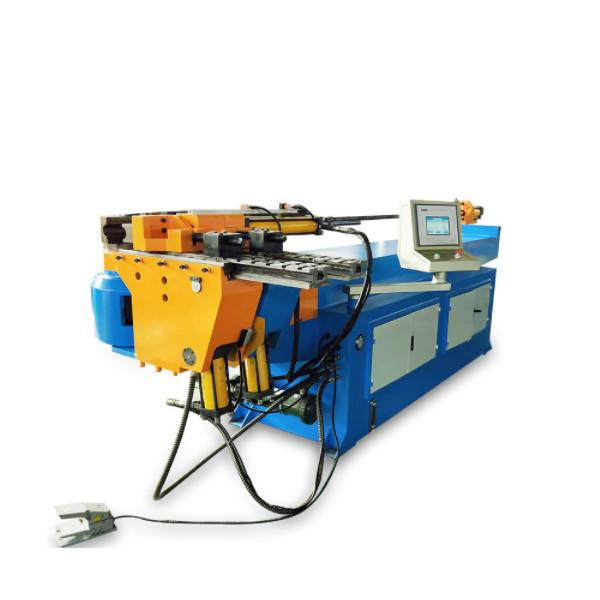

11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator
11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator
11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator
11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator
11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator
11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator
11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator
11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator
Specifications
Brand Name :
OEM/ODM
Model Number :
Customized
Certification :
CE,ROHS ,ISO9001
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1 sets per days
Delivery Time :
20-25days
Packaging Details :
Wooden case or customized made
Name :
11kw Automatic Tube Bending Machine
Type :
Pipe and Tube Bending Machine
Extra services :
Piercing & Punching
Max bending angle :
190 degree
After-sales service provided :
Engineers available to service machinery overseas,Video technical support,Online support
Material / metal processed :
Stainless Steel,Carbon Steel,Brass / Copper,Aluminum
Voltage :
220V/380V/415V/440V/customized
Application :
hydraulic muffler pipe bender
Description

11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator

Specification

1 Tube Material Copper tube / Aluminum tube /Bundy tube
2 Tube Diameter Φ3-12mm
3 Tube Wall Thickness 0.3-1.0mm
4 Bending Capacity Single tube
5 Bending Angle 1~180 degree
6 Bending Radius R11~R30
7 Bending Times Up to 110 times/cycle
8 Feeding length 0-700mm/time, max. 3 times
9 Rotary Table Size Φ2000mm
10 Control System PLC control / Touch Screen
11 Air Pressure 0.5-0.6MPa
12 Motor Power 13KW
13 Electric System 380V, 50Hz, 3Phae (Customized)
14 Dimension 4800 x 1300 x 1680 mm (Excluded Table)
15 Weight About 3000 KG

Product Description

The full automatic serpentine bender is used to process single aluminum/ copper / Bundy tube with de-coiling, straightening and cutting machine and bending function in one line automatically. Compare to traditional manual process, the full-automatic machine improve the work efficient and save labor cost greatly.

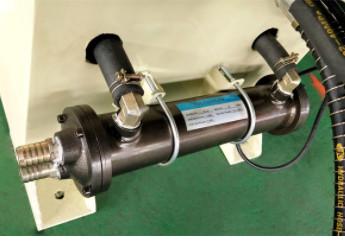

Detailed image

11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator

11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator

11kw Automatic Tube Bending Machine Customized For Condenser / Evaporator

Structural features


1, bending machine using touch screen plus CNC module, dialogue operation, easy to set the program;.

2, the bed structure is solid, not easy to deformation.

3, each file can set 16 bending angle, the memory can be stored in 16 groups of files.

4, all slow positioning function, bending angle stability, repeat accuracy of ± 0.1 °.

5, the error message is displayed on the screen to help the operator immediately to eliminate.

6, to provide self-developed coordinates to convert the bend processing values, software can be installed in the desktop computer optional editing calculations.
