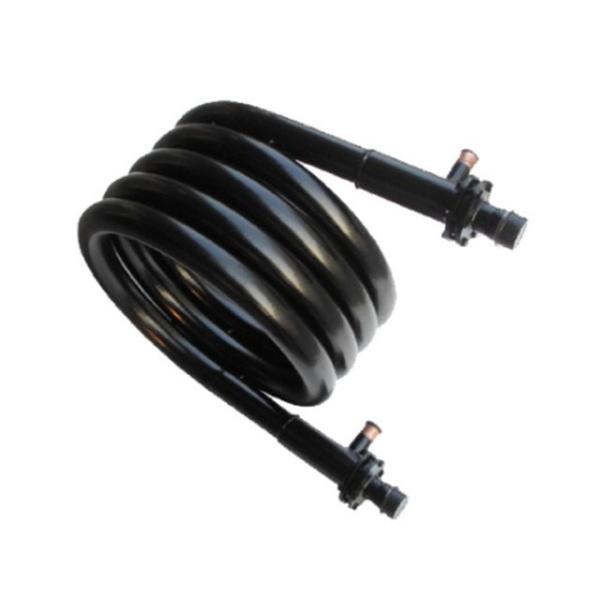

3KW Spiral Tube Coaxial Heat Exchanger For Hot Water / Airconditioner In Vessel
3KW Spiral Tube Coaxial Heat Exchanger For Hot Water / Airconditioner In Vessel
3KW Spiral Tube Coaxial Heat Exchanger For Hot Water / Airconditioner In Vessel
3KW Spiral Tube Coaxial Heat Exchanger For Hot Water / Airconditioner In Vessel
3KW Spiral Tube Coaxial Heat Exchanger For Hot Water / Airconditioner In Vessel
3KW Spiral Tube Coaxial Heat Exchanger For Hot Water / Airconditioner In Vessel
3KW Spiral Tube Coaxial Heat Exchanger For Hot Water / Airconditioner In Vessel
3KW Spiral Tube Coaxial Heat Exchanger For Hot Water / Airconditioner In Vessel
Specifications
Brand Name :
OEM
Model Number :
Customized
Certification :
CE,ROHS ,ISO9001
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
10000 pcs per month
Delivery Time :
10-15 days ,depends on the quantity
Packaging Details :
Wooden case or customized
Name :
3KW Spiral Tube Coaxial Heat Exchanger For Hot Water / Airconditioner In Vessel
After-sales Service :
Online support
Working Temperature Range :
-50~150℃
Port :
Shanghai Port or customized
Condition :
New
Dimension(L*W*H) :
664mm*245mm*222mm
Material :
Carbon Steel and Copper
Application :
Industrial, chemical,
Description

3KW Spiral Tube Coaxial Heat Exchanger For Hot Water / Airconditioner In Vessel

Specification

Model Heating capacity
(KW)		 Water flow
(M³/h)		 Water connection
inch		 Refrigerant inlet
(mm)		 Refrigerant outlet
(mm)		 Length
(mm)		 Width
(mm)		 Height
(mm)
AD-0040C 4 0.7 3/4" 12.7 9.52 313 140 140
AD-0060C 6 1.0 3/4" 12.7 9.52 325 140 170
AD-0092C 9.2 1.6 3/4" 12.7 9.52 313 140 200
AD-0135C 13.5 2.3 1" 16 9.52 313 140 257
AD-0154C 15.4 2.6 1" 16 12.7 555 245 222
AD-0200C 20 3.4 1" 19 12.7 664 245 222
AD-0228C 22.8 3.9 1" 19 12.7 660 280 262
AD-0400C 40 6.9 1.2" 19 16 690 245 444
AD-0440C 44 7.6 1.2" 19 16 700 280 524

Quick Details

Applicable Industries:Hotels, Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops, refrigerant equipment

Condition:New

Place of Origin:China

Liquid Flow Rate:GY-0200C

Maximum Working Pressure:5.2MPa

Warranty:1 year

Structure:Tube Heat Exchanger

Dimension(L*W*H):664mm*245mm*222mm

Certification:CE, ROHS,ISO9001

After-sales Service Provided:Video technical support, Online support,

Working Temperature Range:-50~150℃

Product Name:Coaxial heat exchanger

Type:Tube heat exchanger

Application:Refrigeration Parts

Material:Carbon Steel and Copper

Color:spray black antirust paint

Refrigerant type:R22/R134a/R407c/R410a

Heating capcity:20KW

water flow:3m3/h

water let:1 inch

Detailed Images

Property :

  • Low requirments on water quality.Speace between tubes is enough to allow water with fibre,sand etc passing,and avoid scale formation.
  • It produces high turbulence fluw to avoid scale formation on water side due to spiral twisting construction.
  • Screw construcyion of inner tube,enkarged surface and thick tube wall to strengthen antifreezing capacity.
  • Good oil-returning performance.Without vertical flow direction of refrigerant,oil returns into compressor even the flow is small.
  • High efficience of heat transferring,and balanced heating or cooling capacity;
  • The heating tubes choosed as the working environmrnt.Materials from copper,cooper nickel 90/10,copper-nickel alloy Bfe10-1-1,Bfe30-1-1,seamless steel,titanium,monel etc.
  • 3KW Spiral Tube Coaxial Heat Exchanger For Hot Water / Airconditioner In Vessel
  • 3KW Spiral Tube Coaxial Heat Exchanger For Hot Water / Airconditioner In Vessel

Applied range

Coaxial heat exchanger space between the inner tube and outer tube is cut evenly,which is good to oil returning as evaporator.Due to good properties,it is widely applied into cold water units,air-cooled chiller,water-source or ground-source heat pump,heat-recovery units,heat pump for hot water,airconditioner in vessel etc.

3KW Spiral Tube Coaxial Heat Exchanger For Hot Water / Airconditioner In Vessel

Packaging & Delivery

Packing :Wooden cases.
If you want to customize the packing, please contact us

Supply Ability:10000 Piece/Pieces per Month

Picture Example:

3KW Spiral Tube Coaxial Heat Exchanger For Hot Water / Airconditioner In Vessel

Lead Time :

Quantity(Pieces)

 1 - 20 >20
Est. Time(days) 8 To be negotiated
