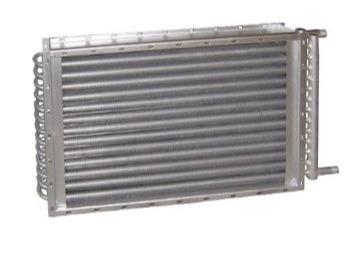

High Durability Finned Tube Heat Exchanger For Air Chiller Condenser Evaporator
High Durability Finned Tube Heat Exchanger For Air Chiller Condenser Evaporator
Specifications
Brand Name :
OEM/ODM
Model Number :
Customized
Certification :
CE,ROHS ,ISO9001,ISO14001,
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 pcs one day
Delivery Time :
3-15 days for 1-5 sets
Packaging Details :
wooden packing
Application :
Auto/Generator radiator/Heat exchanger
Voltage :
AC110V/AC220~24V/AC380V/DC12V/DC24V,220/380v,220V/50Hz
Weight :
100-5000kg,50-1000kgs
Fin material :
stainless steel
tube material :
aluminum
After-sales service provided :
Online support,Engineers available to service machinery overseas
Power(w) :
20~400Kw
Material :
SS304/SS316
Description

Finned tubes heat exchanger applied for Air Chiller, Condenser, Evaporator

Overview

Place of Origin:Jiangsu, China

Brand Name:OEM

Model Number:Customization

Type:Fin Tube

Application:Heater Parts, heating or cooling

Certification:CE

Fin material:stainless steel,carbon steel,copper, aluminum

Fin type:crimped or extruded

Tube material:stainless steel,carbon steel,copper, aluminum

Heat transfer efficiency:High efficiency

OD of Tube:18,21,25,16mm or customized

Width of fin:10,12,15,20mm or customized

Type:L,LL,KL,G type fins

Packing:Iron case

Service:OEM/ODM

High Durability Finned Tube Heat Exchanger For Air Chiller Condenser Evaporator

Product Description:

Name Hot water tanks copper finned tubes/aluminum finned tubes for heat exchanger
Brand OEM
Standard ASME SA213/ASTM A213, ASME SA106/ASTM A106, ASME SA179/ASTM A179, ASTM B111/ASME SB111
Base Tube Material stainless steel, carbon steel, copper alloy, alloy steel (No theoretical limit)
Fin Material Aluminium, Copper Alloy, Stainless Steel, Carbon Steel
Fin tube Max design temperature <450°C
Fin Tube Type 1.Extruded fins tube
2.Serrated fin tubes
3.L Type fins tube
4.G Type fins tube
5.LL Type fins tube
6.H Type fins tube
7.KL Type fins tube
Base pipe O.D 25-165mm
Fins per inch 20 Nos(as customer's request)
Fin depth 0.5-3mm
No fin area on both side As Customer's request.
Design Temperature Below 450°C
Product processing Extruded, Embedded, High Frequency Welding etc.
Ends PE/Plain Ends, BE/Beveled Ends
Test Requirement Physical Property Test, Chemical Composition Analysis, Non-Destructive Test, Other Inspection and Test as customer's requirement.
Application Air Cooler, Charge Air Chiller, Condenser, Evaporator, Fluid Cooler, Gas Cooler, Oil Cooler, Radiator, Refrigeration, Steam to Air Heat Exchanger, superheater, Boiler etc.
Certificate ISO9001:2008, PED/97/23/EC and China Pressure Vessel Pipeline Manufacturing License(A1 & A2)
Capacity 5000 tons/year
Package In bundles, plywood cases, wooden cases with water-proof package, etc.
Product Origin Jiangsu, China(mainland).
Trade Terms FOB, CIF, CFR, DDP, EXW, etc.
Payment Terms T/T, L/C
Nearest Port Shanghai Port
Main Market Domestic Market, North America, Western Europe, South America, Eastern Asia etc.

High Durability Finned Tube Heat Exchanger For Air Chiller Condenser Evaporator

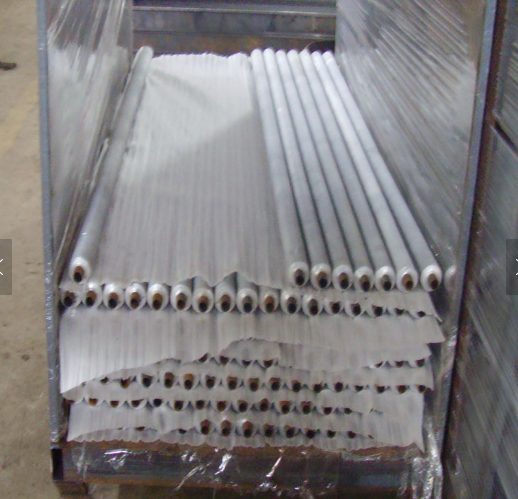

Package


Packing with Plastic Mat, Waterproof Paper , drying agent/desiccant and plastic cap
For light ,short fin tubes ,we use exporting wooden case
For heavy, long fin tubes ,we use iron frame wooden case
On the top of the package ,we weld more square steel to protect the package

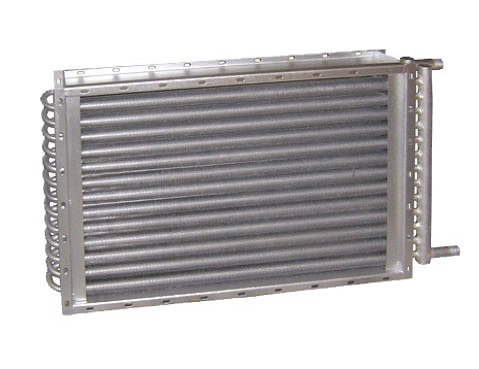

High Durability Finned Tube Heat Exchanger For Air Chiller Condenser Evaporator


4, Lead Time

Quantity(Sets) 1 - 15 >50
Est. Time(days) 10 To be negotiated

  • The last but not least ,we can do the customized once we received the drawing and specification .
