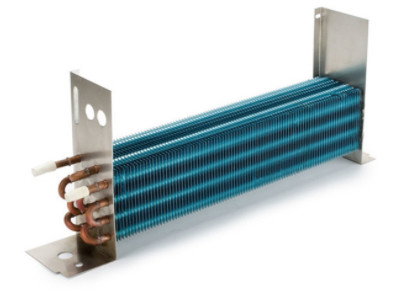

AC110V Air To Air 62mm Fin Type Heat Exchanger Low Heat Resistance
AC110V Air To Air 62mm Fin Type Heat Exchanger Low Heat Resistance
AC110V Air To Air 62mm Fin Type Heat Exchanger Low Heat Resistance
AC110V Air To Air 62mm Fin Type Heat Exchanger Low Heat Resistance
AC110V Air To Air 62mm Fin Type Heat Exchanger Low Heat Resistance
AC110V Air To Air 62mm Fin Type Heat Exchanger Low Heat Resistance
AC110V Air To Air 62mm Fin Type Heat Exchanger Low Heat Resistance
AC110V Air To Air 62mm Fin Type Heat Exchanger Low Heat Resistance
Specifications
Brand Name :
OEM/ODM
Model Number :
Customized
Certification :
CE,ROHS ,ISO9001,ISO14001,
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 pcs one day
Delivery Time :
3-15 days for 1-5 sets
Packaging Details :
wooden packing
Name :
AC110V Air To Air 62mm Fin Type Heat Exchanger Low Heat Resistance
Voltage :
AC110V/AC220~24V/AC380V/DC12V/DC24V,220/380v,220V/50Hz
Structure :
finned tube
Fin material :
stainless steel
Air inlet temperature :
20℃
Wall thickness :
SS304 t0.6, SS316L t0.9
Weight :
100-5000kg,50-1000kgs
Application :
freezer
Description

AC110V Air To Air 62mm Fin Type Heat Exchanger Low Heat Resistance

Specification

Tube Size Fin (OD) Fin Height Fin Thickness Fins Distance
Φ18x2 mm Φ38 mm 10 mm 0.45 mm 3 mm
Φ21x2 mm Φ45 mm 12 mm 0.35 mm 3 mm
Φ21x2 mm Φ51 mm 15 mm 0.35 mm 3 mm
Φ25x2 mm Φ50 mm 12.5 mm 0.3 mm 3 mm
Φ25x2 mm Φ55 mm 15 mm 0.3 mm 3 mm
Φ32x3 mm Φ62 mm 15 mm 0.3 mm 3 mm
Other finned tube size can be customized.

Detailed image

AC110V Air To Air 62mm Fin Type Heat Exchanger Low Heat Resistance

AC110V Air To Air 62mm Fin Type Heat Exchanger Low Heat Resistance

AC110V Air To Air 62mm Fin Type Heat Exchanger Low Heat Resistance

Installation instructions

1. the installation of radiator brackets, brackets should be installed in an accurate position, pay attention to lightly take, lightly put to avoid damage to the radiator by brutal operation.

2.The distance between the back of the radiator and the inner surface of the wall should be not less than 150mm.

3.The branch pipe connecting the radiator should have a slope of 1%~2% according to the different lengths of the branch pipe, and the slope should be conducive to exhaust and water drainage.

4.If the length of the radiator branch pipe exceeds 1.5m, a pipe card should be installed on the branch pipe.
