Gas Cooler 12.7mm Fin Type Heat Exchanger Steam Copper Coil Tubing
Gas Cooler 12.7mm Fin Type Heat Exchanger Steam Copper Coil Tubing
Gas Cooler 12.7mm Fin Type Heat Exchanger Steam Copper Coil Tubing
Gas Cooler 12.7mm Fin Type Heat Exchanger Steam Copper Coil Tubing
Gas Cooler 12.7mm Fin Type Heat Exchanger Steam Copper Coil Tubing
Gas Cooler 12.7mm Fin Type Heat Exchanger Steam Copper Coil Tubing
Gas Cooler 12.7mm Fin Type Heat Exchanger Steam Copper Coil Tubing
Gas Cooler 12.7mm Fin Type Heat Exchanger Steam Copper Coil Tubing
Specifications
Brand Name :
OEM/ODM
Model Number :
Customized
Certification :
CE,ROHS ,ISO9001,ISO14001,
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 pcs one day
Delivery Time :
3-15 days for 1-5 sets
Packaging Details :
wooden packing
Name :
Gas Cooler 12.7mm Fin Type Heat Exchanger Steam Copper Coil Tubing
Type :
heat exchanger
Voltage :
AC110V/AC220~24V/AC380V/DC12V/DC24V,220/380v,220V/50Hz
Tube material :
aluminum
Tube diameter :
12.7mm
After-sales service provided :
Online support,Engineers available to service machinery overseas
Condition :
New
Application :
Heating System
Description

Gas Cooler 12.7mm Fin Type Heat Exchanger Steam Copper Coil Tubing

Specification

Copper tube

Die specific

mm(inch)

 Fin shape

Fin pitch

(mm)

 Rows Material
surface Edge Tube Fins
Φ5(1/5”) 19.5*11.6 (0.768’’*0.457’’) Louvered/V-wave straight 1.1-1.8 1-4 copper Al

Φ7

(0.276”)

 21*12.7 (0.827’’*0.5’’) Slit/louvered straight 1.2-2.0 1-4 copper Al
21*18.3 (0.827’’*0.72’’) V-wave/plat Straight/waved 1.2-3.0 1-4 copper Al

Φ7.94

(5/16”)

 22*19.05 (0.866’’*0.75”) Louvered/waved/plat Straight 1.2-3.0 1-4 copper Al
25.4*19.05 (1”*0.75”) Louvered/waved/plat straight 1.3-4.0 1-6 copper Al
25.4*15.88 (1”*0.625”) waved/plat Straight/waved 1.3-4.0 1-6 copper Al
25.4*22 (1”*0.866”) Louvered/waved/plat straight 1.3-4.0 1-4 copper Al
30*30 (1.18”*1.18”) Corrugated Wave straight 4.0-5.0 1-6 copper Al

Φ9.52

(3/8”)

 25*21.65 (0.984”*0.852”) S-V/V-W/louvered/plat Straight/waved 1.5-3.2 1-12 copper Al
25*21.65 (0.984”*0.852”) S-W/plat Straight/waved 1.8-7.0 1-12 copper Al/SS
25.4*22 (1”*0.866”) Louvered/waved/plat Straight/waved 1.5-3.2 1-12 copper Al
25.4*22 (1”*0.866”) Plat/waved Straight/waved 3.2-6.35 1-12 copper Al
25.4*15.88 (1”*0.625”) Waved/plat Straight/waved 1.3-4.0 1-12 copper Al
25.4*25.4 (1”*1”) Plat Straight 3.2-6.35 1-12 copper Al
31.75*27.5 (1.25”*1.083”) V-W/plat Straight 3.2-6.35 1-12 copper Al

Φ12.7

(1/2“)

 31.75*27.5 (1.25”*1.083”) S-W/plat Straight 1.8-6.35 1-12 Copper/SS Al/T2/SS
38.1*38.1 (1.50“*1.50“) S-W/plat Straight 4.0-6.35 1-6 Copper/SS Al/T2/SS

Company information

Changzhou Aidear Refrigeration Accessories Factory designs and manufactures a wide

range of fin type heat exchangers for refrigeration, industrial and special applications .

Our evaporators and condensers can be manufactured with different materials and can

work with all types of fluids and with duty up to 6000 kW.

We are prepared for the solution of different heat exchange problems, thanks to the widest

experience of technical departments able to suggest technical solutions best suited to each

customer's need .

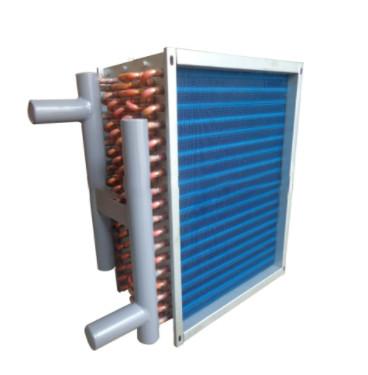

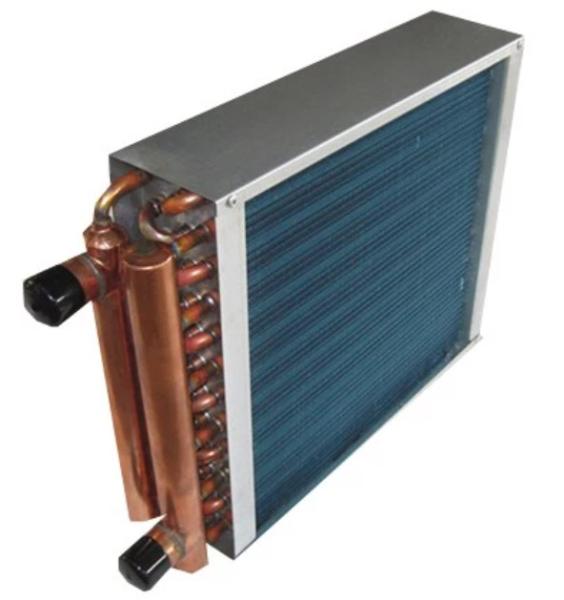

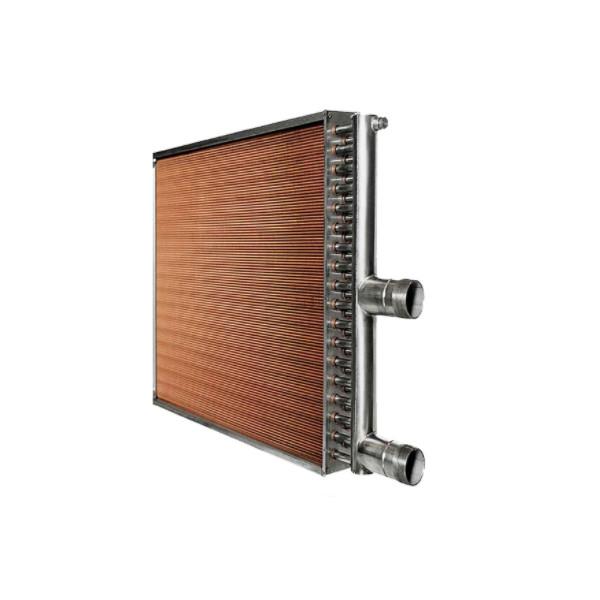

Detailed image

Gas Cooler 12.7mm Fin Type Heat Exchanger Steam Copper Coil Tubing

Gas Cooler 12.7mm Fin Type Heat Exchanger Steam Copper Coil Tubing
