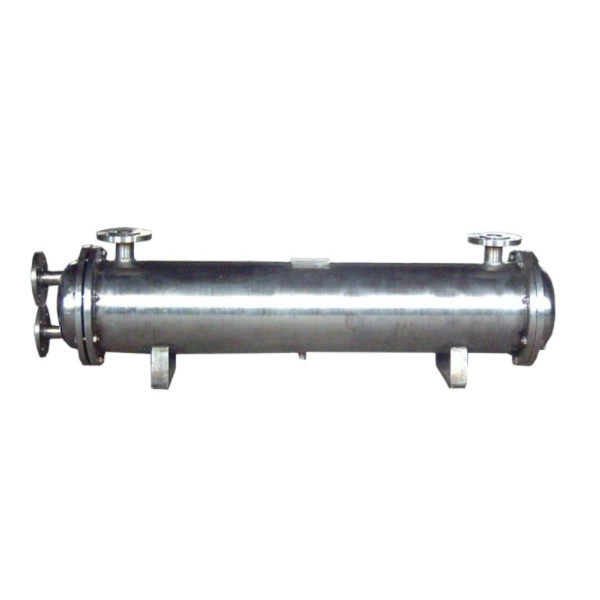

SS304 Air conditioner shell and tube heat exchanger for heat pump
SS304 Air conditioner shell and tube heat exchanger for heat pump
SS304 Air conditioner shell and tube heat exchanger for heat pump
SS304 Air conditioner shell and tube heat exchanger for heat pump
SS304 Air conditioner shell and tube heat exchanger for heat pump
SS304 Air conditioner shell and tube heat exchanger for heat pump
SS304 Air conditioner shell and tube heat exchanger for heat pump
SS304 Air conditioner shell and tube heat exchanger for heat pump
Specifications
Brand Name :
OEM/ODM
Model Number :
Customized
Certification :
CE,ROHS ,ISO9001,ISO14001,
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
300 pcs one day
Delivery Time :
3-15 days for 1-5 sets
Packaging Details :
wooden packing
Name :
SS304 Air conditioner shell and tube heat exchanger for cooling
Type :
shell and tube heat exchanger
Voltage :
AC110V/AC220~24V/AC380V/DC12V/DC24V,220/380v,220V/50Hz
Weight :
200 kgs
Fin material :
stainless steel
After-sales service provided :
Online support,Engineers available to service machinery overseas
Working Temperature Range :
<50℃
Warranty :
1 Year
Application :
Heat pump /water heaters
Description

SS304 Air conditioner shell and tube heat exchanger for heat pump

Product description

Tube Size Fin (OD) Fin Height Fin Thickness Fins Distance
Φ18x2 mm Φ38mm 10 mm 0.45 mm 3 mm
Φ21x2 mm Φ45 mm 12 mm 0.35 mm 3 mm
Φ21x2 mm Φ51 mm 15 mm 0.35 mm 3 mm
Φ25x2 mm Φ50 mm 12.5 mm 0.3 mm 3 mm
Φ25x2 mm Φ55 mm 15 mm 0.3 mm 3 mm
Φ32x3 mm Φ62 mm 15 mm 0.3 mm 3 mm
Other finned tube size can be customized.

The tubular heat exchanger (also known as tubular condenser) is a highly efficient heat exchange equipment, suitable for steam-vapour steam-liquid, liquid-liquid, convection heat transfer. It is mainly composed of shell, tube plate, heat exchanger tube, head, baffle plate and so on. The required material can be made of ordinary carbon steel, copper, or stainless steel respectively. In the heat exchange, a fluid from the head of the connecting tube at the entry, in the tube flow, from the other end of the head of the export tube out, which is called the tube process; the other - a fluid from the shell of the receiver into, from the shell of another receiver out, which is called the shell process of tubular heat exchanger.

Detailed image

SS304 Air conditioner shell and tube heat exchanger for heat pump

SS304 Air conditioner shell and tube heat exchanger for heat pump
