R410A SS304 Window Fin Type Heat Exchanger Electrophoresis
R410A SS304 Window Fin Type Heat Exchanger Electrophoresis
R410A SS304 Window Fin Type Heat Exchanger Electrophoresis
R410A SS304 Window Fin Type Heat Exchanger Electrophoresis
R410A SS304 Window Fin Type Heat Exchanger Electrophoresis
R410A SS304 Window Fin Type Heat Exchanger Electrophoresis
Specifications
Brand Name :
OEM/ODM
Model Number :
Customized
Certification :
CE,ROHS ,ISO9001,ISO14001,
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
7500 pcs per month
Delivery Time :
10-20days
Packaging Details :
PE bags + small box + wooden carton or accept custom-made
Name :
R410A SS304 Window Fin Type Heat Exchanger Electrophoresis
tube material :
copper
Fin material :
Copper /SS/Al
Type :
Fin Tube,Heat Exchanger Tube,Heating Tube,ammonia evaporator unit refrigeration
Fin pitch :
1.1mm-3mm
Voltage :
50/60HZ,220V/380V
Fin shape :
surface
Application :
Machinery & Hardware
Description

R410A SS304 Window Fin Type Heat Exchanger Electrophoresis

Specification

Product nameR410A SS304 Window Fin Type Heat Exchanger Electrophoresis
Applicationshowcase,water cooler,cold storage,outdoor wood furnace and other refrigeration euqipment
Power1/5HP, 1/4HP, 1/3HP, 3/8HP, 1/2HP, 3/4HP, 1HP, 1.5HP, 2HP,3HP, 4HP…20HP
MaterialsCopper tube aluminum fin, galvanized plate
Tube O.D.7mm. 7.94mm, 9.52mm, 12.75mm, 15.88mm
Aluminum finHydroponic fin or bare fin,Copper fin
Fin typeFlat fin, Window fin, louver fin, Smooth sine wave fin
Fin space1.3-10mm
Fan CoverWith cover or without cover,with fan motor or without fan motor
Application refrigerantR417A/R407C/R404A//R410A/R134A, ect.
FeatureEoxy coating, electrophoresis,sandblasting Leaking checking 100%

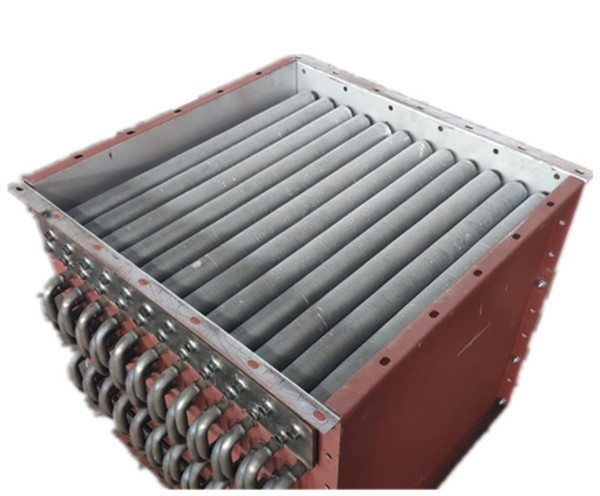

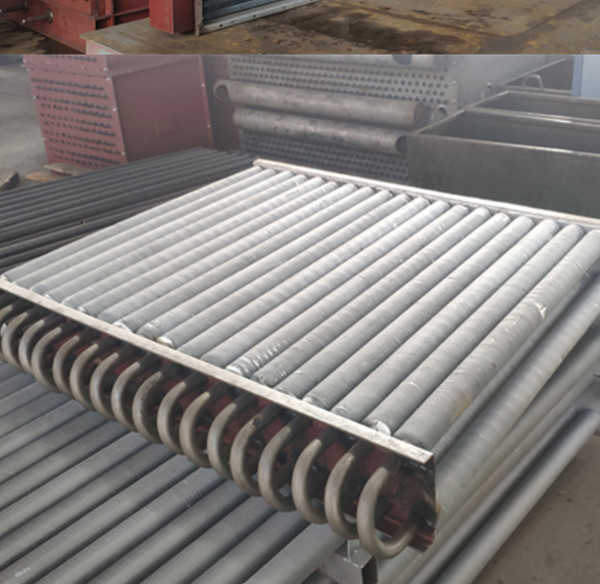

Detailed image

R410A SS304 Window Fin Type Heat Exchanger Electrophoresis

R410A SS304 Window Fin Type Heat Exchanger Electrophoresis

R410A SS304 Window Fin Type Heat Exchanger Electrophoresis



Installation instruction

1.The installation of radiator brackets, brackets should be installed in an accurate position, pay attention to lightly take, lightly put to avoid damage to the radiator by brutal operation.

2.The distance between the back of the radiator and the inner surface of the wall should be not less than 150mm.

3.The branch pipe connecting the radiator should have a slope of 1%~2% according to the different lengths of the branch pipe, and the slope should be conducive to exhaust and water drainage.

4.If the length of the radiator branch pipe exceeds 1.5m, a pipe card should be installed on the branch pipe.
