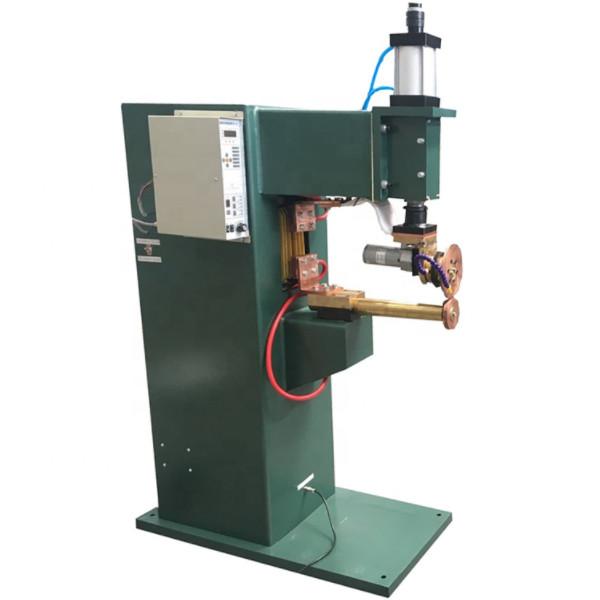

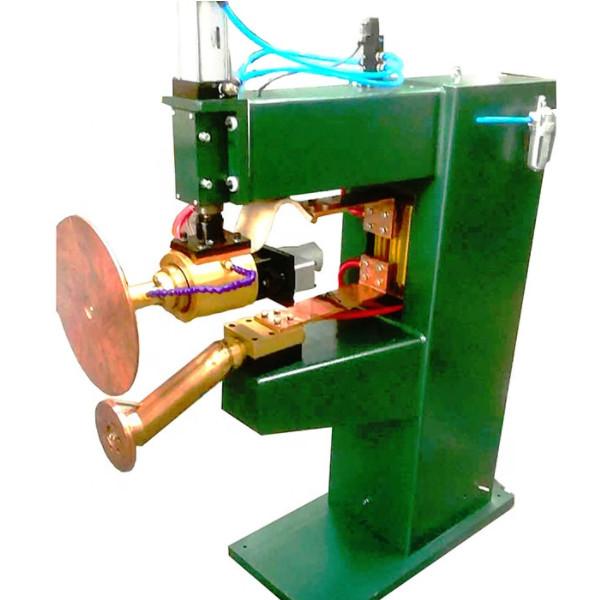

Resistant roll welder, automatic seam welding machine for manufacturing plant
Resistant roll welder, automatic seam welding machine for manufacturing plant
Resistant roll welder, automatic seam welding machine for manufacturing plant
Resistant roll welder, automatic seam welding machine for manufacturing plant
Resistant roll welder, automatic seam welding machine for manufacturing plant
Resistant roll welder, automatic seam welding machine for manufacturing plant
Resistant roll welder, automatic seam welding machine for manufacturing plant
Resistant roll welder, automatic seam welding machine for manufacturing plant
Specifications
Brand Name :
OEM/ODM
Model Number :
Customized
Certification :
CE,ROHS ,ISO9001,ISO14001,
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5sets per month
Delivery Time :
20-25days
Packaging Details :
wooden packing
Name :
Resistant roll welder, automatic seam welding machine for manufacturing plant
Type :
Welding Machine
After-sales service provided :
Engineers available to service machinery overseas,Online support,Free spare parts
Dimensions :
900mmX1150mmX1750mm
Voltage :
380V
Color :
can be customized
Weight (KG) :
300kgs
Warranty :
12 months
Description
Resistant roll welder, automatic seam welding machine for manufacturing plant
Specification

NO.
Item
Data
1
Applied material
Copper and aluminum tube
2
Tube thickness
0.5-1.5mm
3
Welding speed
5-7 s/piece
4
Working pressure
0.5-0.6Mpa
5
Output voltage
1-8 adjustable
6
Input voltage
380-450 V, 50 Hz, 3 phase
7
Control system
PLC + touch screen
Model
Diameter range of tube
TL(K)-25KVA
4-8mm
TL(K)-50KVA
6-10mm
TL(K)-75KVA
6-16mm
TL(K)-100KVA
10-20mm


Applicable Industries: Manufacturing Plant
Condition: New
Place of Origin: Jiangsu, China
Rated Capacity: 25/35/50 KVA
Rated Duty Cycle: 50% Max.
Welding Thickness: 1.5mm
Dimensions: 900mmX1150mmX1750mm
Usage: tube welding
Voltage: 380V
Warranty: 1 year
After-sales Service Provided: Online support, Video technical support,
thickness: 0.5-1.5mm
Welding speed: 5-7 s/piece A
pplied material: Copper and aluminum tube
Working pressure: 0.5-0.6Mpa
Output voltage: 1-8 adjustable
Cutting Tolerance: 0.5mm/1m
Name: condenser evaporator copper aluminum tube pipe welding machine

Detailed image

Resistant roll welder, automatic seam welding machine for manufacturing plant

Resistant roll welder, automatic seam welding machine for manufacturing plant

Resistant roll welder, automatic seam welding machine for manufacturing plant

Advantages:

1,Real time frequency automatic tracking display
2,Welding modes: time, energy, and grounding
3,Welding amplitude 10%-100% adjustable (1% accuracy)
4,Amplitude compensation
5,Mold impedance analysis + protection

Packing &Delivery

Resistant roll welder, automatic seam welding machine for manufacturing plant
