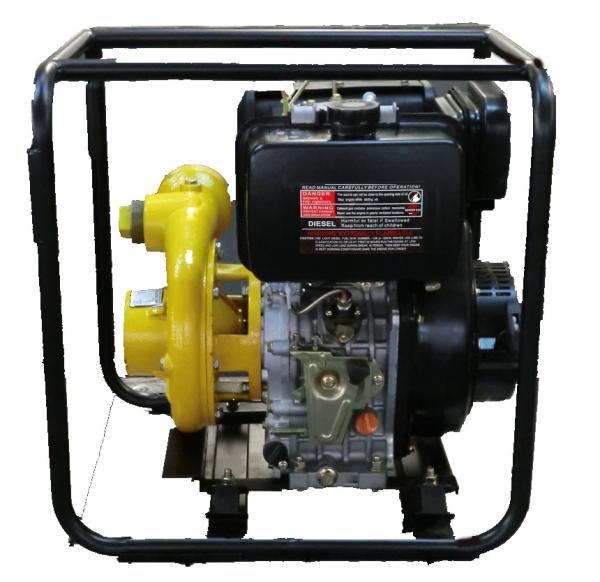

3 Inch Diesel Fuel Driven High Pressure Water Pump 5.5L Fuel Tank KDP30HS
3 Inch Diesel Fuel Driven High Pressure Water Pump 5.5L Fuel Tank KDP30HS
Specifications
Brand Name :
KAIAO
Model Number :
KDP30HS
Certification :
CE
Place of Origin :
CHINA
MOQ :
5
Payment Terms :
Western Union, T/T, L/C
Packaging Details :
CARTONS
Presure :
High
Pump material :
Cast iron
Power :
diesel fuel driven
Model :
KDP30HS
Max. flow(m3/h) :
47
Diameter(mm) (in) :
80(3" )
Description

Water pump
1. ISO&CE improved
2. Driven by strong KAIAO 4-stroke diesel engine
3. Bilobed wheel design
4. Full frame structure ensures the outstanding performance of the pump in extremely hard condition.

3"INCH IRON High Pressure Water Pump
Model KDP30HS
Diameter(mm) (in) 80(3" )
Max. flow(m3/h) 47
Max. lift(m) 80
Max. suction lift(m) 8
Rotational speed(rpm) 3600
Self-priming time(s/4m) 40
Pump shaft Steel
Pump housing cast iron
Impeller cast iron
Engine model KA186F
Engine type Single-cylinder, vertical, four-stroke,air cooled
Bore*stroke(mm) 86*70
Displacement (L) 0.406
Power (kW) 6.3/3600
Fuel consumption rate(g.kW/h) 281
Compression ratio 19
Lubrication system Pressure splash Type
Engine starting system Recoil starter
Fuel oil model Summer:0#,Winter:-10#
Lube oil model SAE10W-30 (above CD grade)
Lube oil capacity (L) 1.1
Fuel tank capacity (L) 5.5
Dimension (L*W*H)(mm) 605*525*625
Net weight(Kg) 75
Gross weigt(Kg) 78


3 Inch Diesel Fuel Driven High Pressure Water Pump 5.5L Fuel Tank KDP30HS
