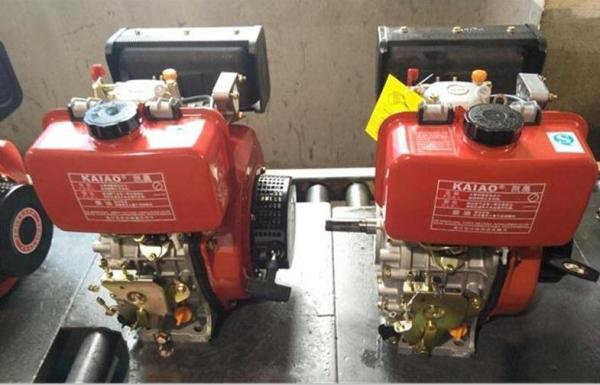

Low Noise Air Cooled Diesel Engine
Low Noise Air Cooled Diesel Engine
Specifications
Brand Name :
KAIAO
Model Number :
KA170FE
Certification :
CE/ISO/SGS
Place of Origin :
China
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
T/T or L/C
Supply Ability :
20,000 pcs per month
Delivery Time :
10 working days after received down-payment
Packaging Details :
Cartons
Rated/Max. Power (KW) :
2.5/2.8
Bore x Stroke (mm) :
70x55
Displacement (cc) :
211
Rated Speed (rpm) :
3000
Compression Ration :
20
Starting Mode :
Electric
Rotation Direction :
Anticlockwise face to output Axle
Lubricating System :
Pressure Splashed
Fuel Consumption (g/kw.h) :
≤280
Fuel Type :
0#, -10#, -20# Diesel
Fuel Tank Capacity (L) :
2.5
Lube Oil Type :
CD grade or SAE 10W-30, 15W-40
Lube Oil Capacity (L) :
0.75
Net Weight (KGS) :
32
Description

Low Noise Air Cooled Diesel Engine

Unique Driving System

Adopted designed precise gear driving & balance shaft system to ensure more excellent performance & stable than other makers

Perfect Direct Injection

To realize the ideal match between the combustion chamber and injection system, keep maximum power from every drop of diesel, it’s extraordinarily low fuel consumption & environmentally friendly engine.

Low Vibration & Low Noise

Vibration & Noise reduction is achieved through the adopt of precision balancers. It makes operation comfort even under long working hours.

Compact Design, Quick & Easy Start

With stronger but lightweight alloy used for main engine parts, extra tough crankshaft and overall compact structure, ensure powerful and simple to install and quick & easy to start.

Application:

KAIAO air-cooled single cylinder engines could be assemble with Agricultural machines (such as Tillers), marine boats, generators & pump sets etc.

Rated/Max. Power (KVA) 9.5/10.5
Phase No.s 3-phase
AC Frequency (Hz) 50
AC Output Voltage (V) 400/230
Rated Current (A) 13.7
DC Output (V/A) 400/230 416/240
Engine Model 　 KA840
Type 　 Two- cylinder,Air-cooled,4-stroke Vertical,Direct injection
Starting System Electric
Fuel Tank Capacity (L) 25
Net Weight (KGS) 185
