Micro Size Brass Lock Cable Grippers With Security Cap For Curtain Suspending

Micro size cable gripper is not only used with stainless steel wire,

But also the plastic fishing wire to suspending the curtain.

Description

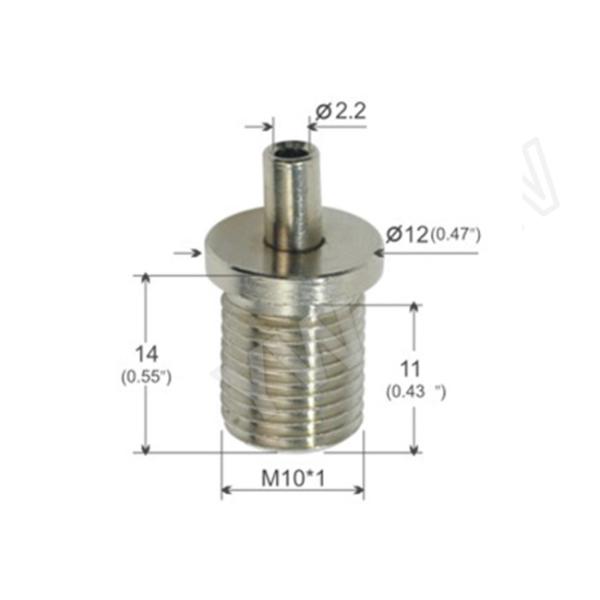

1. Item Name:Micro Cable Gripper For Curtain Suspension

2. Material:Brass

3. Measurement:Φ12*14mm

4. Thread Size:M10 External Thread

5. Finishing Color:Nickel;Or Customize

6. Application:

It is perfect for Hanging Curtain,Graphic Displays, Suspend Signage ,

Lighting Systems , Suspended Fixtures and other objects.

7. Safe Working Load:10KG(Fore reference only)

A Gripper is a sophisticated piece of hardware that allows an electrician to adjust the height of

a fixture without utilizing tools. As a cable slides through the gripper a plunger and three balls

within the gripper surround the outside diameter and catch the cable as it passes through the

gripper. When mounted and weight is applied to the gripper, the tension forces the balls to

grab the cable in a pinching movement.

We offers several grippers in different diameters and screw sizes.

Installation

While pressing down the button on the top of the gripper, simply thread the cable through the gripper, and release the button when at the desired length. Push back the Safety Lock, insert your frame hanger, then release the Safety Lock. Step back and admire your marvelous Hanging System!

ADVANTAGES

1. The Lock cable grippers offer a secure and elegant solution

for any fine art installation,as well as Lighting Products,

Signs,Dispalys, Graphics and many other items;

2. Radically reducing installation time and eliminating human error;

3. Easy to adjust cable length,easy to release.

4. Low cost and competitively priced for use in industrial and architectural lighting applications;

5. Perfect for Suspend Signage + Lighting Systems + Suspended Fixtures;

6. Supplied as Gripper Only or Gripper with Cables in different length.

Cable Gripper Design

Within each cable gripper is a plunger that a cable slides through. There are three balls

that surround the outside diameter of the cable as it passes through the gripper. When

weight is applied to the gripper when mounted, the tension forces the balls to grab the

cable in a pinching movement. In normal operation the more the tension, the more the

gripping. Some grippers come with a safety nut that locks the movement in both directions

eliminating the potential for a release if the plunger is accidentally depressed by an end user.
