Large Hook Aircraft Cable Suspension Systems / Brass Cable Gripper Nickel Color
Large Hook Aircraft Cable Suspension Systems / Brass Cable Gripper Nickel Color
Large Hook Aircraft Cable Suspension Systems / Brass Cable Gripper Nickel Color
Large Hook Aircraft Cable Suspension Systems / Brass Cable Gripper Nickel Color
Specifications
Brand Name :
YW
Model Number :
YW-86230
Place of Origin :
Dongguan,China
MOQ :
1,000pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100,000pcs/month
Delivery Time :
10-15 Work Days
Packaging Details :
Export Carton- 35*25*18cm
Material :
Brass
Size :
Φ18*55mm;Customized
For Cable Diameter :
Ø2.0~Ø3.5mm
Hook Size :
18mm
Finish Color :
Nickel/Chrome/Customized
Cable Exit :
Side Exit
Plunger Diameter :
Ø4.0mm
Others :
OEM/ODM
Description

Large Hook Lock Cable Grippers For 2.0 To 3.5mm Steel Wire Brass Material Plating

This is a large cable gripper with hook,for use of cable diameter from 2.0mm~3.5mm.

We offers several grippers in different diameters and screw sizes.

They can be repositioned without damaging the cable and no tools are necessary. Just unscrew the head, push and slide it.One hand is sufficient : the grippers are installed wholly without tools and are infinitely adjustable

Cable Grippers are sophisticated in design but simple to use to hang your

pictures or fine art. Here’s how it works:


Insert the cable into the plunger and slide the gripper to the desired position. Where it stops it locks.

To re-adjust, simply depress the plunger with your fingertip and move the gripper to a new position. Release the plunger to lock.

The 3-ball gripping mechanism is spring-loaded and allows the gripper to move

freely up the cable. It cannot move down unless the plunger is depressed.

While there is any weight at all on the gripper, the plunger cannot be depressed.

An optional “safety nut” or “safety cap” can be added to completely lock the mechanism

in both directions. The Greater The Weight, The Stronger It Grips.

Description

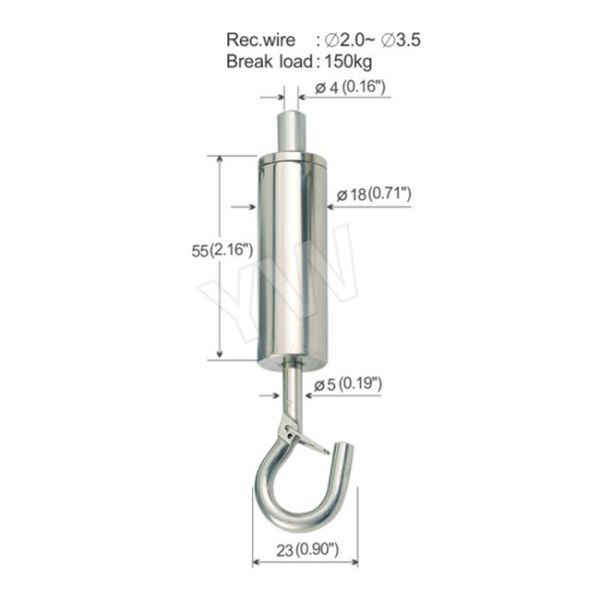

1. Item Name Large Cable Grippers With Hook
2. Material Brass
3. Size Φ18*55mm / Customized
4. Thread Size No thread
5. Plunger Diameter Φ4.0mm
6. For use with Cable Ø2.0~Ø3.5mm
7. Finishing Color Nickel,or Customized
8. Application

Grippers can be used in many mounting applications including but not limited to j-box, drop ceiling, masonry and unistrut projects.
9. Safe Working Load 80KG,depends on the cable diamter work with(For reference only)
10.Advantages

Cable Gripper is the safest, strongest, simplest and most versatile

system of its kind on the market today, we are offering thousands of

precision-made parts to fit almost every conceivable application.

The key component, the Self-Locking Cable Gripper, is a unique,

self-locking,completely adjustable device, designed to securely

lock onto a large range of 7x7 stranded aircraft cables. It requires

no tools to adjust; up or down, down or up - as often as you like.

The cable grippers are suited for a wide variety of applications,

Such as Lighting Products,Signs,Dispalys, Artwork, Graphics and many other items,

And offer the perfect solution for the suspending system.

Arguably the finest way to suspend fixtures available!

With our many Cable Gripper styles you can hang anything: Drop Ceilings,

Light Fixture Pendants, Signs, Displays, Shelves, Picture Frames and more.
