Φ 9 *32 Mm Lock Cable Grippers Brass Plated Material For 1.5 Mm Steel Wire
Φ 9 *32 Mm Lock Cable Grippers Brass Plated Material For 1.5 Mm Steel Wire
Specifications
Brand Name :
YW
Model Number :
YW-86202
Place of Origin :
Dongguan,China
MOQ :
1,000pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100,000pcs/month
Delivery Time :
10-15 Work Days
Packaging Details :
Export Carton- 35*25*18cm
Material :
Brass
Size :
Φ9*32mm;Customized
For Cable Diameter :
Ø1.0~Ø1.5mm
Finish Color :
Nickel/Customized
Cable Exit :
Side Exit
Plunger Diameter :
Ø2.2mm
Thread Size :
M3 Internal Thread
Others :
OEM/ODM
Description

Φ 9 *32 mm Lock Cable Grippers Brass Plated Material For 1.5 mm Steel Wire

Cable exits out the side of gripper.

Bottom of gripper is a M3 tapped thread,

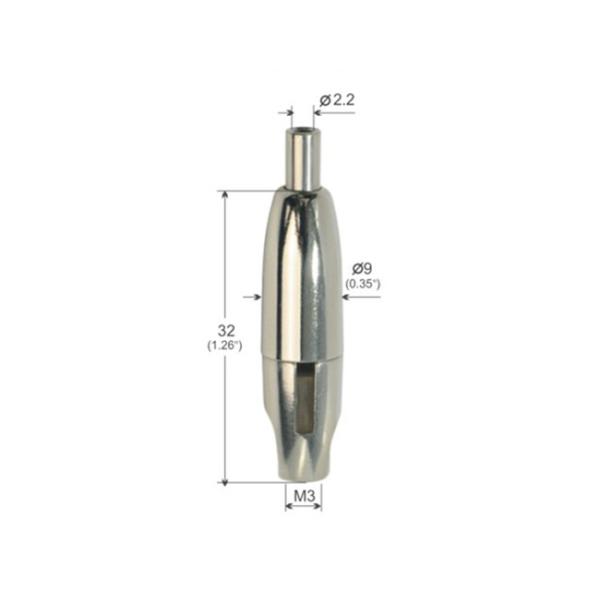

The size is Φ9*32mm,and can be customized too.

Description

1. Item Name Φ9mm Cable Gripper With M3 Thread
2. Material Brass
3. Size Φ9*32mm / Customized
4. Thread Size M3 Female Thread
5. Plunger Diameter Φ2.2mm
6. For use with Cable Ø1.0~Ø1.5mm
7. Finishing Color Nickel,or Customized
8. Application

It is perfect for Hanging Graphic Displays, Suspend Signage ,

Lighting Systems , Suspended Fixtures and other objects.
It can be Supplied as Gripper Only or Gripper with Cables in different length.
9. Safe Working Load 50KG,depends on the cable diamter work with(For reference only)
10. Advantages

1. The Lock Cable Grippers help to provide the ideal suspension solution for sorts of different objects,such as heating,ventilation and air conditioning (HVAC),mechanical and electrical, lighting, acoustics and signage.

2. They prove very easy to use, they have a unique clutch braking

mechanism that grips within the gripper, thus creating a very easy, practical, simple system that can be used time-and-time again!

3. What is the most important,they require no tools to adjust,

up or down, down or up – as often as you like.

How It Works


Lock Cable Grippers are sophisticated in design but simple to use:

Insert the cable into the plunger and slide the gripper to the desired position.

Where it stops it locks.To re-adjust, simply depress the plunger with your fingertip

and move the gripper to a new position. Release the plunger to lock.


The 3--ball gripping mechanism is spring-loaded and allows the gripper to move

freely up the cable. It cannot move down unless the plunger is depressed.

While there is any weight at all on the gripper, the plunger cannot be depressed.

An optional “safety nut” or “safety cap” can be added to completely lock the mechanism

in both directions. The greater the weight, the stronger it grips.

If you have a project that involves unusually sloped, curved or high ceilings, our aircraft cable gripper system may be the solution for you. It is affordable, flexible and easy to install.

To find out more about this more solutions for your hanging system,

Please feel free to contact our sales team.

Advantages

* Safe, reliable and compliant

* Time-saving

* Simple one hand use without tools

* Infinitely adjustable
