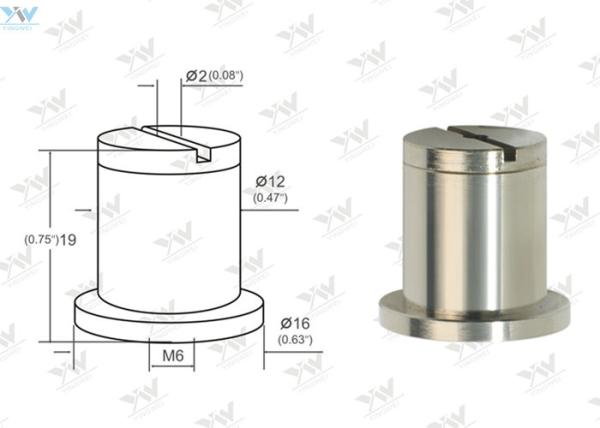

Two - Part Ceiling Cable Hanging System , Brass Material Ceiling Attachment

This attachment provides a firm anchor for the suspension system wire to fixed onto the ceiling.

In the standard configuration, the attachment barrel is screwed onto the ceiling, and the suspension

wire is threaded through the collar-locking nut, with the nipple at the end of the suspension wire locating

into the collar, which is then screwed into the barrel.

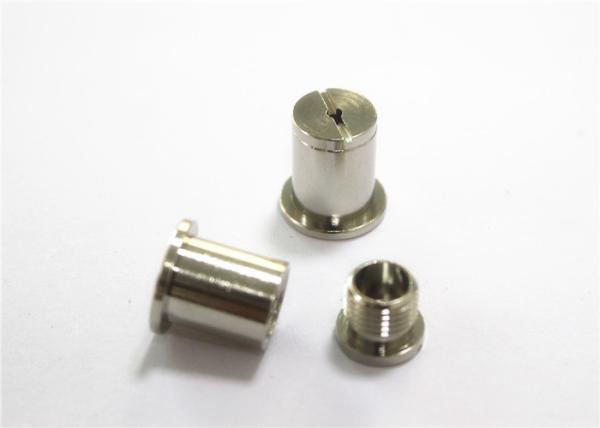

The ceiling attachment is two piece connector for use with cable hanging system.

It is fixed to the ceiling,work with cable gripper and offer the perfect

solution for the suspension system.

If you have a project that involves unusually sloped, curved or high ceilings,

This slope ceiling attachment may be the solution for you.

It is affordable, flexible and easy to install.

Description

On a drywall or wood ceiling, simply use a anchor (drywall) or screw to install

part one of the connector. Then put the griplock cable through the second

part of the connector. The "stop" on the connector will stop the wire from falling out.

Screw this second part of the connector to the first part already installed in the ceiling.

Now you are ready to install the slider to the wire and hang your light fixtures.

Materials & Finishes

Ceiling Attachments are made of nickel / Chrome-plated brass with a few exceptions.

Internal mechanisms are comprised of brass and stainless steel.

Satin-chromed and other finishes are available upon request.

Thread Sizes
Most Ceiling Attachment and Cable Grippers have either internal or

external threads to attach them to the object being suspended.

Quality Control

As all manufacturers and installers know, suspending objects safely

over people’s heads is their first and most critical responsibility.

Safety is our number one concern. Each and every gripper is a

precision-built machine.
