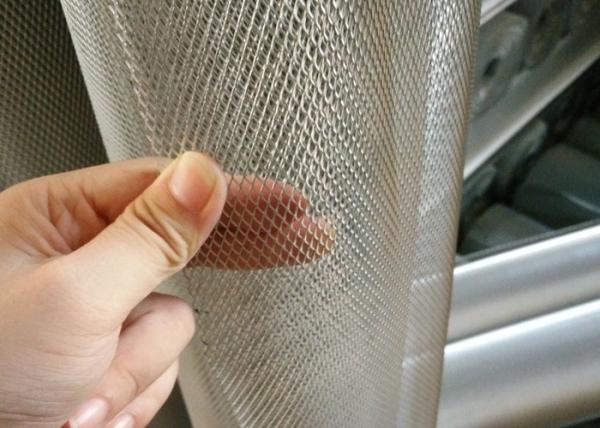

Galvanized 316 Stainless Steel Wire Mesh 0.018-2.03mm Wire diameter
Galvanized 316 Stainless Steel Wire Mesh 0.018-2.03mm Wire diameter
Galvanized 316 Stainless Steel Wire Mesh 0.018-2.03mm Wire diameter
Galvanized 316 Stainless Steel Wire Mesh 0.018-2.03mm Wire diameter
Galvanized 316 Stainless Steel Wire Mesh 0.018-2.03mm Wire diameter
Galvanized 316 Stainless Steel Wire Mesh 0.018-2.03mm Wire diameter
Specifications
Brand Name :
Chang Feng
Model Number :
9009-54-4
Certification :
ISO9001
Place of Origin :
An Ping China
MOQ :
10 rolls
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Kilogram/Kilograms per Week
Delivery Time :
3-5 work days
Packaging Details :
Woven bag
Product name :
Air Filter mesh
Mesh count :
1-635 Mesh
Machinery Test Report :
Provided
Packing :
Woven bag
MOQ :
20 rolls
Material :
Carbon steel
Roll Size :
1M * 20 M/roll
Hole Size (mm) :
7*12, 5*10, 10*12
Plate Thickness (mm) :
0.35/ 0.4/ 0.5/ 0.6
Description

Stainless Steel Woven Wire Mesh Roll For Air Filter

1. Product introduction

1. Consistent pore size distribution guarantees a significantly higher particle separation

2. Material: SUS304 316 316L, 316L is mainly designed for marine aquaculture and pharmacy.

3. Mesh count per liner inch: 2-635mesh

4. Wire thread can be from 0.08” to 0.0008”

5. Width: usually 40” and 48”, special can be ordered

2. Parameter table

Material SS wire 201, 304, 304L, 316, 316L, 431, 321 347 etc.
Wire diameter 0.018-2.03mm
Woven style plain weave, twill weave,dutch weave, reversed dutch weave, crimped weave
Mesh counts

Plain weave wire mesh can be woven up to 400 mesh.

Twill weave wire mesh can be woven from 30 to 635 mesh.
Packaging Details inner kraft, outside plastic cloth, put into wooden pallet or case
Application Plain/Twill weave stainless steel wire mesh is used for screening and filtering in acid or alkali environment. As mud mesh in oil industry, chemical packing nets, chemical fiber industry as screen mesh, electroplating industry as pickling nets.

Mesh/inch

Wire Diameter(mm)

Aperture

(mm)

Mesh/inch

Wire diameter(mm)

Aperture

(mm)

2mesh

1.80

10.90

60mesh

0.15

0.273

3mesh

1.60

6.866

70mesh

0.14

0.223

4mesh

1.20

5.15

80mesh

0.12

0.198

5mesh

0.91

4.17

90mesh

0.11

0.172

6mesh

0.80

3.433

100mesh

0.10

0.154

8mesh

0.60

2.575

120mesh

0.08

0.132

10mesh

0.55

1.990

140mesh

0.07

0.111

12mesh

0.50

1.616

150mesh

0.065

0.104

14mesh

0.45

1.362

160mesh

0.065

0.094

16mesh

0.40

1.188

180mesh

0.053

0.088

18mesh

0.35

1.060

200mesh

0.053

0.074

20mesh

0.30

0.970

250mesh

0.04

0.061

26mesh

0.28

0.696

300mesh

0.035

0.049

30mesh

0.25

0.596

325mesh

0.03

0.048

40mesh

0.21

0.425

350mesh

0.03

0.042

50mesh

0.19

0.318

400mesh

0.025

0.0385

6. Product use

1. Chemical filtering

2. Food and beverage for food filtering

3. Mining, main use coarse mesh, such as crimped wire mesh

4. Refining, mail use stainless steel fine mesh

5. Healthcare

6. Architectural, advise crimped wire mesh and coarse wire mesh used as protection mesh

7. Acoustic, headphone net

8. Automotive

9. Security, PVC coated stainless steel mesh 11mesh.

10. Pharmaceutical: food grade stainless steel fine mesh

11. Quarry, advice carbon steel mesh

7. Advantage

1. Corrosion resistant, stainless steel grade is acid and alkali resistant.

2. High temperature resistant can bear 800 degree centigrade

3. Uniform wire diameter, error is +-2micron

4. Stable structure

Galvanized 316 Stainless Steel Wire Mesh 0.018-2.03mm Wire diameterGalvanized 316 Stainless Steel Wire Mesh 0.018-2.03mm Wire diameterGalvanized 316 Stainless Steel Wire Mesh 0.018-2.03mm Wire diameter
Galvanized 316 Stainless Steel Wire Mesh 0.018-2.03mm Wire diameterGalvanized 316 Stainless Steel Wire Mesh 0.018-2.03mm Wire diameter
