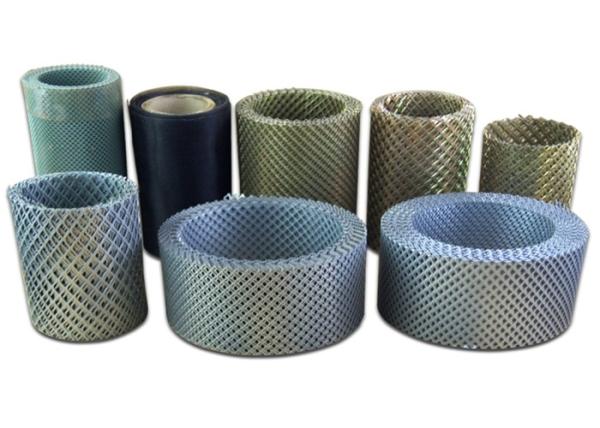

0.6mm Plate Thickness Stainless Steel Filter Mesh , Galvanised Steel Wire Mesh
0.6mm Plate Thickness Stainless Steel Filter Mesh , Galvanised Steel Wire Mesh
0.6mm Plate Thickness Stainless Steel Filter Mesh , Galvanised Steel Wire Mesh
0.6mm Plate Thickness Stainless Steel Filter Mesh , Galvanised Steel Wire Mesh
Specifications
Brand Name :
Chang Feng
Model Number :
9009-54-4
Certification :
ISO9001
Place of Origin :
An Ping China
MOQ :
10 rolls
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Kilogram/Kilograms per Week
Delivery Time :
3-5 work days
Packaging Details :
Woven bag
Product name :
Air Filter mesh
Machinery Test Report :
Provided
Material :
Carbon steel
Hole Size (mm) :
7*12, 5*10, 10*12
Roll Size :
1M * 20 M/roll
Packing :
Woven bag
Plate Thickness (mm) :
0.35/ 0.4/ 0.5/ 0.6
Surface Treatment :
Galvanized plated
Applicable Industries :
Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory
Application :
Component of Filter, supporting and protection
Description

Protection Mesh Galvanized Roll Filter Material Manufacturer Air Filter Mesh

1. Product introduction


Material: Aluminum ,galvanized sheet, stainless steel wire mesh, copper mesh

1. Consistent pore size distribution guarantees a significantly higher particle separation

2. Material: SUS304 316 316L, 316L is mainly designed for marine aquaculture and pharmacy.

3. Mesh count per liner inch: 2-635mesh

4. Wire thread can be from 0.08” to 0.0008”

5. Width: usually 40” and 48”, special can be ordered

2. Parameter table

Thickness Strand Width Hole Size Note
2mm 5mm 25×50mm In Panel
Big Hole
2.5mm 5mm 30×60mm
3mm 5-10mm 40×80mm
2-3mm 5-15mm 50×100mm
3mm 20-30mm 90×200mm
3mm 20-30mm 100×250mm
0.8mm 1.5mm 5×10mm In Roll
Small Hole
0.3-1.5mm 0.3-2.5mm (2-15)mm×(3-30)mm
as you need as you need 2×3
as you need as you need 3×4
as you need as you need 4×5
as you need as you need 4×6
Mesh/inch Wire Diameter(mm)

Aperture

(mm)

 Mesh/inch Wire diameter(mm)

Aperture

(mm)
2mesh 1.80 10.90 60mesh 0.15 0.273
3mesh 1.60 6.866 70mesh 0.14 0.223
4mesh 1.20 5.15 80mesh 0.12 0.198
5mesh 0.91 4.17 90mesh 0.11 0.172
6mesh 0.80 3.433 100mesh 0.10 0.154
8mesh 0.60 2.575 120mesh 0.08 0.132
10mesh 0.55 1.990 140mesh 0.07 0.111
12mesh 0.50 1.616 150mesh 0.065 0.104
14mesh 0.45 1.362 160mesh 0.065 0.094
16mesh 0.40 1.188 180mesh 0.053 0.088
18mesh 0.35 1.060 200mesh 0.053 0.074
20mesh 0.30 0.970 250mesh 0.04 0.061
26mesh 0.28 0.696 300mesh 0.035 0.049
30mesh 0.25 0.596 325mesh 0.03 0.048
40mesh 0.21 0.425 350mesh 0.03 0.042
50mesh 0.19 0.318 400mesh 0.025 0.0385

3. Technology

Galvanized Surface Treatment
Cold-galvanizing
Hot-galvanize Technique

4. Product use

1. Chemical filtering

2. Food and beverage for food filtering

3. Mining, main use coarse mesh, such as crimped wire mesh

4. Refining, mail use stainless steel fine mesh

5. Healthcare

6. Architectural, advise crimped wire mesh and coarse wire mesh used as protection mesh

7. Acoustic, headphone net

8. Automotive

5. Advantage


Any product can be customized according to customer needs

1. Corrosion resistant, stainless steel grade is acid and alkali resistant.

2. High temperature resistant can bear 800 degree centigrade

3. Uniform wire diameter, error is +-2micron

6. Service

It depends on the demension . If we have the exist mold , sample free . You can only afford the delivery expense . If we don't have the exist mold ,the sample fee can be returned back after you placed the order .
