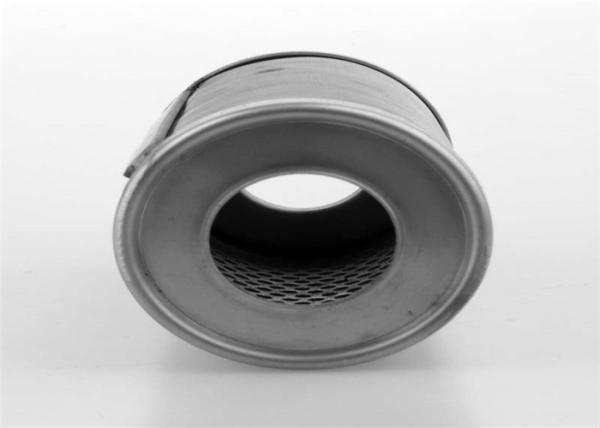

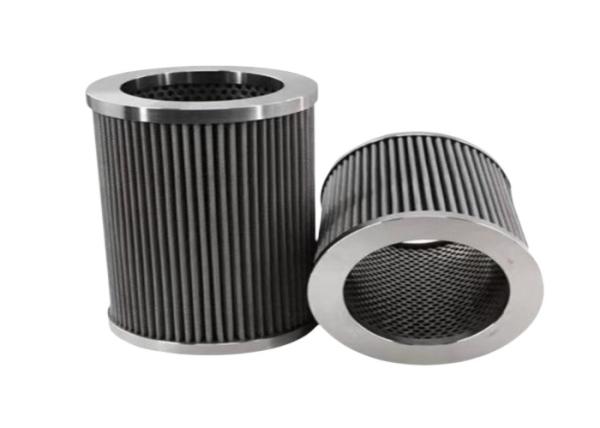

Gas filter element g5.0 stainless steel material 4MPa urban high and medium pressure pipeline filtration

1. Product introduction

Filter element is a professional term of filtration and purification function. In order to purify the resources of raw fluid and a simple device for resource separation, now the filter element is mainly used in oil filtration, air filtration, water filtration and other filtration industries. The filter element can separate solid particles in liquid or gas, or fully contact different material components to speed up the reaction time, which can protect the normal operation of the equipment or the cleanness of the air. When the fluid enters the filter element with a certain specification filter screen, its impurities are blocked, and the clean fluid flows out through the filter element. The liquid filter element makes the liquid (including oil, water, etc.) clean to the state required by production and life, that is, to make the liquid reach a certain cleanliness.

2. Parameter table

3. Installation method

Stainless steel filter equipment can be installed horizontally or vertically according to site conditions. The equipment must be connected with the pipeline according to the direction of inlet and outlet. When installed vertically, the equipment inlet faces upward and when installed horizontally, the sewage outlet faces downward.

4. Product application

Filter element is a professional term for filtering and purification function. In order to purify the resources of the original fluid and a simple device for separating resources, filter elements are now mainly used in filtration industries such as oil filtration, air filtration, and water filtration. The filter element separates the solid particles in the liquid or gas, or makes different material components fully contact, speeds up the reaction time, can protect the normal operation of the equipment or the cleanness of the air, when the fluid enters the filter element with a certain specification filter, its impurities are blocked , And the clean fluid flows out through the filter element. The liquid filter element makes the liquid (including oil, water, etc.) clean the contaminated liquid to the state required for production and life, which is to make the liquid reach a certain degree of cleanliness

5. Product advantage

1).high flow, high precision
2).high porosity, permeability, pressure drop very low
3). excellent mechanical strength, resistance to high pressure up to 200Kg
4).easy to clean, backpulsing
5).corrosion resistance, high temperature resistance
6) .good processing performance, folding, welding, adhesive
7).design flexibility
