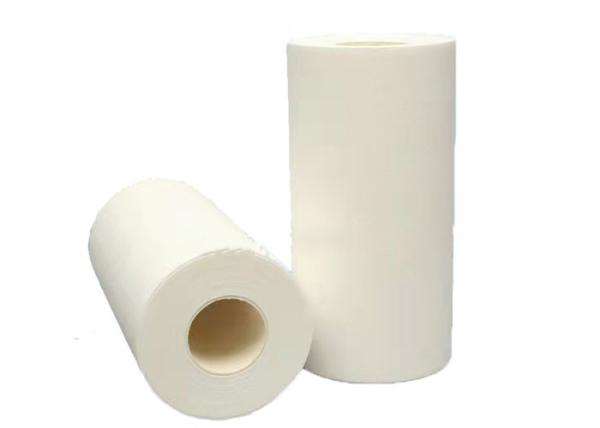

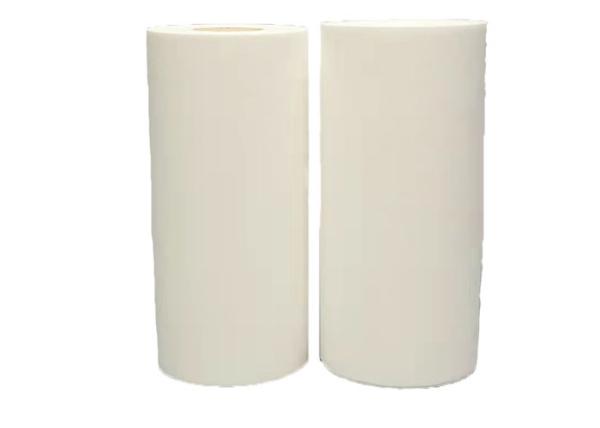

Glass Fiber Hepa Filter Paper Low Resistance And High Strength
Glass Fiber Hepa Filter Paper Low Resistance And High Strength
Glass Fiber Hepa Filter Paper Low Resistance And High Strength
Glass Fiber Hepa Filter Paper Low Resistance And High Strength
Specifications
Brand Name :
chang feng
Model Number :
9009-55-3
Certification :
ISO9001
Place of Origin :
Hebei, China
MOQ :
1000 Kilogram/Kilograms(Min. Order)
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 Ton/Tons per Quarter
Delivery Time :
1 - 5000 Est. Time15(days)
Packaging Details :
Vacuum Cleaner Cooking Oil The Truck Air Filter Paper 1,Inner Packing:Plastic Film 2,Middle Packing:Craft Paper 3,Outer Packing:Plastic Film 4,top and bottom Packing:Paper pallet 5,20ft can load 5.5-6 tons 6,40HQ can load 13.5-16 tons (110 g Hepa Roll Filt
Product Name :
Hepa Air Filter
After Warranty Service :
Online support
Air Permeabiliry :
270-800L/m2.s
Resin Content :
28%
Bursting Strength :
380 Kpa
Stiffness :
3.0mNm
Payment trems :
T/T,L/C.,western union
Application :
Air Filtration, Gas Filtration
Description

Glass Fiber With Low Resistance And High Strength HEPA Filter Paper

1. Product introduction

The high efficiency filter is mainly used for environmental air purification. Its feature is to have high efficiency air filtration. It is small, which can accommodate many pollutants, with a more uniform wind speed, large air volume.

2. Parameter table

No minal size Actual size Thickness Protective net Rated air volume surface air speed Rated initial resistance
(inch) (mm) (mm) (m3h) (mls) (Pa)
WxHxD W×H×D H13 H14 u15 u16
2×2 570×570 50 Double-sided protective net 367 0.35 108 115 135 148
2×4 1170x570 50 Double-sided protective net 775 0.35 1o8 115 135 148
2×1 610×305 5o Double-sided protective net 20o 0.35 108 115 135 148
610×610 50 Double-sided protective net 423 0.35 1o8 115 135 148
2.5×2 762x610 5o Double-sided protective net 535 0.35 108 115 135 148
3x2 915×610 50 Double-sided protective net 646 0.35 1o8 115 135 148
4×3 1170×870 50 Double-sided protective net 1206 0.35 108 115 135 148
4x4 1170×1170(with 5o Double-sided protective net 1637 0.35 108 115 135 148
ribs)
570×570 70 Double-sided protective net 472 0.45 1oo 11o 125 140
4×2 1170×570 7o Double-sided protective net 1oo0 0.45 1oo 11o 125 14o
2×1 610×305 7o Double-sided protective net 258 0.45 1oo 11o 125 140
2×2 610×610 7o Double-sided protective net 545 0.45 1oo 11o 125 14o

3. Technology

Filter paper is generally made of pure cotton linters, which has good filtration and absorption performance and generally high compressive strength. It is suitable for filtering some industrial organic oils and chemical and pharmaceutical organics, etc., to separate solid and semi-solid impurities. . They are all made by machines, and paper is made by machines, otherwise it would not be possible to meet such a huge amount of use in people's daily lives. However, there must be a large-capacity machine for compounding, and then through temperature control, it is rolled by a pressing machine.

4. Service

1. Making the sample until you are satisfied with it.

2. Providing production schedule photos to ensure you know every process.

3. Offering professional one-on-one service and replying your E-mail within three hours

4. Shipment sample for checking before shipment.

5. Priority to get the our latest product information after our cooperation

5. Matters Needing Attention

The filter paper installation is correct, the filter paper must be dried, and there should be no damage. Before operation, the punched paper is carefully sandwiched between each filter plate and filter box. The quantity of filter paper is usually 2 ~ 4 sheets, depending on the requirements and quality of filter paper

Glass Fiber Hepa Filter Paper Low Resistance And High Strength

Glass Fiber Hepa Filter Paper Low Resistance And High StrengthGlass Fiber Hepa Filter Paper Low Resistance And High StrengthGlass Fiber Hepa Filter Paper Low Resistance And High Strength

Glass Fiber Hepa Filter Paper Low Resistance And High StrengthGlass Fiber Hepa Filter Paper Low Resistance And High Strength
