Electro Galvanized Filter End Caps , microspore Engine Air Filter Cover
Electro Galvanized Filter End Caps , microspore Engine Air Filter Cover
Electro Galvanized Filter End Caps , microspore Engine Air Filter Cover
Electro Galvanized Filter End Caps , microspore Engine Air Filter Cover
Specifications
Brand Name :
CHANGFENG
Model Number :
9009-54-84
Certification :
ISO9001
Place of Origin :
An Ping China
MOQ :
10 / set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000 Set/Sets per Week filter end caps 5000 sets/week
Delivery Time :
8-10 work days
Packaging Details :
covers' packaging: 1.Plastic sheets inside 2.PP Woven bag outside 3.According to your requiry
Product Name :
Filter End Caps
Local Service Location :
None
Marketing Type :
New Product 2020
Core Components :
Bearing, Pump
Size :
Customzised
Warranty :
3 months
Dimension :
as your requirements
Material :
galvanized, metal, steel, anti-fingerprint
Surface treatment :
Zinc-plated/powdered/anti-fingerprint/plastic spraying or else
Description

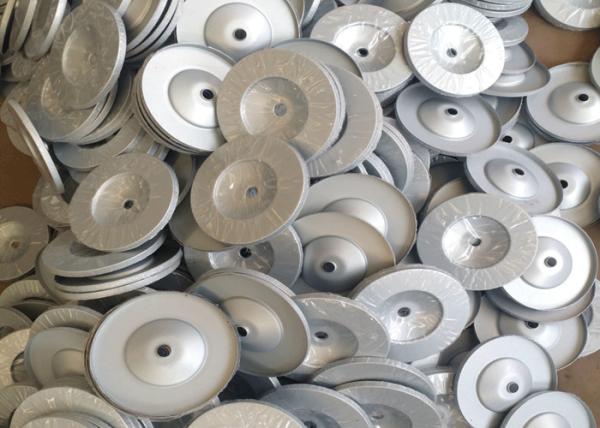

Air Filter Cartridge Electro-Galvanized End Cap/Metal Cover/End Cover

1. Product Description

(1)Suitable for welding smoke very fine dust filter machining, pharmaceutical and construction industries and sticky dust collection.


(2)Spunbonded polyester, PTFE film, microspore, filtration efficiency 99.99%.

(3)Wide fold spacing and smooth, hydrophobic PTFE provide excellent particle release.

(4)Excellent chemical resistance.

(5)Accurate size, beautiful and generous products.

(6)High quality raw materials, product variety, stable quality.

(7)Fast delivery, after-sales support.

2. Specifications

There are parts of specifications of filter caps we made for clients before for your reference. If you need other shapes, we could make customization.

Open Round End Cap with Tri-Bolt Holes
Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.5 215.9
Inner height 0.54 13.716
Outer height 0.5 12.7
Inner rim diameter 6.75 171.45
Open Round End Cap with Outer Lip
Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.5 215.9
Inner diameter 0.625 15.875
Outer height 0.368 9.3472
Lip 0.375 9.525
Open Round End Cap
Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.5 215.9
Inner height 0.5 12.7
Outer Height 0.5 12.7
Closed Round End Cap
Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.375 212.725
Inner height 0.5 12.7
outer height 0.5 12.7
Closed Round End Cap with Bolt Hole
Inches Millimeters
Outer diameter 12.75 323.85
Inner diameter 8.375 212.725
Inner height 0.5 12.7
Outer height 0.5 12.7
Bolt Hole 0.625 15.875
Open Round End Cap with Flange
Inches Millimeters
Outer diameter 5.75 146.05
Inner diameter 2.5 63.5
Inner height 0.5 12.7
Outer height 0.278 7.0612
Closed Round End Cap
Inches Millimeters
Outer diameter 5.25 133.35
Inner diameter 2.5 63.5
Inner height 0.875 22.225
Outer height 0.172 4.3688

3. Characteristics

Product Name OEM Filter End Caps
Material Galvanized steel, stainless steel, anti-fingerprint, copper/brass, etc customized
Thickness 0.30 mm to 3.00 mm
Outer Diameter 20.00 mm to 1000 mm
Types Open/closed, with/without holes, customized
Delivery Time According to customer's requirement
Packing Polybag/Piece or customized
Applications Dust filters, air filter, fuel filter, oil filter, air compressor, water filter, activated carbon filters cartridges, etc.
OEM Available
Quality Control ISO Certification
After-sale Service Product test report, online follow-up.

4. Note:

Please distinguish the top and bottom before using the end cap, and be careful not to leak the glue during the sealing operation.

5. Production Process and Packing

There is the production process of expanded metal mesh. We can see that there are strict procedures from raw materials to finished products. Chang feng could provide production visualization service for clients, which ensures customers can grasp the production schedule in time.
