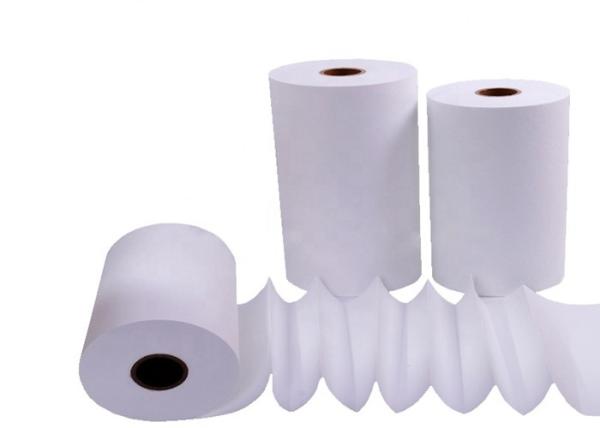

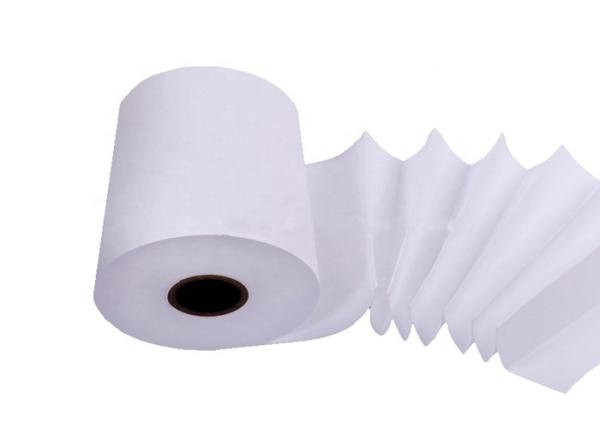

Glass Microfiber Hepa Filter Cloth By The Yard 0.5mm Thickness
Glass Microfiber Hepa Filter Cloth By The Yard 0.5mm Thickness
Glass Microfiber Hepa Filter Cloth By The Yard 0.5mm Thickness
Glass Microfiber Hepa Filter Cloth By The Yard 0.5mm Thickness
Specifications
Brand Name :
Chang Feng
Model Number :
9009-55-2
Certification :
ISO9001&ISO14000
Place of Origin :
An Ping China
MOQ :
1000 Kilogram/Kilograms(Min. Order)
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 Ton/Tons per Quarter
Delivery Time :
1 - 5000 Est. Time15(days)
Packaging Details :
Vacuum Cleaner Cooking Oil The Truck Air Filter Paper 1,Inner Packing:Plastic Film 2,Middle Packing:Craft Paper 3,Outer Packing:Plastic Film 4,top and bottom Packing:Paper pallet 5,20ft can load 5.5-6 tons 6,40HQ can load 13.5-16 tons (110 g Hepa Roll Filt
Product Name :
HEPA Filter Paper
Type :
Quantitative
Usage :
Air Filter
Thickness :
0.5mm
color :
white
MPPS[um :
2
Penetration[% :
2
properties :
high dust holding capacity,good pleating durability
application :
aviation,marines,heavy-duty machineries,nuclear power stations,etc
Description

ISO9001&ISO14000 Air Filter Glass Fiber HEPA Filter Paper

1. Product introduction

Glass fiber filter media are comprised primarily of glass microfibers and are produced by wet laid process. It is ideal media for air filtration. Our offers range from various ASHRAE grades (F6-F9), HEPA grades (H10-H14), to ULPA grades (U15-U17)

2. Parameter table

No minal size Actual size Thickness Protective net Rated air volume surface air speed Rated initial resistance
(inch) (mm) (mm) (m3h) (mls) (Pa)
WxHxD W×H×D H13 H14 u15 u16
2×2 570×570 50 Double-sided protective net 367 0.35 108 115 135 148
2×4 1170x570 50 Double-sided protective net 775 0.35 1o8 115 135 148
2×1 610×305 5o Double-sided protective net 20o 0.35 108 115 135 148
610×610 50 Double-sided protective net 423 0.35 1o8 115 135 148
2.5×2 762x610 5o Double-sided protective net 535 0.35 108 115 135 148
3x2 915×610 50 Double-sided protective net 646 0.35 1o8 115 135 148
4×3 1170×870 50 Double-sided protective net 1206 0.35 108 115 135 148
4x4 1170×1170(with 5o Double-sided protective net 1637 0.35 108 115 135 148
ribs)
570×570 70 Double-sided protective net 472 0.45 1oo 11o 125 140
4×2 1170×570 7o Double-sided protective net 1oo0 0.45 1oo 11o 125 14o
2×1 610×305 7o Double-sided protective net 258 0.45 1oo 11o 125 140
2×2 610×610 7o Double-sided protective net 545 0.45 1oo 11o 125 14o
Resistance [Pa] 108.61
Penetration[%] 0.002973
Efficiency[%] 99.997027
MPPS[um] 0.15518

3. Product characteristics

Uniform fiber dispersion

Exceptional dust holding performance

High efficiency

Minimal resistance to air flow.

4. Product use

ASHRAE grades (F6-F9): ordinary air-conditioning system, gas turbine air intake, air compressor, etc

HEPA grades (H10-H14): 10,000 to 100,000 grade cleaning rooms or working places, air exhauste equipment for nuclear, high-grade household vacuum cleaner, air purifier, masks, etc

ULPA grades (U15-U17): chip factories, 100, 10 even 1 grade cleaning rooms, etc.
