0.0002FS 285mm Height Air Leak Tester Medical Puncture Apparatus 150kPa
0.0002FS 285mm Height Air Leak Tester Medical Puncture Apparatus 150kPa
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Seals-ins
Model Number :
YLA-XXXX-X
Packaging Details :
Cartons, wooden boxes, pallets
Price :
$1,000.00 - $10,000.00/Pieces
Name :
High efficiency and accuracy leak test instrument of Medical Puncture Apparatus air test detector machine made in china
Pressures Measurement Accuracy :
+-0.05%FS
Power :
AC220V
Net weight :
11KG
Medium :
Air
Dimension :
305mm*335mm*285mm
Port :
shenzhen
Description

High efficiency and accuracy leak test instrument of Medical Puncture Apparatus air test detector machine made in china

Product Paramenters
Item
Testing Machine
Test medium
Compressed air or specified medium by customers
Gas source
0.4-0.8MPA (clean, dry)
Power supply
AC220V(±15%),50HZ,ground lead
Environmental temperature
0-50℃
Environmental humidity
≤95% (not dew)
Pressure adjustment range
-20kPa~150kPa
Number of test ports
1
Status of the tested product
With or without hole, semi finished or finished product
Pressure mode
Positive and negative pressure
Pressure adjustment precision
0.05%F.S
Measurement range of the senor
-20kPa~150kPa
Measurement range precision of the senor
0.02%FS
Pressure minimum setting unit
1Pa
Resolution ratio
1Pa
Dimension
335*305*285
Gross weight
11KG
Product Description
Multiple test functions:
The instrument integrates positive and negative pressure forms and 8 test methods: two pressure forms and five test methods can be compiled into more than 20 test functions.

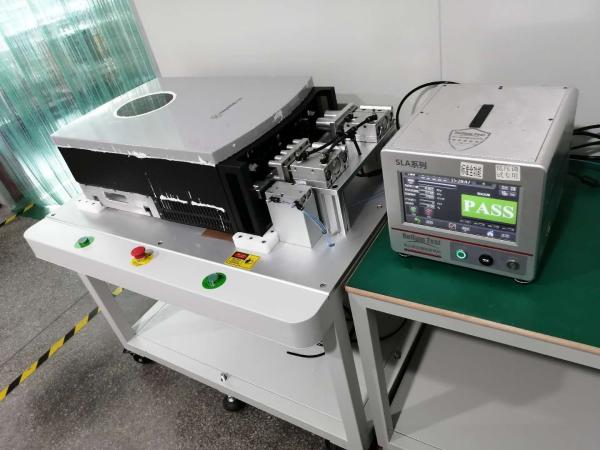

Air leak tester adopts direct pressure principle and uses air as the medium to detect leaks. It is a non-destructive testing instrument.

The working principle is to inflate the test article to the specified air pressure, then close the valve. After a period of stability, measure the change of the air pressure during the detection period, and calculate the leakage amount by conversion.

This instrument is widely used in the sealing test of open products or sealed products with its high precision and full-featured features.

0.0002FS 285mm Height Air Leak Tester Medical Puncture Apparatus 150kPa
