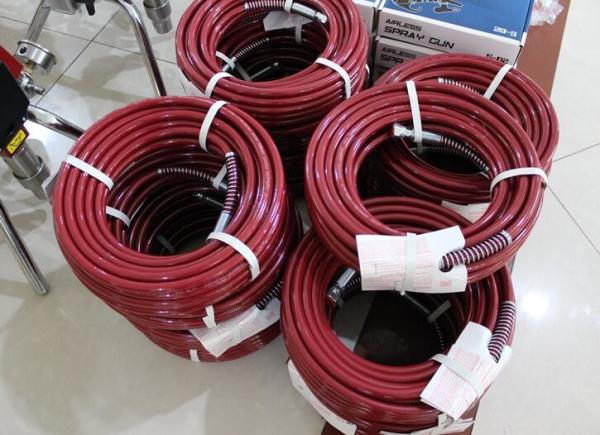

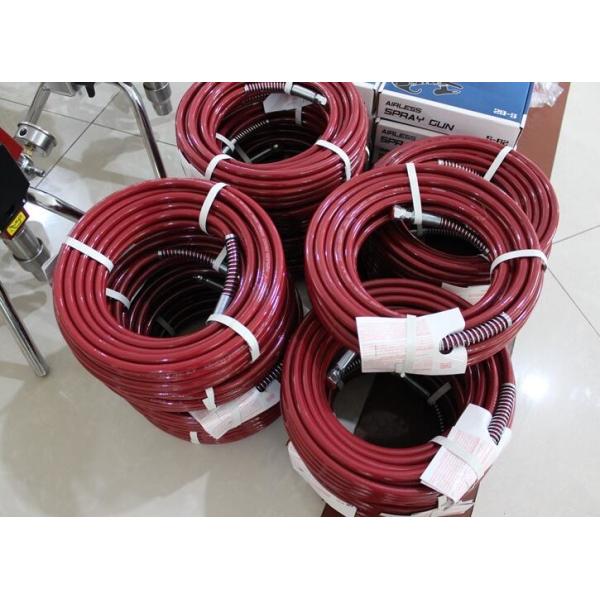

60Mp PE Airless Paint High Pressure Hose Sprayer Blue Red Color
60Mp PE Airless Paint High Pressure Hose Sprayer Blue Red Color
Specifications
Brand Name :
PUTTER
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
20 PCS
Price :
USD 0~50 /PC
Payment Terms :
L/C, T/T
Supply Ability :
2000 pcs per month
Delivery Time :
15 days
Packaging Details :
Carton Case: One Case Per Set, Dimensions: 51x44x46cm
length :
15m
standard :
1/4 in. x 15m
color :
red/blue
Max. Pressure :
60Mp
Material :
PE
Description

airless paint sprayer high pressure hose with blue red

color

Airless Paint Hose with its superior flexibility and durability is designed for ease of use while spraying under pressure. Minimal hose coil memory reduces tangling and kinks when uncoiling or coiling or moving the hose around the project. Conductive core meets the highest safety standards.

Additional lengths of hose extends the reach of your sprayer for peaks or second stories without diminishing performance

Hose measures 50 ft. by 1/4 in.

Maximum working pressure is 3000 psi

Zinc-plated spring guards are corrosion resistant

Includes 1/4 in. x 1/4 in. Connector

Technical Data:

Paint Hose…………………….. 1/4 in. x 15m

Fluid inlet fitting…………………. 3/4 in. internal thread (standard garden hose thread)

Fluid outlet fitting………………. 1/4 NPSM external thread

Max. Pressure……………………..60Mp

Paint hose………. ultra-high molecular weight polyethylene (UHMWPE), nylon, PVC, polypropylene, fluoroelastomer

Size Diameter (in*out) Working pressure Bursting pressure
inch mm Bar psi Bar psi
1/4" 6.3X13.3 400 5800 1450 21000
1/4" 6.3X12.7 340 4930 1360 19270
5/16" 7.9X14.9 380 5500 1300 18850
5/16" 7.9X15.0 310 4495 1240 17980
3/8" 9.5X18.0 250 3625 1000 14500
1/2" 12.7X21.6 220 3190 880 12760

High pressure spray hose assembly
NO.

Size(ID*OD)

(mm)

 Length(m) color fittings Thread spring guard
1 6.3*12.3 15 dark blue 22611D-04-04 G1/4"*19 Yes
2 6.3*13.3 10 blue 20711-14-04(M14*1) M14*1 Yes
3 6.3*13.3 0.5 red 21611D-04-04 NPSM 1/4"*18 Not Use
4 6.3*13.3 13 dark red 21611D-04-04 NPSM 1/4"*18 Yes
5 6.3*13.3 15 dark red 21611D-04-04 NPSM 1/4"*18 Yes
6 6.3*12.3 15 dark red 21611D-04-04 NPSM 1/4"*18 Yes
7 9.5*18 15 blue 21611D-04-04 NPSM 1/4"*18

Yes
