Modbus RTU Dust Concentration Measuring Instrument RS485 40mg/M3
Modbus RTU Dust Concentration Measuring Instrument RS485 40mg/M3
Specifications
Brand Name :
Sujing
Model Number :
SJFC-200
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
800/per month
Delivery Time :
5 work days
Packaging Details :
Carton
Name :
SJFC-200 Dust Concentration Measuring Instrument PM2.5 Detector
Outside Dim :
200×160×90(Wide×High×Deep)
Display :
3.5 inch color screen(optional)
Weight :
2.5KG
Size channels :
PM1.0 PM2.5 PM10 (or PM2.5 PM10 TSP)
Detection Range :
0-40mg/m3
Description

SJFC-200 Dust Concentration Measuring Instrument PM2.5 Detector

This SJFC-200 Dust Concentration Measuring Instrument PM2.5 Detector adopts the advanced microcomputer technology, which is processed by the central processing unit, which has the advantages of fast processing speed, strong anti-interference ability and high measurement accuracy.

The specification of dust particle measurement

Outside Dim 200×160×90(Wide×High×Deep)
Display 3.5 inch color screen(optional)
Battery built-in 5200mah li-ion Battery(optional)
Weight 2.5kg
Max.Consumption 10W
Power Source DC12-24V
Size channels PM1.0 PM2.5 PM10 (or PM2.5 PM10 TSP)
Flow Rate 1L/min ±5% flow (long life pump)
Sample Time 1-999s Selectable, ≥6s recommended
Sensibility 0.1µg/m3
Repeatability ≤±2%
Accuracy ≤±10%
Detection Range 0-40mg/m3
Data Output RS485 / RS232
Comm. protocol Modbus RTU
Operating Time 5 hours
Optional parameters Temperature, RH, combustible gas, oxygen, carbon dioxide, etc.
Data records 2000
Environmental

Temperature: -10-50℃; Humidity:<85%RH;

Atmosphere Pressure:86-106Kpa
Accessories

Carrying case, power adapter, zero count filter ,

Optional: explosion protective and outdoor protective case

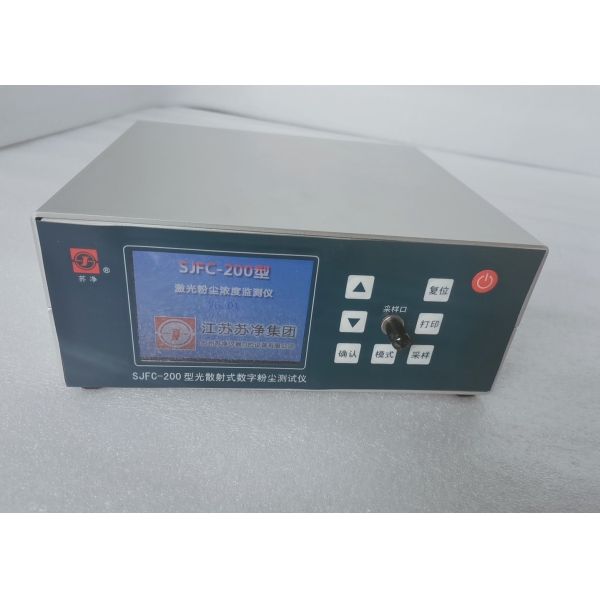

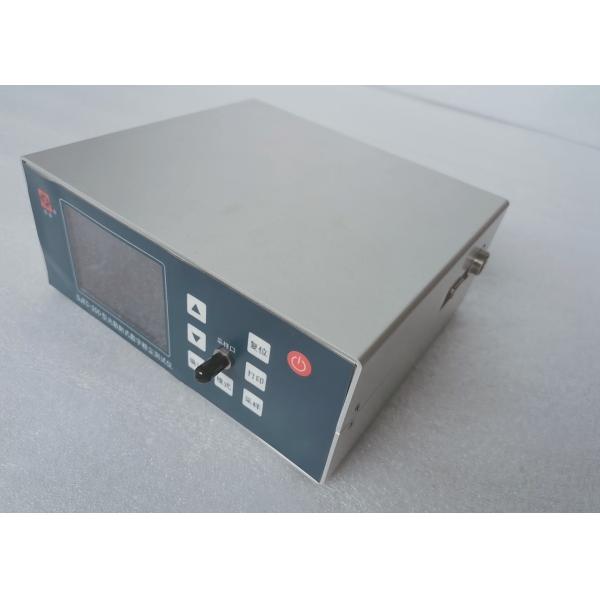

The picture of dust particle measurement
