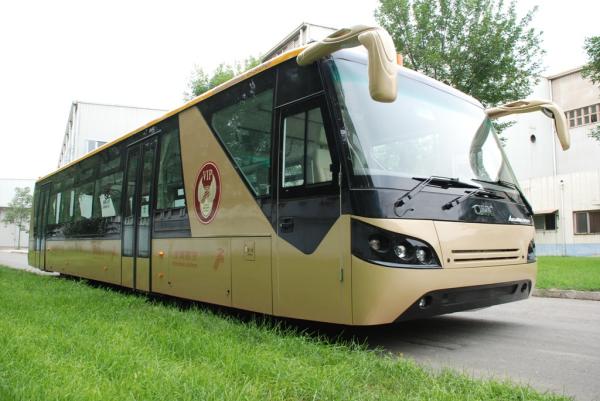

Professional 13 Seat Airport Coaches Apron Bus With Cummins Engine
Professional 13 Seat Airport Coaches Apron Bus With Cummins Engine
Specifications
Brand Name :
Aero ABus
Model Number :
Airport Coaches Cummins Engine
Certification :
CE/ISO9001:2008/AIRPORT EQUIPMENT CERTIFICATE/SGS
Place of Origin :
China
MOQ :
1 Unit
Supply Ability :
12 Units per month
Delivery Time :
1 months, flexible
Packaging Details :
Nude package to suit for long distance marine transportation
Application :
GSE
Standard Passenger Seats :
Customized
Engine :
Deutz
Minimum Turning Radius :
13m
Standing Area :
24
Description

Airport Coaches World Top 2 Manufacturer Reliable Quality Cummins Engine

Quick Detail:

1. Extraordinary transport capacity

2. High efficient fleet management

3. Shortest boarding times

4. Short turn radius

Specification:

No.

Particulars

Specs

1.

Length × Width ×Height

13650mm×2700mm×3178mm

2.

Bus body

Low carbon alloy steel body with aluminum apron;

3.

Wheel base

6670mm

4.

Passenger accommodation capacity

Up to 77 passengers including thirteen (13) seats, in compliance with IATA specifications: four (4) Passengers per sqm

5.

Curb weight

12250kgs

6.

The varied height from passenger cabin floor sill to the ground level

270mm~340mm subject to embarkation and/or disembarkation of passengers

7.

Minimum turning radius

<13500mm

8.

Engine

4-strok, Cummins engine

Basic:　

DEUTZ BF4M1013-16E3, EUROIII, 118kW/2300rpm, ALLISON 2100

Option 1: DEUTZ BF4M1013-19E3, EUROIII, 140kW/2300rpm, ALLISON T270(with extra cost)

Option 2: CUMMINS ISDE180-30, EUROIII, 132KW/2500rpm,

ALLISON 2100

Normal rated power

118kW

Rated speed

2300 rpm

Discharge capacity

4764cc

Compression ratio

18.0

Intake mode

Turbo-charging intercooler

Exhaust emission

EURO III

Fuel consumption

≯215g/kwh

Less than 30Liter per 100 km

Dry weight

520kgs

Fire unit

Electromagnetic mechanism

Generator

28Volt

Starter

6 Kw, 24 Volt

9.

Battery

Battery (2 pcs): 190H52 Lead-acid battery

10.

Transmission (standard)

Allison 2100 automatic transmission, electronic controlled.

Velocity ratio

Gear

ALLISON 2100

ALLISON T270

Gear 1

3.10

3.49

Gear 2

1.81

1.86

Gear 3

1.41

1.41

Gear 4

1.00

1.00

Reverse

4.49

5.03

11.

Volume capacity of vessels

Fuel tank volume

(120 + 80)liter

Anti-freeze fluid

20 liter

Engine lubrication system

14.2 litter

Gearbox lubrication system

18 liter

Main reduction gear of front axle and wheel rim reduction gear

10 liter

Front brake

N/A

Steering gear

5 liter

12.

Front axle (Driving axle)

MERCEDES BENZ 733.W14 (right-hand drive)

MERCEDES BENZ 733.W02 (left-hand drive)

King-pin angle of toe-in

5°

King-pin caster angle 0°

Ratio of master drive:

7.633

Wheel rim velocity ratio

1

Instructions in detail

  1. The carpets are covered
    • on both sides of separation panels between the driver cabin and the passenger area,
    • on the top of rear wheel room,
    • on the top of air-conditioning package in passenger compartment;
  2. Engine cover is equipped with noise absorbing mats;
  3. The fire extinguishers are equipped in driver cabin.
  4. The warning signs in English language on the each door;
  5. Engine exhaust direction can be diverted to keep passenger away from emissions subject to doors on whichever side are open;
  6. Aluminum alloy rod are installed on the top of the front seats back, on the top of rear wheel bag, and on the top of air-conditioning package in passenger cabin along the direction of vehicle width;
  7. Engine speed meter;
  8. Add transition steps to reduce the span at co-pilot side;
  9. Additional handle installed on cabin frame for easy embarkation/disembarkation;
  10. Electrical layout is labeled under the cover of electrical box.
