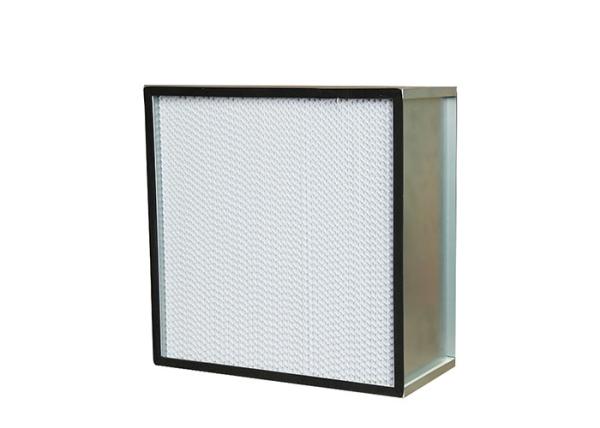

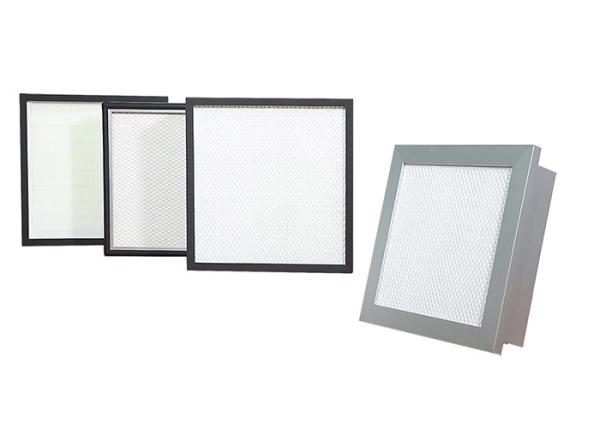

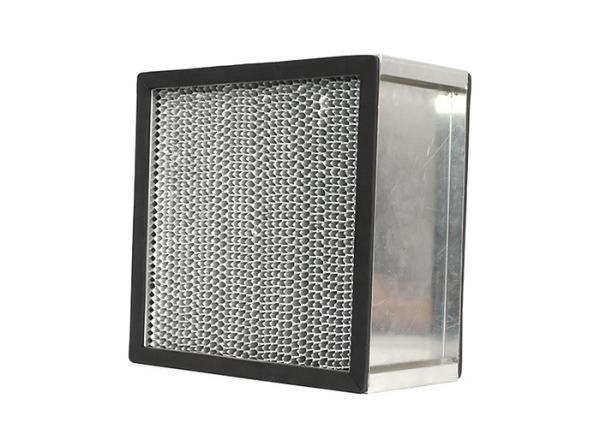

Pharmaceuticals 0.3um Mini Pleat HEPA Filter Flange Type Aluminum Frame
Pharmaceuticals 0.3um Mini Pleat HEPA Filter Flange Type Aluminum Frame
Pharmaceuticals 0.3um Mini Pleat HEPA Filter Flange Type Aluminum Frame
Pharmaceuticals 0.3um Mini Pleat HEPA Filter Flange Type Aluminum Frame
Pharmaceuticals 0.3um Mini Pleat HEPA Filter Flange Type Aluminum Frame
Pharmaceuticals 0.3um Mini Pleat HEPA Filter Flange Type Aluminum Frame
Pharmaceuticals 0.3um Mini Pleat HEPA Filter Flange Type Aluminum Frame
Pharmaceuticals 0.3um Mini Pleat HEPA Filter Flange Type Aluminum Frame
Specifications
Brand Name :
RS
Model Number :
GBK
Place of Origin :
China
MOQ :
10 Pic
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
One piece in a plastic bag,then in a carton(according to the size of the products) ，or According to customers' requirement
Filtration Grade :
Medium Filter
Efficiency :
99.99%, H10 H13
Porosity :
0.3um
Medium Material :
Synthetic Fiber/Glass Fiber
Max. Running Temperature :
250℃
Weight :
5-8Kg
Frame :
Alluminum Alloy/ Galvanized steel/Stainless steel
Final resistance :
100-250Pa
Initial pressure drop(Pa): :
≤80
Construction :
Box Filter
Dimension(L*W*H) :
Customized Size
Description

Product Description

The high-efficiency filter is mainly used to capture particulate dust and various suspended matters below 0.5um. It uses ultra-fine glass fiber paper as filter material, offset paper, aluminum film and other materials as partition plates, and is glued with wooden frame, ABS, aluminum alloy Made.

Each unit is tested by the nano-flame method. It has the characteristics of high filtration efficiency, low resistance, and large dust holding capacity. It can be widely used in optical electronics, LCD liquid crystal manufacturing, biomedicine, precision instruments, beverage and food, PCB printing and other industries. At the air supply end of the air conditioner in the purification workshop, high-efficiency and ultra-high-efficiency filters are used at the end of the clean room. According to its structure, it can be divided into: with partitions, without partitions, large air volume, ultra-efficient filters, etc.

Feature:

1.High efficiency filter material: PP / fiberglass / Compounded material / PTFE / PET

2.Advanced structure: Mini-pleated, without clapboard and fixed with hot-melt glue
3.Frame: Paper / aluminium / galvanized steel
4.High efficiency, more than 99.97%
5.Low resistance and large dust holding capacity
6.Mini pleated without separator, lightweight and convenient to install
7.Material selectable, washable and reusable (PP / PTFE / PET)
8.Stable performance, anti-deformation
9.Material safe, non-toxic and odorless
10.Diferente shape and size available for all types of machines

Detailed Information:

Material and performance
Frame Material Aluminum Alloy , Customized
Filter media High- quality Fiberglass
Partition Hot melt adhesive
Sealant Polyurethane adhesive
Separator Paper/Aluminum foil
Max. temperature 85°C
Max. humidity 80%RH

Dimensions:

Model

External Dimension

(mm)

External Dimension

(mm)

Nominal Air Flow Rate

(m3/h)

Initial Resistance

(Pa)

 Efficiency

Weight

(kg)
GBK 320*320*95 354*354*90 360 ≤220 ≥99.99% 2.7
GBK 350*350*95 384*384*90 450 2.9
GBK 400*400*95 434*434*90 500 3.1
GBK 484*484*95 518*518*90 800 3.3
GBK 550*550*95 584*584*90 1000 4.2
GBK 610*610*95 644*644*90 1350 5.5
GBK 820*600*95 854*634*90 1800 7.5
GBK 630*630*95 644*644*90 1500 6.5
GBK 726*484*95 760*518*90 1200 6.2
GBK 915*610*95 949*644*90 2000 8.2
GBK 968*484*95 1002*518*90 1700 7.7
GBK 1220*610*95 1254*644*90 2700 10.5
GBK 945*630*95 979*644*90 2150 8.5
GBK 1260*630*95 1294*644*90 3000 12

*customized product is avaliable.


Application

suitable for electronics, pharmaceutical industry, hospital, and the occasions required the high cleanliness terminal filtration.
