H10 H13 Mini Pleat HEPA Filter PP High Efficiency Air Filter 1KG
H10 H13 Mini Pleat HEPA Filter PP High Efficiency Air Filter 1KG
H10 H13 Mini Pleat HEPA Filter PP High Efficiency Air Filter 1KG
H10 H13 Mini Pleat HEPA Filter PP High Efficiency Air Filter 1KG
H10 H13 Mini Pleat HEPA Filter PP High Efficiency Air Filter 1KG
H10 H13 Mini Pleat HEPA Filter PP High Efficiency Air Filter 1KG
Specifications
Brand Name :
RS
Model Number :
BKL
Place of Origin :
China
MOQ :
10 Pic
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
2000 Piece/Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
One piece in a plastic bag,then in a carton(according to the size of the products) ，or According to customers' requirement
Filtration Grade :
High Efficiency Air Filter
Efficiency :
99%, F8 F9 H10 H13
Porosity :
0.3um
Medium Material :
Glass Fiber sealant polyurethane
Max. Running Temperature :
80℃
Weight :
1Kg
Frame :
Aluminum Frame/G
Final resistance :
100-250Pa
Initial pressure drop(Pa): :
≤80
Construction :
Panel Filter
Dimension(L*W*H) :
Customized Size
Description

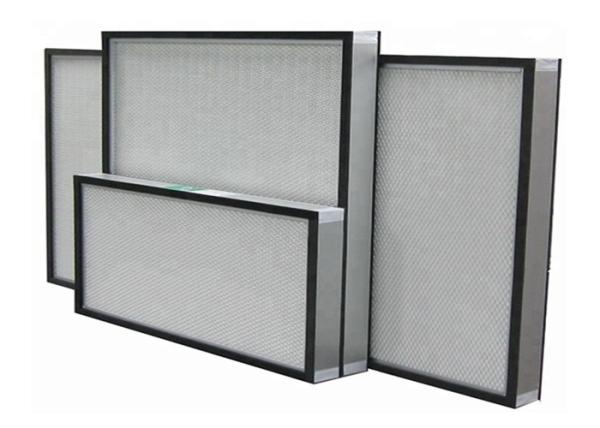

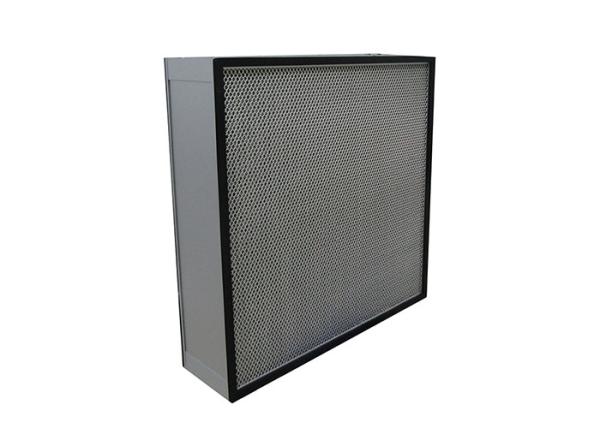

High Efficiency Mini Pleat HEPA Air Filter For Clean Room Air Purification System

Product Description

· The filtration material is made of fibreglass filter paper or the PP high efficiency filter paper
· The special hot-melt separator guarantee the best air flow
· The filtration material and frame is sealed by the special mucilage glue
· Temp. resistance up to 80ºC, small resistance ,
· High efficiency, long service life ;

Outline Dimension Filtering Area (m²) Nominal Air Delivery (m³/h) Initial Pressure Drop (Pa)
W×H×D (mm) Standard High Air Volume Standard High Air Volume F8 H10 H13 H14
230*230*110 0.8 1.4 110 180

≤110

≤180

≤220

≤250
320*320*220 4.1 6.1 500 525
484*484*220 9.6 14.4 1000 1500
315*630*220 8.1 12.1 750 1200
630*630*220 16.5 24.7 1500 2250
945*630*220 24.9 37.3 2200 3300
1260*630*220 33.4 50.1 3000 4500
305*305*150 2.4 3.6 250 375
305*610*150 5 7.5 500 750
610*610*150 10.2 15.3 1000 1500
915*610*150 15.4 23.1 1500 2250
1220*610*150 20.6 30.9 2000 3000
305*610*292 10.1 15.1 1000 1500
610*610*292 20.9 31.3 2000

3000

Features

  • Filter efficiency grade F8-H13 is available

  • H13-the filtration efficiency of the particle with or greater than 0.3µm is above 99.99%

  • H10-the filtration efficiency of the particle with or greater than 0.5µm is over 95%

  • F8-the filtration efficiency of the particle with or greater than 1.0µm is over 80%

  • Special glass fiber filter paper featuring high efficiency, low resistance, large dust holding capacity, uniform wind speed is selected as filter material

  • Separated by special aluminum foil or paper spacer

  • It can be equipped with double-sided protection net to protect filter material with good strength

Applications

  • Clean room fresh air air conditioning system, dust free workshop air outlet final filtration

  • FFU and other air purification equipment air supply main filtration

  • Widely used in electronics, optics, semiconductors, surface treatment, coating, chemical, bio-pharmaceutical, hospital, automotive industry, etc.

  • Merchant and household air purifier final filtration

  • Central air conditioning and integrated air supply system to protect the high efficiency filter in the system and the system itself
