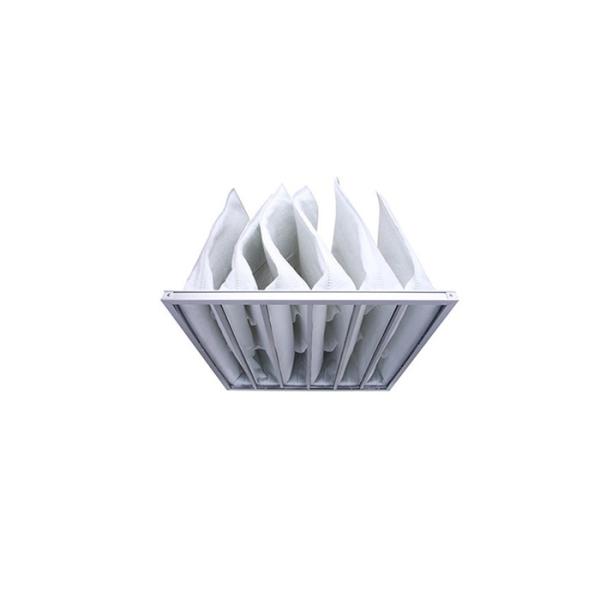

6 Pockets Air Handling Unit Filter 5 Micron Filter For AHU
6 Pockets Air Handling Unit Filter 5 Micron Filter For AHU
6 Pockets Air Handling Unit Filter 5 Micron Filter For AHU
6 Pockets Air Handling Unit Filter 5 Micron Filter For AHU
6 Pockets Air Handling Unit Filter 5 Micron Filter For AHU
6 Pockets Air Handling Unit Filter 5 Micron Filter For AHU
6 Pockets Air Handling Unit Filter 5 Micron Filter For AHU
6 Pockets Air Handling Unit Filter 5 Micron Filter For AHU
Specifications
Brand Name :
RS
Model Number :
DL
Place of Origin :
China
MOQ :
10 Pic
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
One piece in a plastic bag,then in a carton(according to the size of the products) ，or According to customers' requirement
Filtration Grade :
Medium Filter
Efficiency :
98% F5-F8
Porosity :
0.5um
Medium Material :
Synthetic Fiber/Glass Fiber
Max. Running Temperature :
70℃
Weight :
5-8Kg
Frame :
ABS plastic
Final resistance :
100-250Pa
Initial pressure drop(Pa): :
≤80
Construction :
Bag Filter
Dimension(L*W*H) :
Customized Size
Description

HVAC Air Handling Unit filter Pocket Ahu Bag Filter air filter

Product description

Each filter bag is made of ultra-fine synthetic fibers in a special weave process to avoid the discomfort that traditional glass fiber material may cause to the human body. The filter media contains electrostatic fibers, which are particularly excellent in the filtration of sub-micron dust particles. Therefore, the bag filter has the characteristics of high dust capture rate, high air permeability, and long service life.

The four sides of the filter bag are fused by ultrasonic and each filter bag is separated by a metal strip, which not only increases the strength, but also prevents the filter bag from breaking due to the wind-cut friction under high wind velocity condition.

Each filter bag has six separators evenly distributed in the bag in case of over-expansion and mutual obstruction when under wind pressure. This structure increases the effective filter area and filtration efficiency.

Frame Aluminum/galvanized plate
Media non-woven /synthetic fiber/
glassfiber/carbon fiber
Pocket qty 3P/5P/6P/8P
Efficiency En779 G3-F9, ASHRAE Merv5-15
Size Customization
Filter Rating 1um-5um
Feature 1. Antibactial and odor removing
2. Breathable
3. Large dust holding capacity
4. Reusable and long life time
5. Stronger structure
Application 1. heavy and metal industry
2. Chemical plants
3. Pharmaceutical and food industry
4. Gas trubo and Co-generation utility plants
5. Paint spray plants
6. HVAC,FFU,AHU
7. Clean room MAU
8. Commerial&Industry ventilation system
Operating temperature Max 80℃ (180℉)

Class (EN779) Dimension pockets Rated Air Flow(m³/h) Initial Pressure drop(Pa) Efficiency
(width*height*depth) (%)
F5(White) 595*595*600 6 3200 50 40-50
595*595*600 5 2700
595*495*600 6 2500
495*295*600 6 1600
495*295*600 4 1300
F6(Green) 595*595*600 6 3200 55 60-70
595*595*600 5 2700
595*595*600 6 2500
495*295*600 6 1600
495*295*600 4 1300
F7(Pick) 595*595*600 10 3200 110 80-85
595*595*600 8 3000
595*495*600 10 2700
495*295*600 10 1600
495*295*600 8 1300
F8(Yellow) 595*595*600 10 3200 120 90-95
595*595*600 8 3000
595*495*600 10 2700
495*295*600 10 1600
495*295*600 8 1300

6 Pockets Air Handling Unit Filter 5 Micron Filter For AHU6 Pockets Air Handling Unit Filter 5 Micron Filter For AHU6 Pockets Air Handling Unit Filter 5 Micron Filter For AHU
