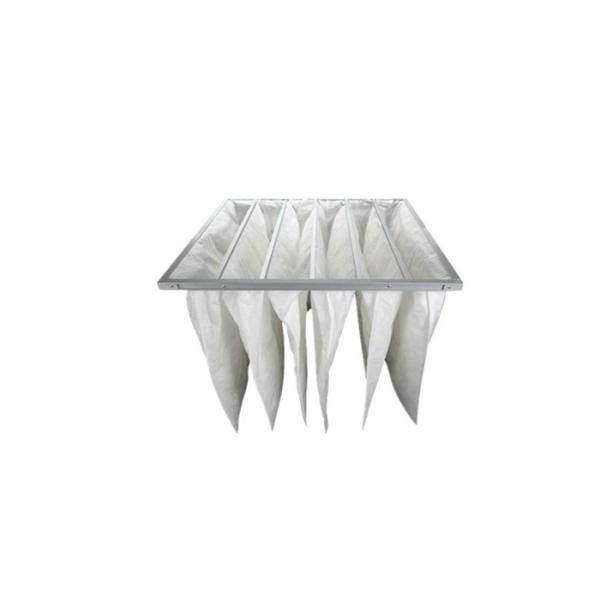

3 4 5 Pocket Air Filter Pocket F7 F8 100-250Pa Final Resistance
3 4 5 Pocket Air Filter Pocket F7 F8 100-250Pa Final Resistance
3 4 5 Pocket Air Filter Pocket F7 F8 100-250Pa Final Resistance
3 4 5 Pocket Air Filter Pocket F7 F8 100-250Pa Final Resistance
3 4 5 Pocket Air Filter Pocket F7 F8 100-250Pa Final Resistance
3 4 5 Pocket Air Filter Pocket F7 F8 100-250Pa Final Resistance
3 4 5 Pocket Air Filter Pocket F7 F8 100-250Pa Final Resistance
3 4 5 Pocket Air Filter Pocket F7 F8 100-250Pa Final Resistance
Specifications
Brand Name :
RS
Model Number :
DL
Place of Origin :
China
MOQ :
10 Pic
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
1000 Piece/Pieces per Month
Delivery Time :
5-8 work days
Packaging Details :
One piece in a plastic bag,then in a carton(according to the size of the products) ，or According to customers' requirement
Filtration Grade :
Medium Filter
Efficiency :
98% F5-F8
Porosity :
0.5um
Medium Material :
Synthetic Fiber/Glass Fiber
Max. Running Temperature :
70℃
Weight :
5-8Kg
Frame :
ABS plastic
Final resistance :
100-250Pa
Initial pressure drop(Pa): :
≤80
Construction :
Bag Filter
Dimension(L*W*H) :
Customized Size
Description

F7 F8 F9 Large Air Flow Filter Pocket-Type Air Filter For Heavy Dust Air Conditioning Bag Filter

Model NO. Actual Size
HxWxD (mm)

Air Flow

(m³/h)

 Media Area
Flow (m²)

Velocity

(m/s)

 Efficiency Pocket.
Numbers
DL8-001 287*287*381 600 0.89 2.02 F5-F9 3
DL8-002 592*592*381 2050 3.18 1.62 F5-F9 6
DL8-003 287*592*500 1350 2.10 2.21 F5-F9 3
DL8-004 287*592*500 1750 2.68 2.86 F5-F9 4
DL8-005 490*592*500 2250 3.48 2.15 F5-F9 5
DL8-006 592*592*500 2700 4.17 2.14 F5-F9 6
DL8-007 592*592*500 3500 5.37 2.77 F5-F9 8
DL8-008 592*592*500 4250 6.56 3.37 F5-F9 10

Product Description

Material And Operation Conditions

Efficiency: F5 / F6 / F7 / F8 / F9

Media: Synthetic fiber

Pocket type: Ultrasonic bag/Sewing bag

Optional thickness: Aluminum / GI: 21, 25, 46 Plastic: 25

Max Temperature: 50℃

Max Humidity: 100%

Feature:

Large dust holding capacity and stable performance

Washable (Limited)

Large air volume, low resistance and high efficiency

Long lifespan

100% factory inspection

”V” type pocket structure, economy and high performance cost

Application

Widely used in ventilation, air conditioning systems, precision instruments manufacturing plant, electronics factory, pharmaceutical workshop and other places.
