1.25 Inch Plastic Air Blower Pressure Relief Valve For The Emergency Discharge Of Pressurised Fluids
1.25 Inch Plastic Air Blower Pressure Relief Valve For The Emergency Discharge Of Pressurised Fluids
Specifications
Brand Name :
Air Power
Model Number :
RV-01
Certification :
CE ISO CCC
Place of Origin :
China
MOQ :
1 pc
Payment Terms :
T/T
Supply Ability :
100 pc / day
Delivery Time :
within 10 days
Packaging Details :
against the order
Description

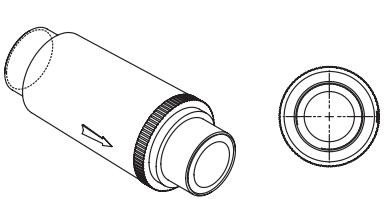

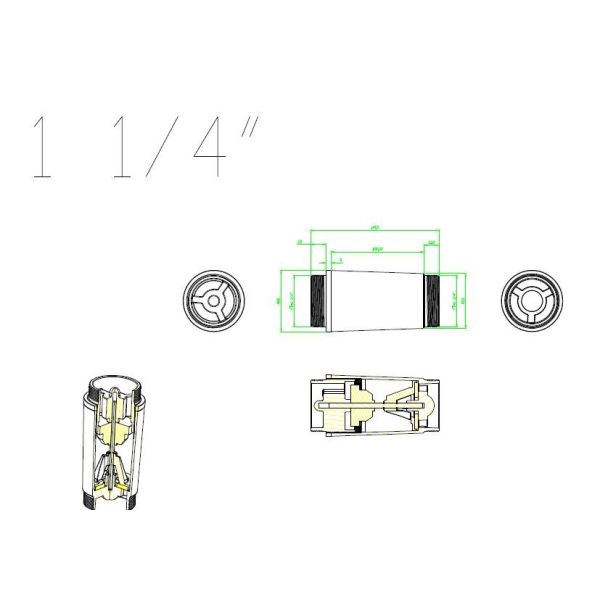

1.25 Inch Plastic Air Blower Pressure Relief Valve For The Emergency Discharge Of Pressurised Fluids

A safety valve is an accessory which protects pressursed equipments from the overtaking of an admitted pressure limit, being therefore, a device for the emergency discharge of pressurised fluids, that enters in action automatically when a set pressure is reached (valve set pressure)

The price is just for RV-01A 0~300BAR

1.25 Inch Plastic Air Blower Pressure Relief Valve For The Emergency Discharge Of Pressurised Fluids1.25 Inch Plastic Air Blower Pressure Relief Valve For The Emergency Discharge Of Pressurised Fluids

VALVE SETTING PROCEDURE:

Use a manometer / in-line pressure gauge,

1 - Start up the blower.

2 - Gradually close the out-let side till reaching the maximum working point of the blower (mbar),

at this point the valve should complete its opening and keep a constant pressure.

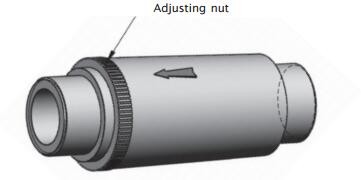

3 - Set the valve by using the ring nut (once you reach the correct position, fasten the ring nut).

ALTERNATIVELY

USE AN AMPEROMETRIC PLIER ,

1 - Start up the blower.

2 - Gradually close the out-let side till reaching the maximum working point of the blower (Amp),

at this point the valve should complete its opening and keep a constant pressure.

3 - Set the valve by using the ring nut (once you reach the correct position, fasten the ring nut).

position, fasten the ring nut).

1.25 Inch Plastic Air Blower Pressure Relief Valve For The Emergency Discharge Of Pressurised Fluids
