Specifications
Brand Name :
KELING
Model Number :
KEL-GS002
Certification :
CE
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
800 Sets per month
Delivery Time :
7-15 working days for sample order
Packaging Details :
Polywood Pallet Box Packing
Name :
Garment Storage Cabinets
Material :
stainless steel 304
External size (mm) (W*D*H) :
900X500X1800
Work zone (mm) (W*D*H) :
800X400X1300
Air speed :
0.45m/s +_20%
Differential gauge :
Dwyer brand Guage (1 pcs )
Other name :
Clean Room Garment Cabinet
Application :
clean room
Description

Clean Room Garment Storage Cabinets/Sterile Garment Storage For Hospital

Clean Room Garment Storage Cabinets Introduction:


Laminar flow cabinets feature a quiet, direct drive, variable-speed blower mounted above a HEPA filter, rated 99.99% efficient at removing particles 0.3μm and larger. This KELING blower/filter module delivers up to 120 linear feet/minute (0.61 m/s) of Class 10 air, a continuous downstream that blocks the inrush of contaminants into the storage area and helps to keep garments and other materials particle-free. An air outlet located at the bottom of the storage area discharges air along with any contaminants that may have entered the cabinet. All blower/filter components (including fiberglass pre-filters) are easily accessible through a swing-up front panel. This compartment can be used as storage for cabinets without a blower/filter module.


Clean Room Garment Storage Cabinets Features:


1. Versatile storage cabinets provide optimal storage space for cleanroom garments, tools, wipes, process equipment, and other materials
2. Choose the configuration for your requirements:
3. Garment rack (holds up to 30 garments)
4. Adjustable shelves
5. Combination garment rack/shelves
6. Mirrored door
7. Models available with HEPA filter/blower unit that removes 99.99% of all contaminants 0.3 microns and larger
8. Solid and perforated shelves available. Perforations reduce obstructions to laminar air flow
9. Chrome-plated hardware, nonshedding materials ensure cleanroom compatibility
10. Double doors with self-closing hinges allow easy access with minimal clearance requirement
11. Available with Static-Dissipative PVC front panels for optimal cleanliness and static safety

Clean Room Garment Storage Cabinets Specification:

MODEL KEL-LFG800 KEL-LFG900 KEL-LFG1000

External size (mm)

(W*D*H)

800X500X1800 900X500X1800 1000X500X1800

Work zone (mm)

(W*D*H)

700X400X1300 800X400X1300 900X400X1300
Air speed 0.45m/s +_20%
Purification rank ISO5(Class A)
Control system

LED Control board function

1: Power on/ off

2: Air speed up and down

3: purification light and UV light control

Material Stainless steel304 (t=1.2mm)
Differential gauge Dwyer brand Guage (1 pcs )
Hepa filter Mini-pleats HEPA filter 99.99%@0.3um
Per-filter Pleats panel filter (75%@2um(
UV light 1 pcs
Noise 65dB
Illumination >300lux
Power 0.5kw 0.7kw 0.9kw

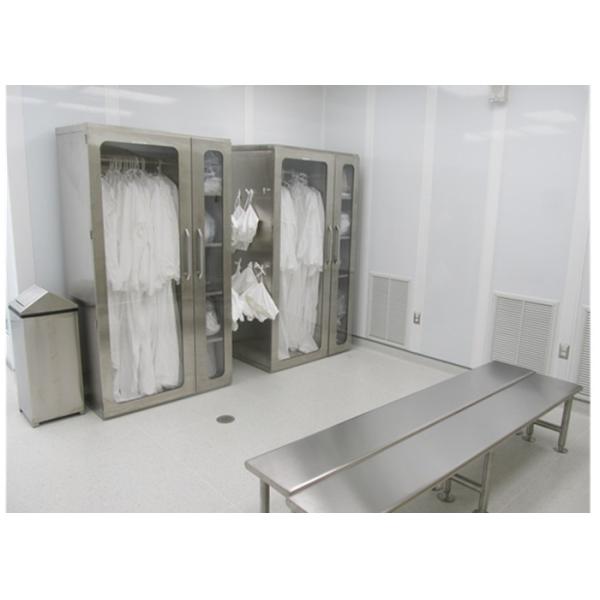

Stainless Steel 304 Sterile Garment Storage Cabinet For Hospital Clean Room

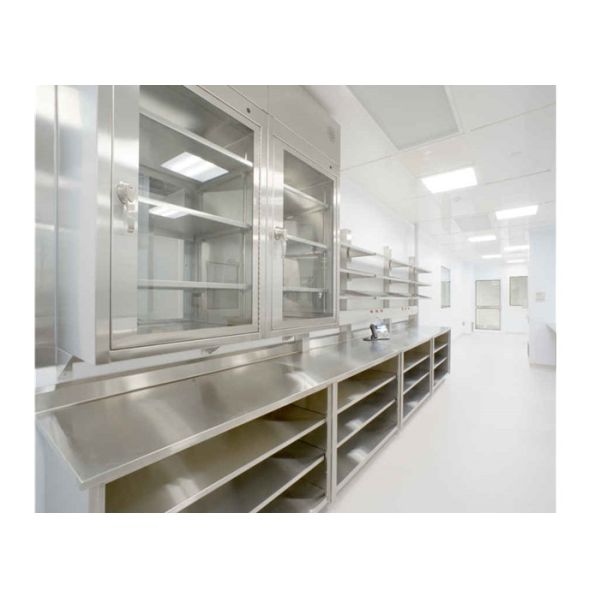

Stainless Steel 304 Sterile Garment Storage Cabinet For Hospital Clean Room

Stainless Steel 304 Sterile Garment Storage Cabinet For Hospital Clean Room
