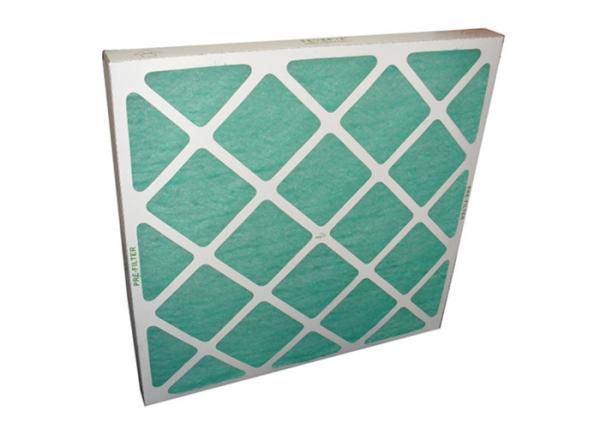

High Efficiency G1 - G4 Panel Primary Filter For Air Condition HVAC System
High Efficiency G1 - G4 Panel Primary Filter For Air Condition HVAC System
High Efficiency G1 - G4 Panel Primary Filter For Air Condition HVAC System
High Efficiency G1 - G4 Panel Primary Filter For Air Condition HVAC System
Specifications
Brand Name :
KELING
Model Number :
KEL-PF001
Certification :
SGS
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
7-15 working days for sample order
Packaging Details :
Standard carton and Polywood packing
Name :
Panel Primary Filter
Dimension :
592X592X46mm
Air Flow :
2600m³/h
Media Area :
0.97 sq.m
Dust Holding :
110g
Efficiency :
G1
Description

High Efficiency G1-G4 Panel Primary Filter For Air Condition HVAC System

Panel Primary Filters are available in standard and non-standard sizes with efficiencies of G3 for the 8-10mm Filter to G4 for the 20-25mm filter and are suitable for all residential and commercial applications.
The Panel Primary Filters are suited to non-critical applications or as a pre-filter to extend the life of the secondary filter.

Panel Primary Filter Features:


1.Heavy Duty, 1mm Gal Construction
2.Mitred Corners
3.Aluminium Version Available
4.Washable & Reusable
5.Standard and Special Sizes are Available


Panel Primary Filter Applications:

1.The panel filter is well suited to be as the pre-filter for the air intake system and exhaust system of the air handling units.
2.The panel filter is also well suited to be as the pre-filter of the fine filters in the purification venti- lation system.
3.Pre-filtration for HVAC(Heating, Ventilation and Conditioning) applications
4.Pre-filter for medium and high-efficiency filter
5.Pre filter for air conditioner and ventilation system.
6.Pre filter for large air compressor.
7.Pre filter for high efficiency filtration equipment.

Panel Primary Filter Specification:

Customer Size is Available.

Dimension

(W*H*D)

(mm)

Rate air flow

(m3/h)

 Media area (m2) dust containing capacity

Initial Resistance

(pa)

Finally resistance

(pa)

 Efficiency
592x592x46 2600 0.97 110

<25-45pa

100-200pa

G4
130
160
200
592x490x46 2200 0.81 98
110
130
160
592x287x46 1300 0.48 50
60
80
100
490x592x46 2300 0.86 100
110
140
170
490x490x46 1900 0.71 80
95
115
145
287x592x46 1400 0.52 60
70
80
100

High Efficiency G1 - G4 Panel Primary Filter For Air Condition HVAC System

High Efficiency G1 - G4 Panel Primary Filter For Air Condition HVAC System
