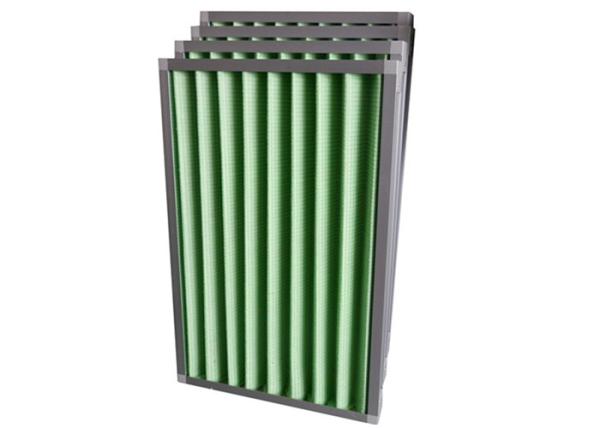

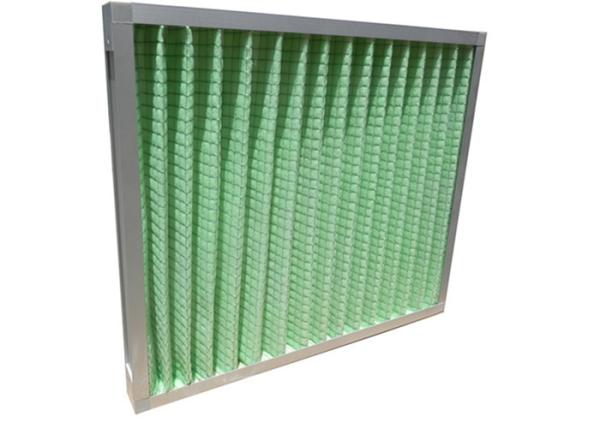

Aluminum Frame G1 - G4 Pleated Primary Filter For Air Conditioning System
Aluminum Frame G1 - G4 Pleated Primary Filter For Air Conditioning System
Aluminum Frame G1 - G4 Pleated Primary Filter For Air Conditioning System
Aluminum Frame G1 - G4 Pleated Primary Filter For Air Conditioning System
Specifications
Brand Name :
KELING
Model Number :
KEL-PPA007
Certification :
SGS
Place of Origin :
China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
7-15 working days for sample order
Packaging Details :
Standard carton and Polywood packing
Name :
Pleated Primary Filter
Size :
490x592x46mm
Air Flow :
2300m³/h
Media Area :
0.86 sq.m
Dust Holding :
170g
Efficiency :
G4
Description

Aluminum Frame G1-G4 Pleated Primary Filter For Air Conditioning System

The Pleated Panel Air Filter is a medium efficiency disposable air filter, suitable for ventilation and air conditioning systems which require a higher efficiency and greater dust holding capacity than can be achieved with glass or synthetic panels.

The G4 Pleated Panel Air Filter can be used where glass panels are undesirable, such as in the food industry and hospitals.

Typically G4 Pleated Panel Air Filters are used as pre-filters on supply air systems to High Performance Bag Filters, or to protect heating or cooling coils from dust build up which leads to system inefficiency. Another common place to see a G4 Pleated Panel Air Filter is to protect fans in extract systems for office blocks or kitchen extract systems.

Pleated Primary Filter Feature:


1.Low initial resistance for energy savings
2.Uniform pleat shape holds more dirt
3.Wide selection of sizes available

Pleated Primary Filter Application:


1.Pre-filtration for HVAC(Heating, Ventilation and Conditioning) applications.
2.Pre-filter for medium and high-efficiency filter.
3.Pre filter for air conditioner and ventilation system.
4.Pre filter for large air compressor.
5.Pre filter for high efficiency filtration equipment.

Pleated Primary Filter Specification:

Customer Size is Available.

Dimension

(W*H*D)

(mm)

Rate air flow

(m3/h)

 Media area (m2) dust containing capacity

Initial Resistance

(pa)

Finally resistance

(pa)

 Efficiency
592x592x46 2600 0.97 110

<25-45pa

100-200pa

G4
130
160
200
592x490x46 2200 0.81 98
110
130
160
592x287x46 1300 0.48 50
60
80
100
490x592x46 2300 0.86 100
110
140
170
490x490x46 1900 0.71 80
95
115
145
287x592x46 1400 0.52 60
70
80
100
